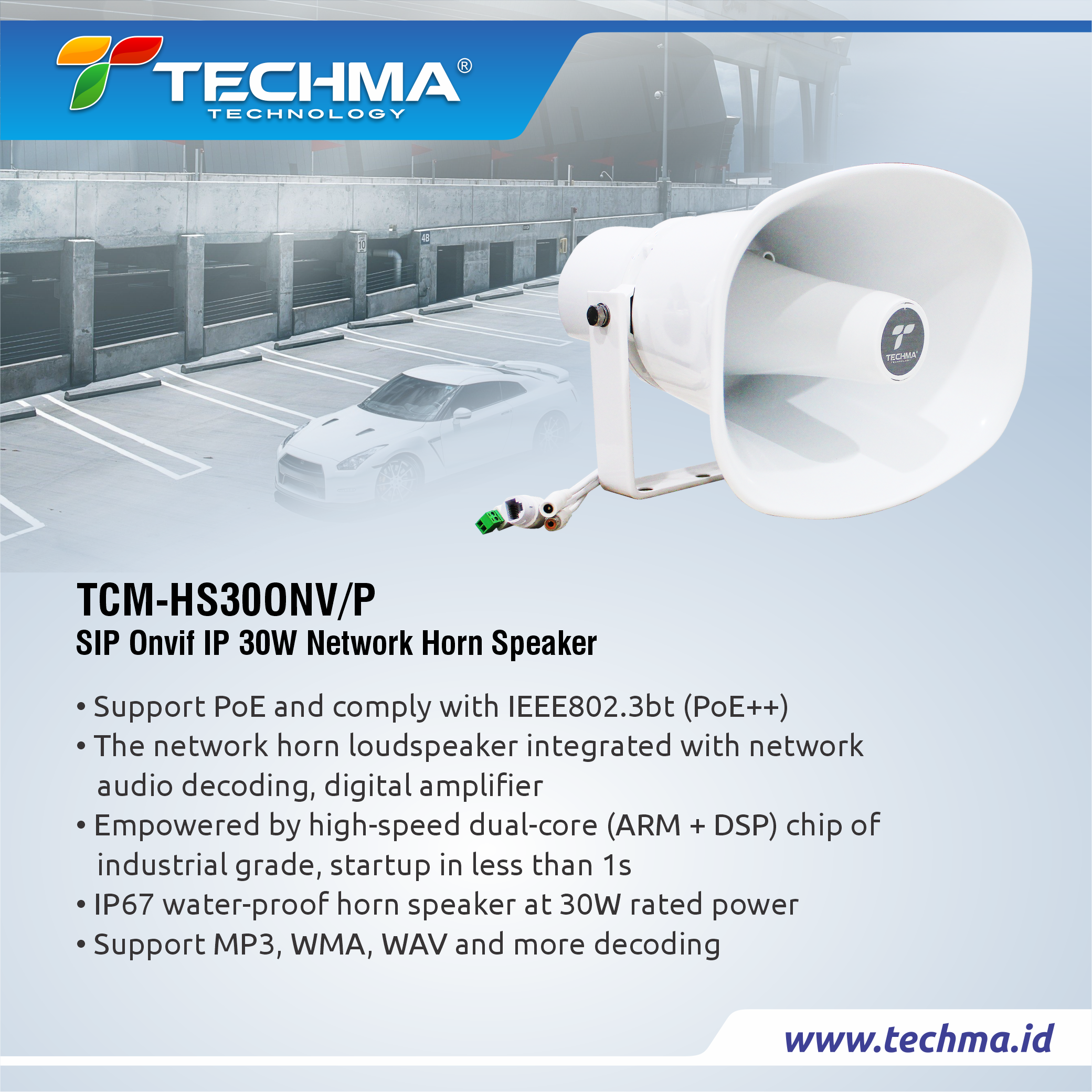

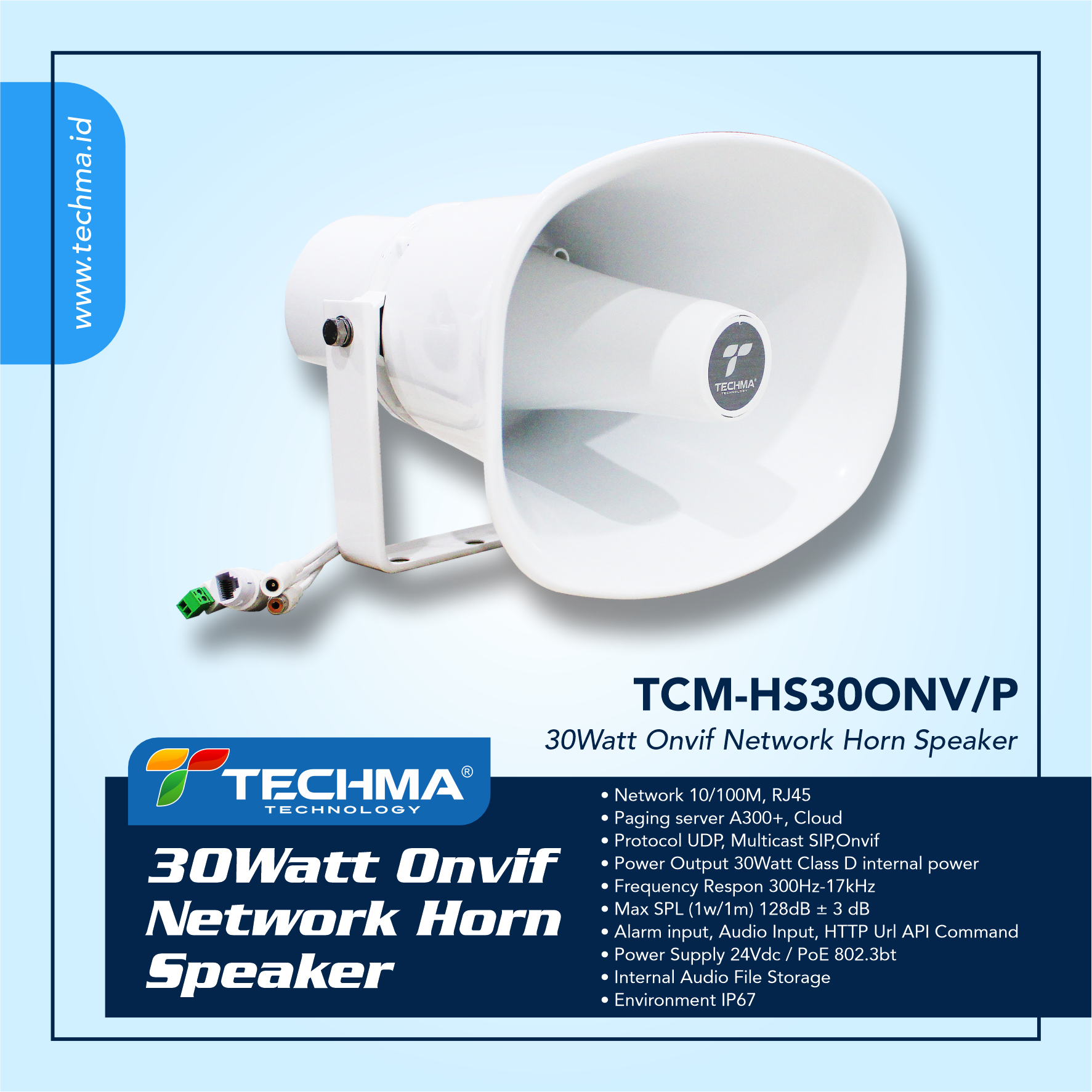

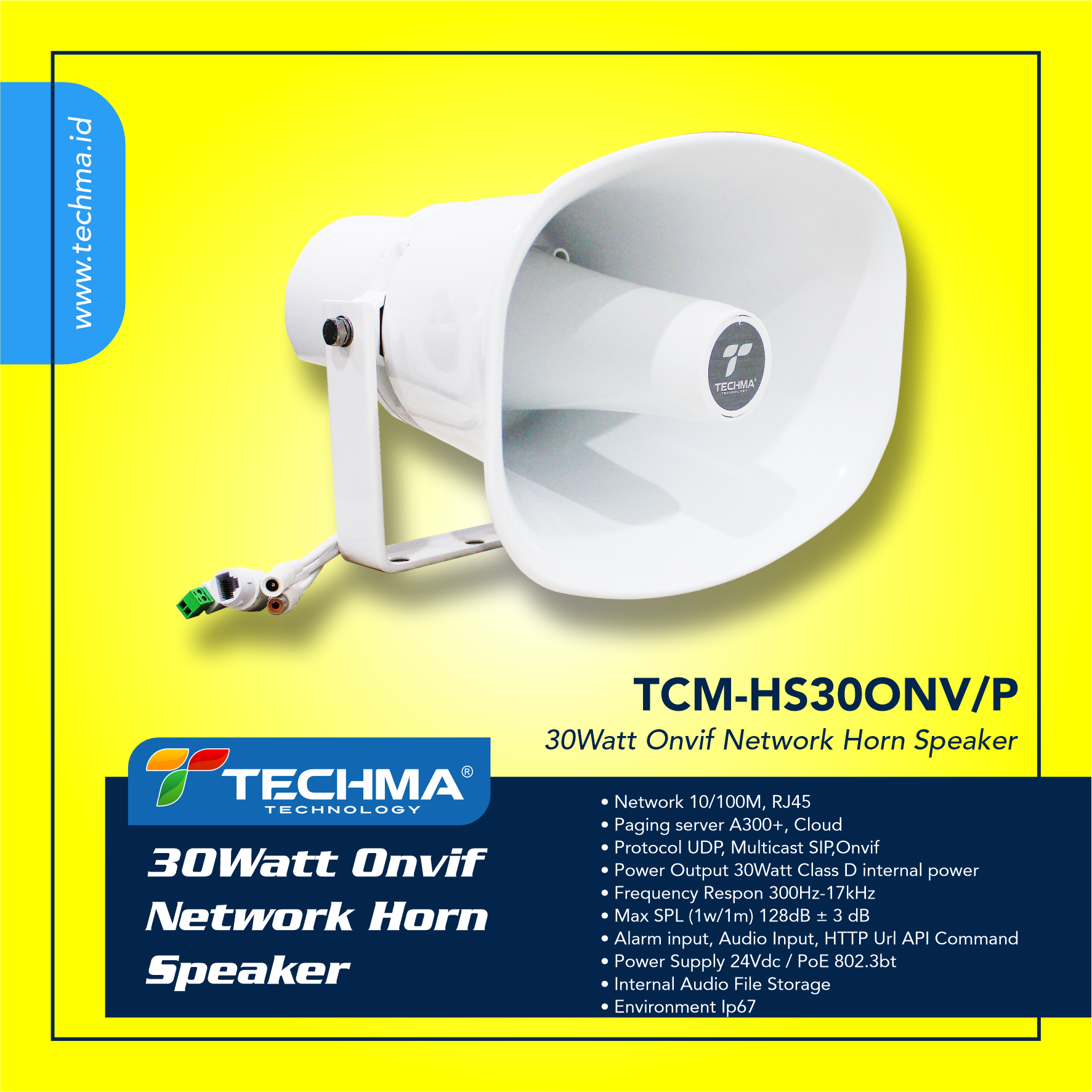

TCM-HS30ONV/P 30W Onvif Horn IP Speaker
Description
The IP Horn Speaker TCM-HS30ONV/P is nice looking with flat shape design. It’s perfect to install in outdoor enviroment due to IP66 waterproof design. It’s compatible with VoIP SIP devices and ONVIF VMS/NVR. It also supports pre-recorded messages, HTTP API. 48K OPUS Audio Codec ensures excellent sound quality. PoE eliminates need for local power supply.
Features
- Network 10/100M, RJ45
- Paging server A300+, Cloud
- Protocol UDP, Multicast SIP, Onvif
- Power Output 30Watt Class D internal power
- Frequency Respon 300Hz-17kHz
- Max SPL (1w/1m) 128dB ± 3 dB
- Alarm input, Audio Input, HTTP Url API Command
- Power Supply 24Vdc/PoE 802.3bt
- Internal Audio File Storage
- Environment IP66
Spesification
Specification:
| Model | TCM-HS30ONV/P |
|---|---|
| Audio Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Built-in Microphone | Yes |
| Max SPL | 128dB |
| Frequency Response | 350Hz~8KHz |
| Frequency Range | 500-2KHZ +-10dB, 400-12KHZ +-20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| Security | Password protection, IP address filtering, Digest authentication, User access log, firewall |
| Network Protocal | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support for SIP protocol for intergration with VoIP systems, intergrated with SIP/PBX 2 SIP Accounts, |
| SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA | |
| Amplifier Description | Built-in 30W Amplifier |
| Operating Temperature | -30 +60 |
| Operating humidity | 5%-85% |
| Material | ABS IP67 water-proof |
| Rate Power | 30W |
| Power Supply | PoE or DC 12V/24V |

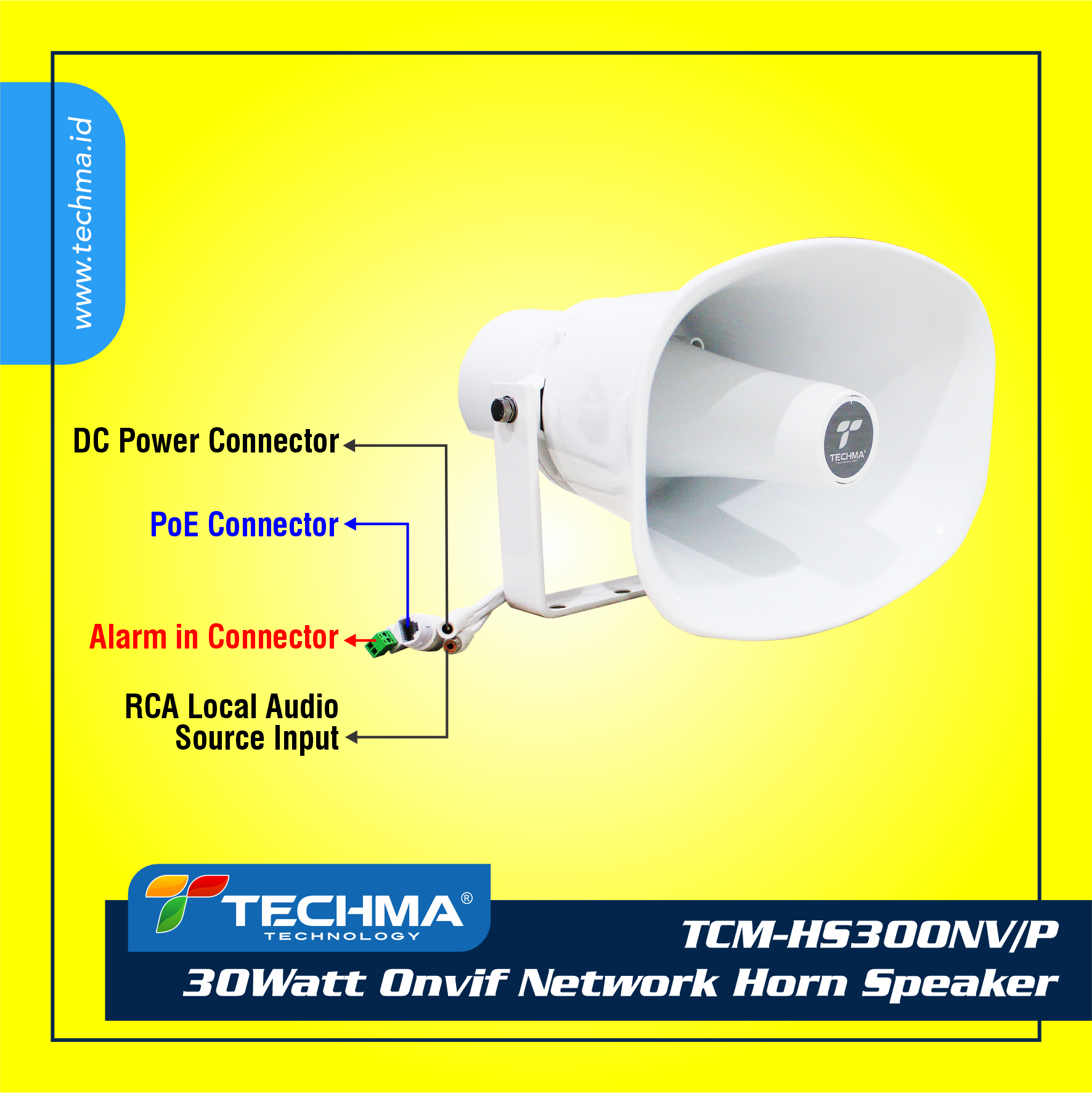

| Connector | Alarm in, Audio in, DC Power, PoE, TF Card (Optional) |
| Installation | Wall Mounted |
