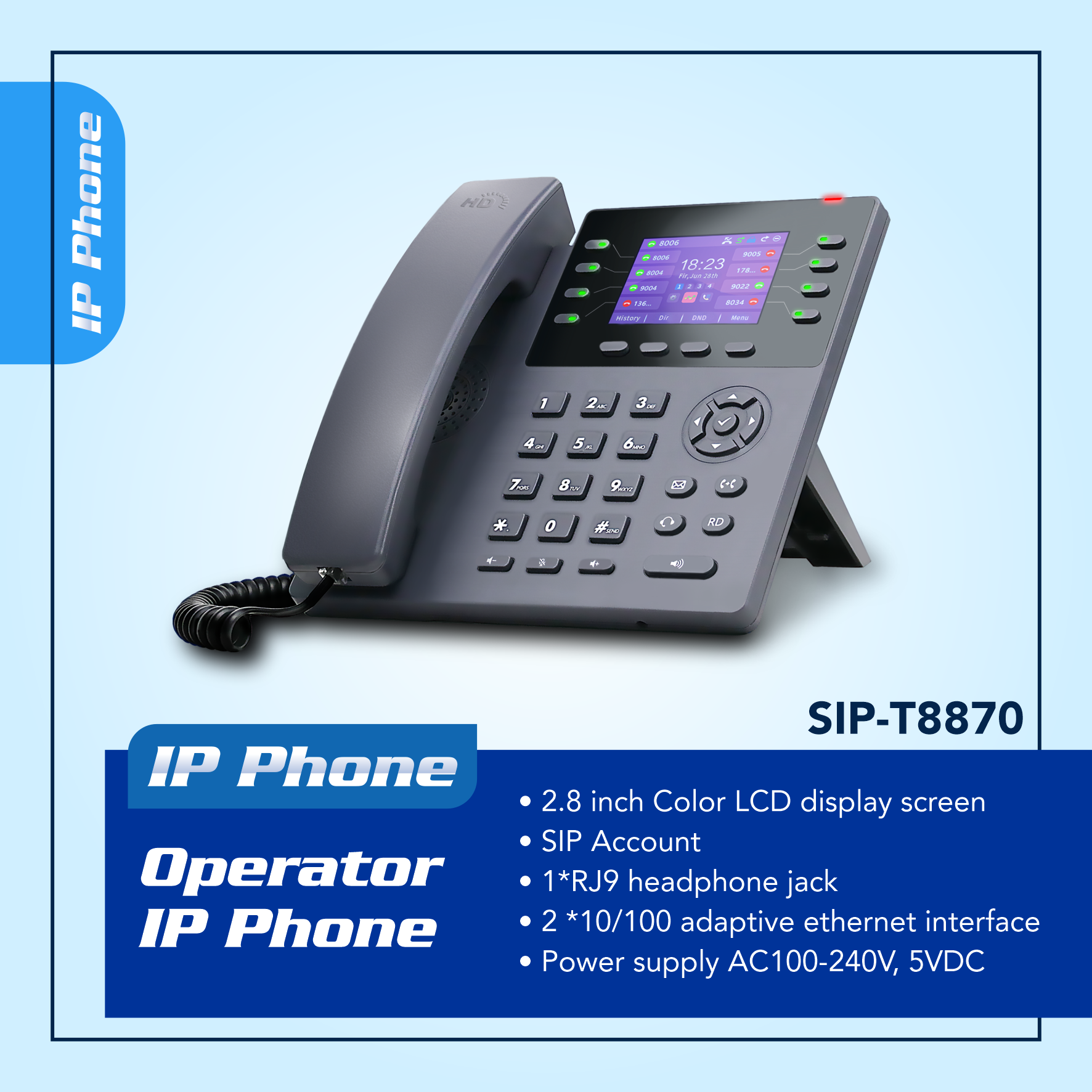

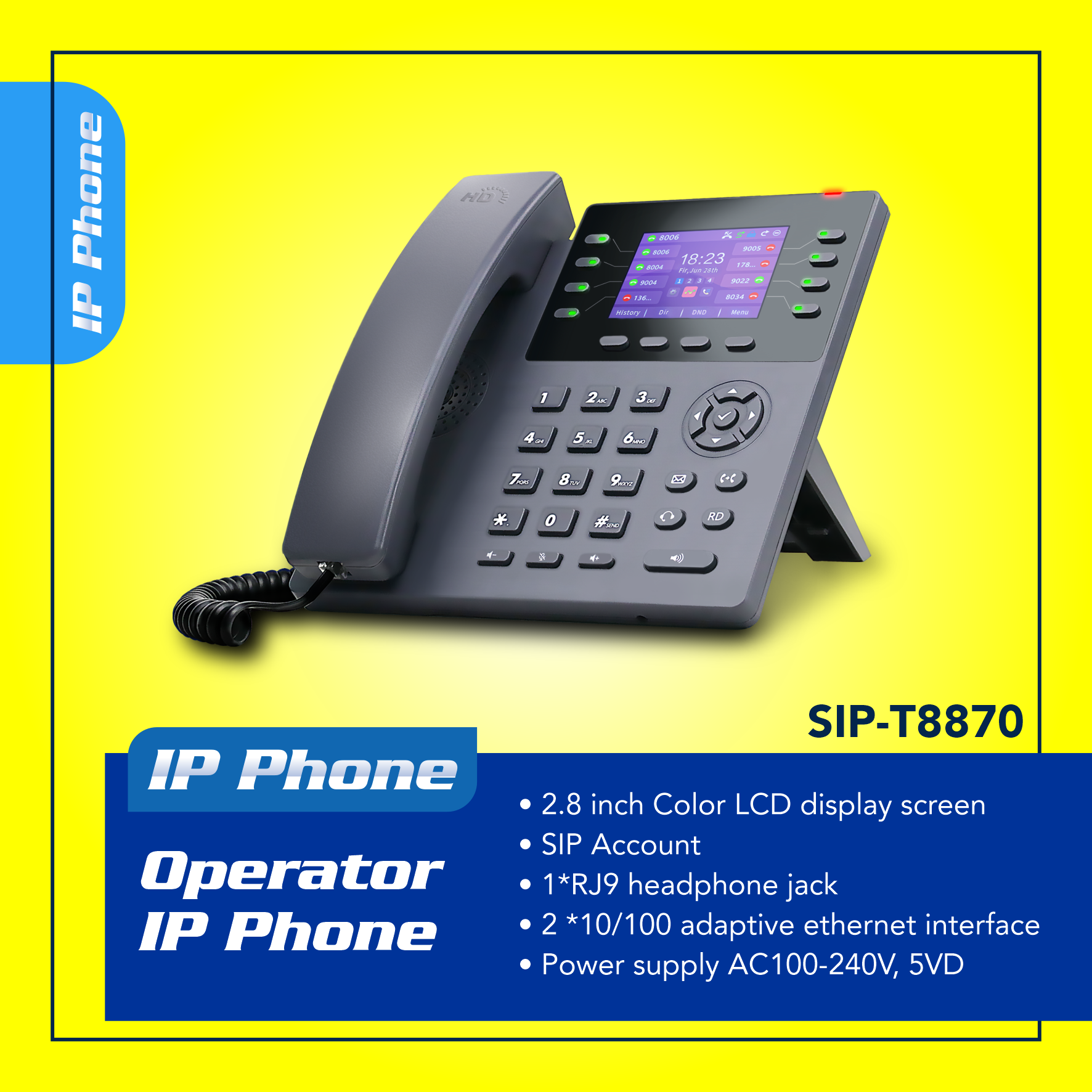

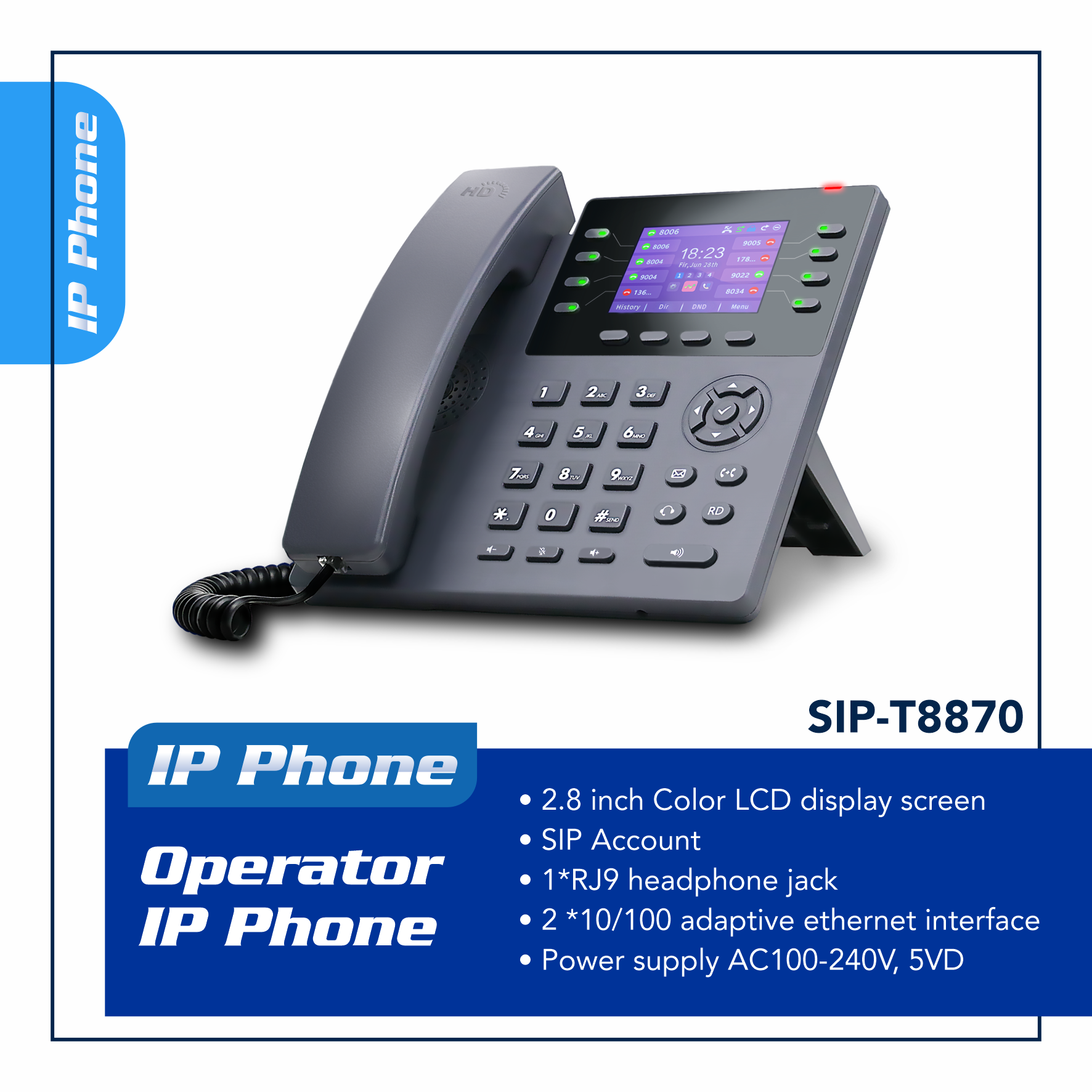

SIP-T8870 Operator IP Phone
SIP-T8870 is a new generation of enterprise-class cost-effective IP color screen phone with 4 SIP accounts, 4 lines and dual Ethernet ports. The 2.4-inch color LCD display has detailed call information and icons to enhance the visual tone of the phone.4 programmable soft keys with double lights, which greatly improves effective communication, added USB2.0 interface to support WIFI connection and phone. SIP-T8870 supports IPv6 and IPv4 protocols, and provides dual-port POE power supply and 2.4GHZ WIFI. It has a complete and secure user information network environment, supports commercial road network management platforms, and is compatible with mainstream IP PBXS. SIP-T8870 can be applied to different enterprise scenarios, greatly improving the work efficiency of enterprises.
Feature :
- 2.8 inch Color LCD display screen
- SIP Account
- 1*RJ9 headphone jack
- 2 *10/100 adaptive ethernet interface
- Power supply AC100-240V, 5VDC
Specification:
| Model | SIP-T8870 |
|---|---|
| Account | 2*SIP accounts |
| Interface | 2*10/100 adaptive Ethernet interface, optional PoE power supply |
| USB2.0 | WiFi connection, phone recording |
| Headphone | 1*RJ9 headphone jack |
| Screen | 2.4-inch black and white display with backlight |
| Power | AC100-240V, output: DC 5V |
| OS | Linux |
| Language | Support 17 languages (Simplified Chinese, Traditional Chinese, English, Turkish, Korean, Russian, French, Italian, German, Polish, Portuguese, Thai, Hindi, Arabic, Japanese, Spanish, Vietnamese) |
| Voice | High-definition voice, handle and hands-free mode support high-definition voice calls |
| Voice Coding | G.711A/u, G722, G.723 high/low, G.729 A/B, support DTMF in-band and out-of-band transmission (SIP INFO, DTMF Relay, RFC2833) |
| Protocol | Support SIP 1.0 (RFC2543), SIP 2.0 (RFC3261), IEEE 802.3/802.3 u 10 Base T/100Base TX, UDP / TCP/IP, TP, RTCP, SRTP, DHCP, PPPOE, DNS, Telnet, FTP, TFTP, HTTP, HTTPS, VAD/CNG, PPTP, L2TP, OpenVPN, SNTP, STUN |
| Functions | call hold, mute, transfer, call transfer (unconditional transfer, no answer transfer, busy transfer), multi-party conference, call waiting, personalized ringtones, address book import/download, automatic answer., it can store 500 phone numbers, 1000 call records, and 1200 all call records. support blacklist (optional); support encrypted call function. |
| Ringtone | 10 ringtones can be selected (can be added at the factory if necessary). |
| Encryption | Support soft encryption such as AES, or hard encryption with encryption chip |
| Time | Support time setting (SNTP/SIP Server acquisition/manual) |
| Network | Tr069, SNMP, can support OMC platform |
| Auto Config | TFTP, HTTP, HTTPS, PnP |
