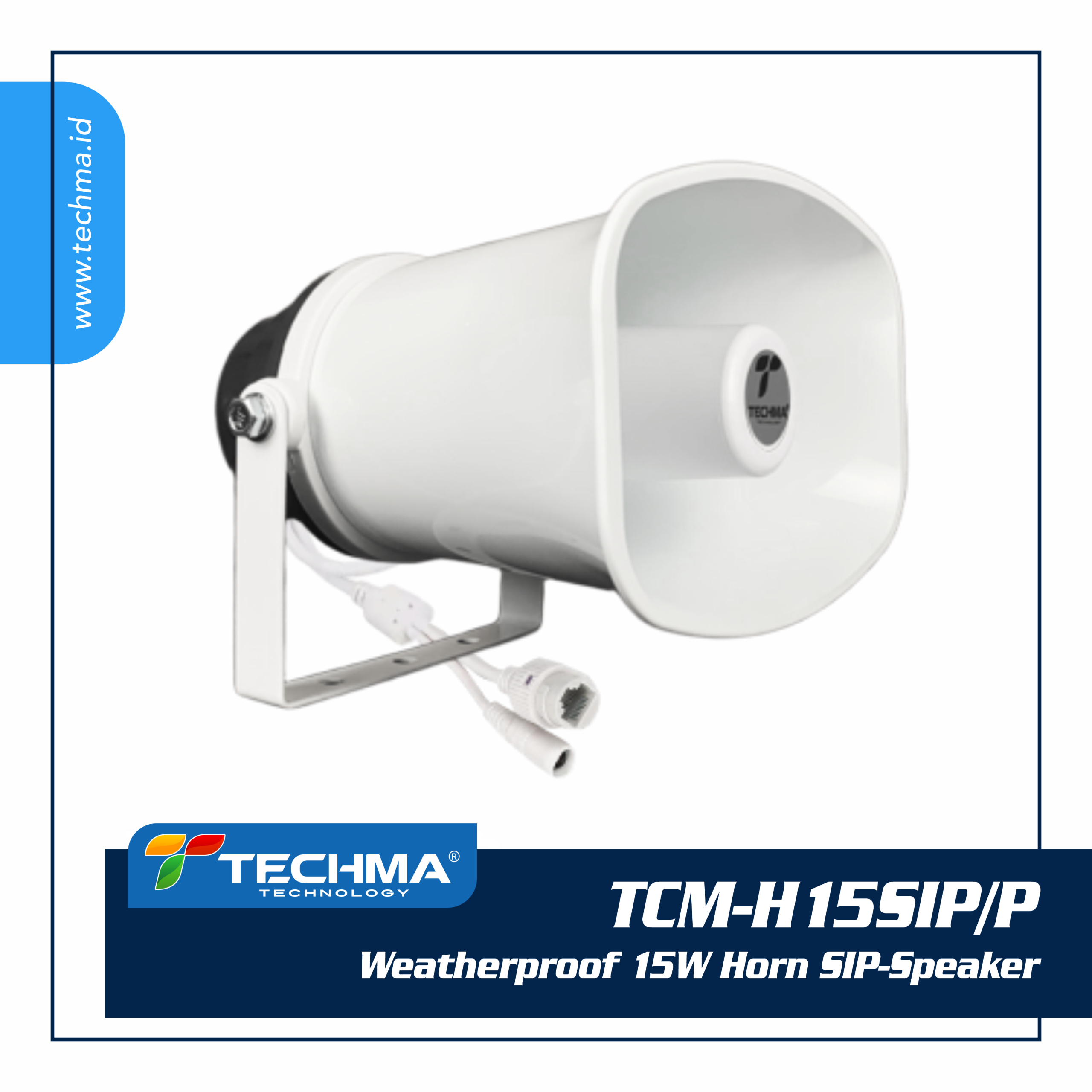

IP Speaker Techma TCM-H15SIP/P

WATERPROOF 15W HORN SIP-SPEAKER

Description

IP Speaker Techma TCM-H15SIP/P was Auto-provisioning through TCM-BGM5000+ Audio server saves time configuring, especially in the case of large-scale installations. The module can easily be integrated with 3rd party SIP systems through SIP System interface

Features

IP Speaker Techma TCM-H15SIP/P is an active weatherproof horn SIP-speaker able to connect to any SIP-server as standard SIP-client and get a phone call as standard SIP-extension. Simple installation and setup. Audio files and voice messages can be streamed live or uploaded to device to play them later or periodically from built- in timer/scheduler.

  • Network 10/100M,Rj45
  • ⁠Protocol UDP,SIP,Multicast,RTP
  • ⁠Rated Power 15 Watt
  • ⁠Max SPL 115dB (1W/1M)
  • ⁠Source PoE 802.3at / DC24V 3A
  • ⁠Dispersion angle 115o
Download PDF Price Video Solution
Spesification

Specification:

HARDWARE

Ethernet connector  10/100 TX-RJ 45
Power Options  PoE and external PS 24V DC
PoE  IEEE 802.3at
Power Consumption  Idle: 1.8W / Max: 20W (Volume dependant)
CPU  Base on ARM and DSP Architecture

NETWORKING AND PROTOCOLS

Protocols  IPv4 (with DiffServ), SIP, TCP, UDP, Multicast HTTP, RTP, DHCP, SNMP, NTP
LAN Protocols  PoE (802.3at) Network Access Control (802.1x)
Audio Management and Operation Software Broadcast Audio management Software TCM-BGM5000+
SIP Support  RFC3261 (SIP Base Standard), RFC3515 (SIP Refer), RFC2976 (SIP Info), SIP using TLS, RFC5630 SIPS Uri scheme
DTMF Support  RFC2833, 2976 (SIP Info)

OTHER SPECIFICATIONS

Input  N/A
Output  N/A
Microphone  N/A

SPEAKER SPECIFICATION

Speaker Driver  Horn Type
Rated Power  15 Watt RMS
Impedance  8Ω
SPL (1W/1M)  110dB ± 3dB
MAX SPL (Rated W/1M)  105dB
Frequency range (-10dB)  300Hz to 13kHz
Operating temperature  -30°C to + 70°C
Power Selection  PoE / 24V DC
Material  Baffle ABS and Aluminium
Colour and Finish  White
Protection  Ip67
Net Weight  2,5Kg
Mounting  Mounting Bracket and Screws
