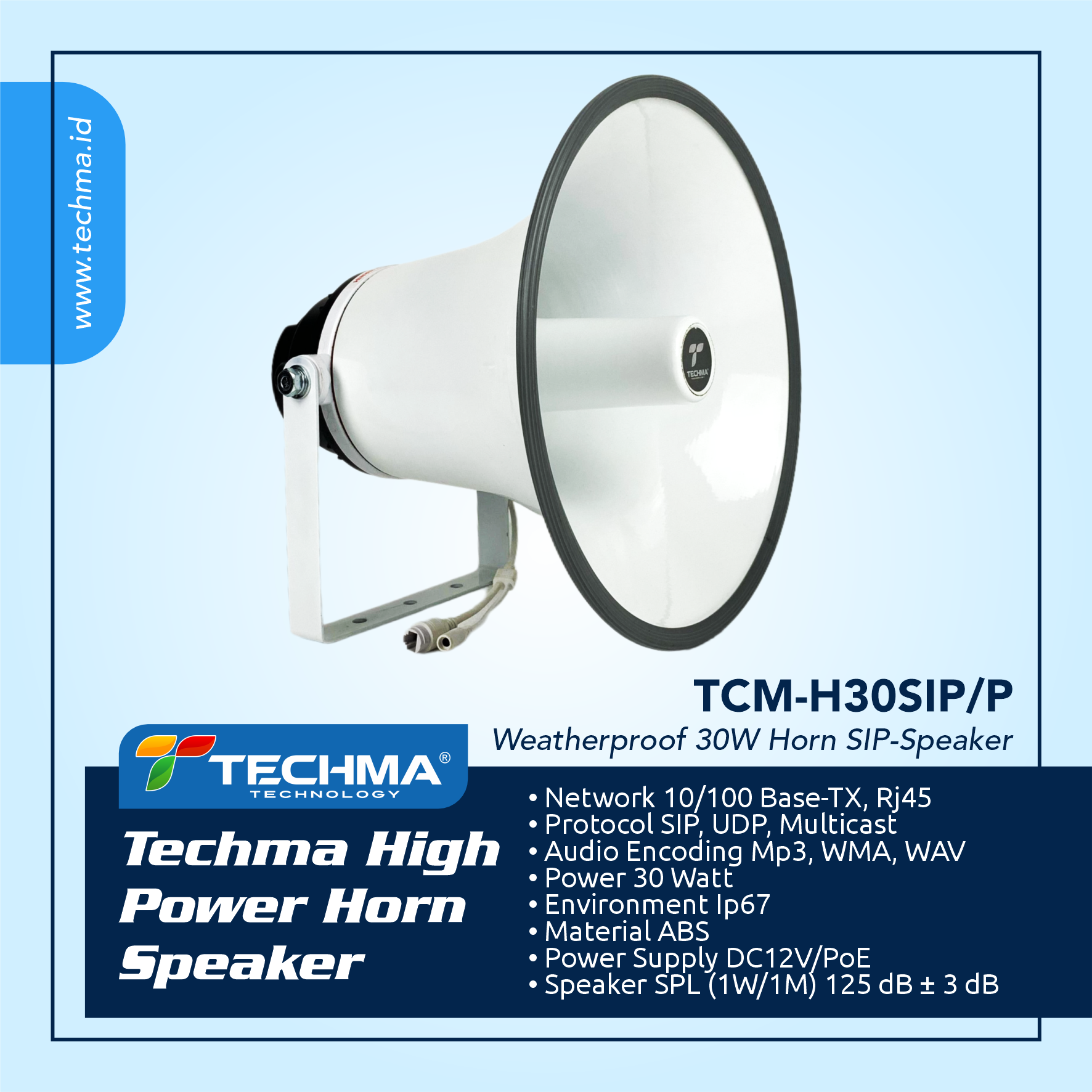

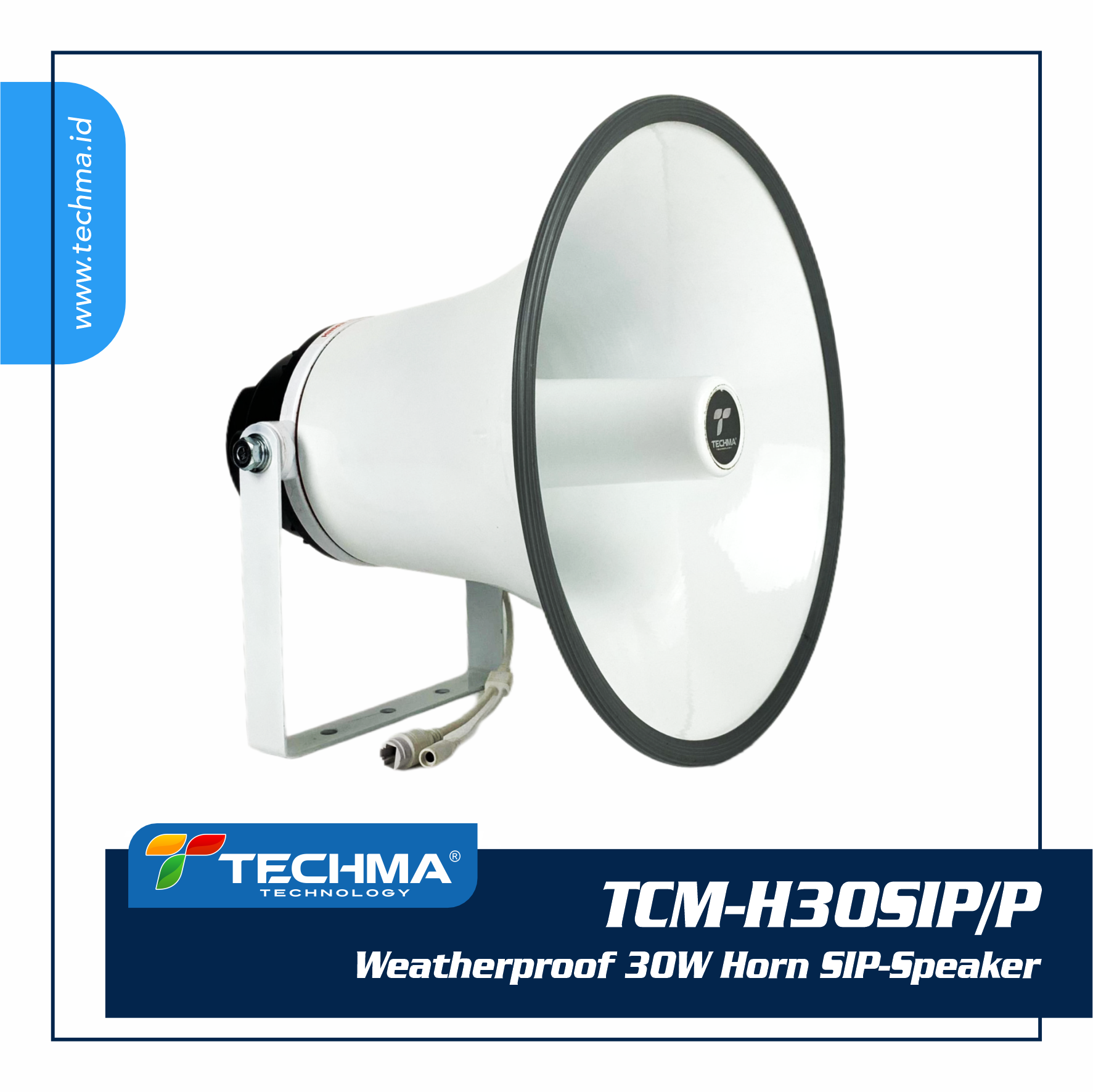

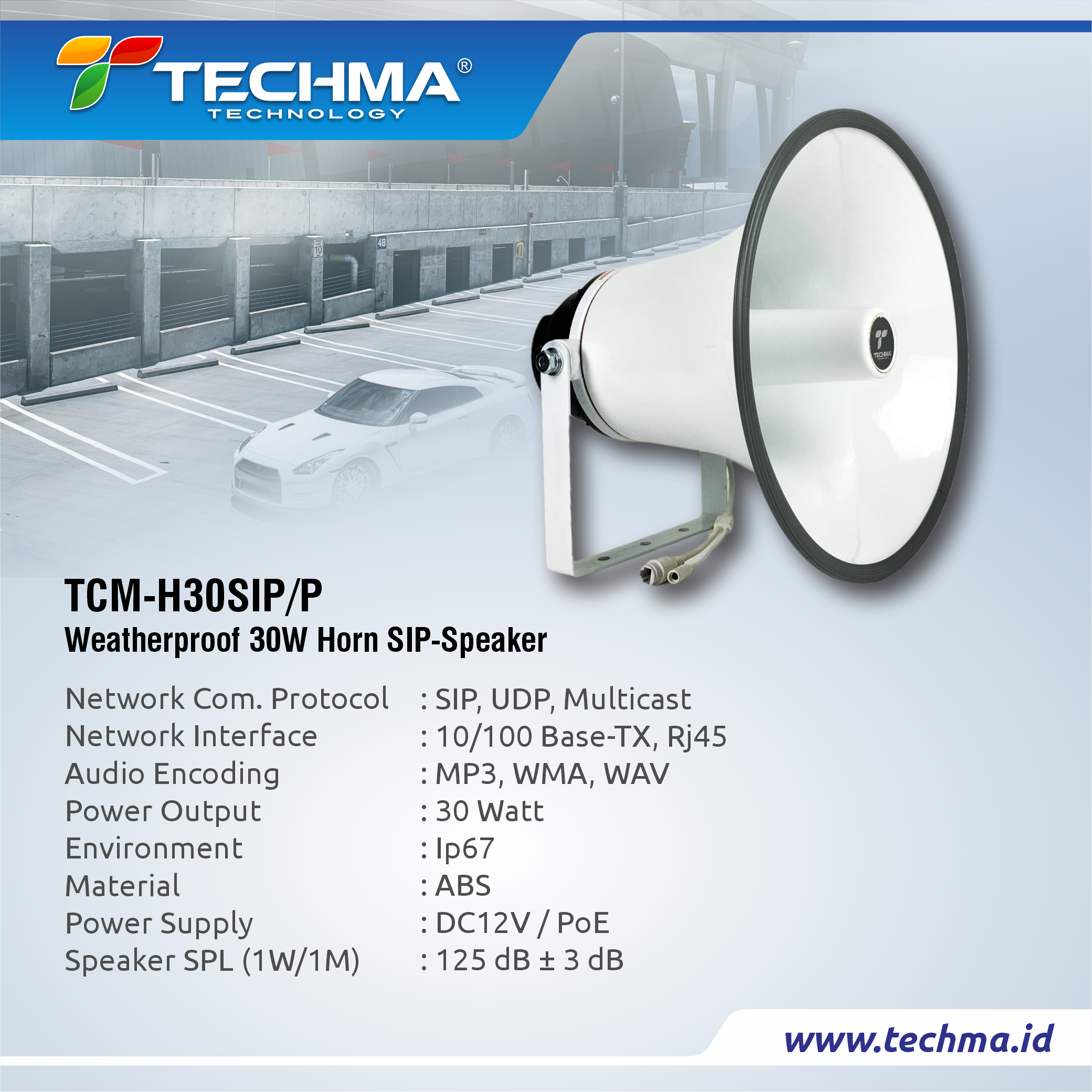

IP Speaker Techma TCM-H30SIP/P
WATERPROOF 30W HORN SIP-SPEAKER
Description
IP Speaker Techma TCM-H30SIP/P was Auto-provisioning through TCM-BGM5000+ Audio server saves time configuring, especially in the case of large-scale installations. The module can easily be integrated with 3rd party SIP systems through SIP System interface
Features
IP Speaker Techma TCM-H30SIP/P is an active weatherproof horn SIP-speaker able to connect to any SIP-server as standard SIP-client and get a phone call as standard SIP-extension. Simple installation and setup. Audio files and voice messages can be streamed live or uploaded to device to play them later or periodically from built- in timer/scheduler.
- Network 10/100M,Rj45
- Protocol UDP,SIP,Multicast,RTP
- Rated Power 30 Watt
- Max SPL 130dB (1W/1M)
- Source PoE 802.3at / DC24V 3A
- Dispersion angle 120o
Spesification
Specification:
| Model | TCM-H30SIP/P |
HARDWARE |
|
| Ethernet connector | 1x RJ45 |
| Power Options | 12V DC – 24V DC 3A |
| PoE Power | IEEE 802.3at (PoE+) |
| Power Consumption | Idle : 1.8W/ Max: 35W ( Volume dependant ) |
| CPU | Base on ARM and DSP Architecture |
NETWORKING AND PROTOCOLS |
|
| Protocols | SIP, TCP, UDP, Multicast HTTP, RTP, DHCP, SNMP, NTP |
| Audio Management and operation software | Broadcast Audio management software was Auto-provisioning through TCM-BGM5000+ |
| Decoding | Mp3/WMA/WAV |
| Audio Codec | G.711, G722, G.729 |
SPEAKER SPECIFICATION |
|
| Speaker Driver | Horn Type |
| Rated Power | 30 Watt RMS |
| Impedance | 8 Ω |
| SPL (1W/1m) | 125 dB ± 3 dB |
| MAX SPL (Rated W/1m) | 130 dB |
| Frequency range (-10dB) | 300 Hz to 18 kHz |
| Operating temperature | -40°C to – 70°C |
| Material | ABS + Steel |
| Colour and Finish | White |
| Protection | IP67 (All Type) |
| Net Weight | 3,9 kg |
| Mounting | Mounting Bracket and Screws |
