IP Speaker Techma TCM-IPW430SIP/P
Column IP Speaker 30watt PoE++
Description
IP Speaker Techma TCM-IPW430SIP/P was Auto-provisioning through TCM-BGM5000+ Audio server saves time configuring, especially in the case of large-scale installations. The module can easily be integrated with 3rd party SIP systems.
IP Speaker Techma TCM-IPW430SIP/P is an active PoE+ SIP-speaker able to connect to any SIP-server as standard SIP-client and get a phone call as standard SIP-extension. Simple installation and setup. Audio files and voice messages can be streamed live or uploaded to device to play them later or periodically from built- in timer/scheduler.
Features
- 5” Full Range Speaker Unit
- Fitted with a 5” Twin Cone Driver Unit
- Designed for wide response (music and speech)
- Secure Flush Mount Installation
Spesification

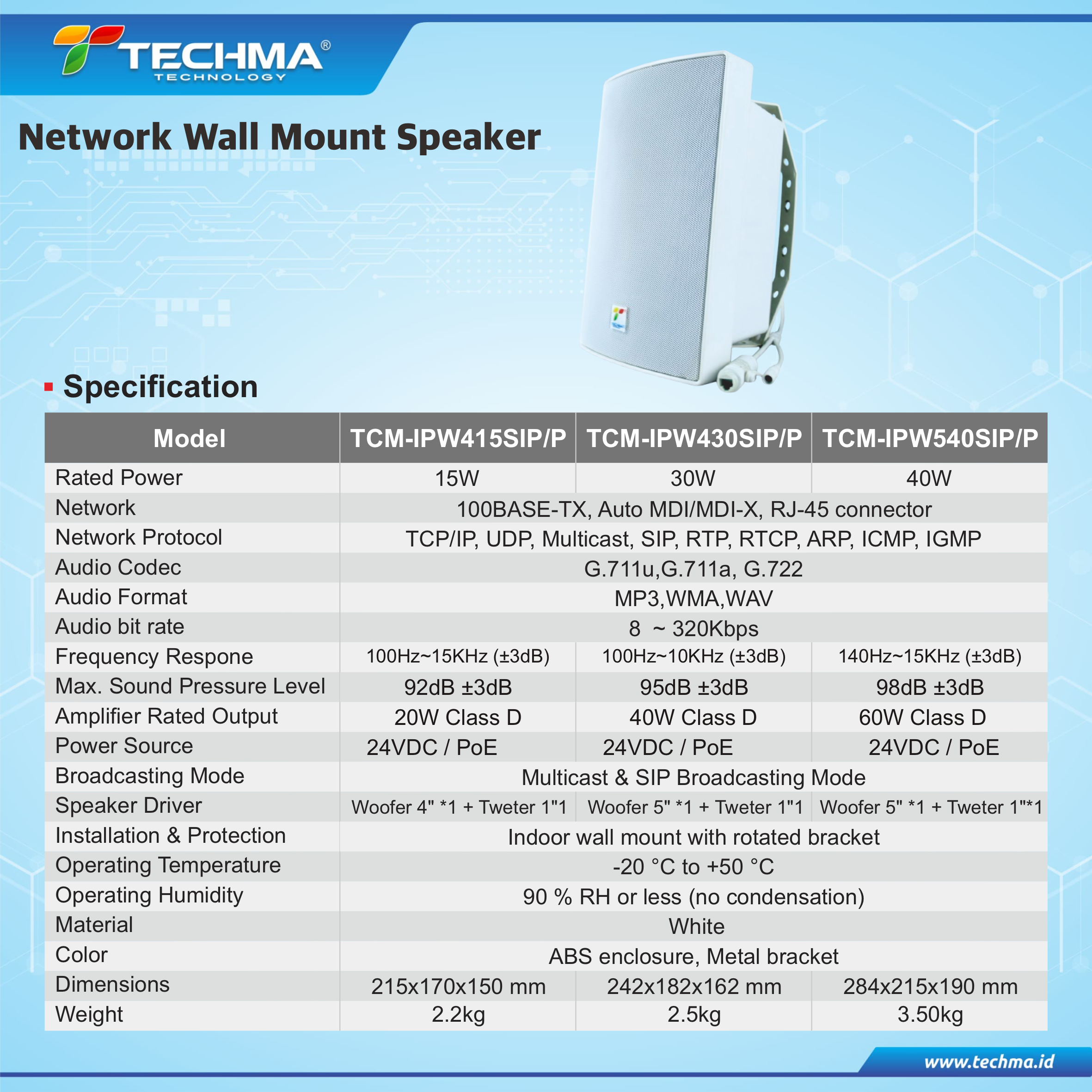

Specification:
| Model | TECHMA TCM-IPW430SIP/P |
HARDWARE |
|
| Ethernet connector | 1x RJ 45 |
| Power Options | PoE and external PS 24V DC |
| PoE | IEEE 802.3at |
| Power Consumption | Idle: 1.8W / Max: 20W (Volume dependant) |
| CPU | Base on ARM and DSP Architecture |
NETWORKING AND PROTOCOLS |
|
| Protocols | IPv4 (with DiffServ), SIP, TCP, UDP, Multicast HTTP, RTP, DHCP, SNMP, NTP |
| LAN Protocols | PoE (802.3at) Network Access Control (802.1x) |
| Audio Management and Operation Software | Broadcast Audio management Software TCM-BGM5000+ |
| SIP Support | RFC3261 (SIP Base Standard), RFC3515 (SIP Refer), RFC2976 (SIP Info), SIP using TLS, RFC5630 SIPS Uri scheme |
| DTMF Support | RFC2833, 2976 (SIP Info) |
SPEAKER SPECIFICATION |
|
| Rated Power | 30 Watt RMS |
| Impedance | 8Ω |
| SPL (1W/1M) | 92dB ± 3dB |
| MAX SPL (Rated W/1M) | 105dB |
| Frequency range (-10dB) | 90Hz to 20kHz |
| Operating temperature | -20°C to + 70°C |
| Power Selection | PoE / 24V DC |
| Material | Housing: ABS and Aluminium |
| Colour and Finish | White |
| Cut-out Size | Ø = 210mm |
| Dimensions | Ø = 200mm, h = 290mm |
| Net Weight | 2,5Kg |
| Mounting | Mounting Bracket with Screws |
