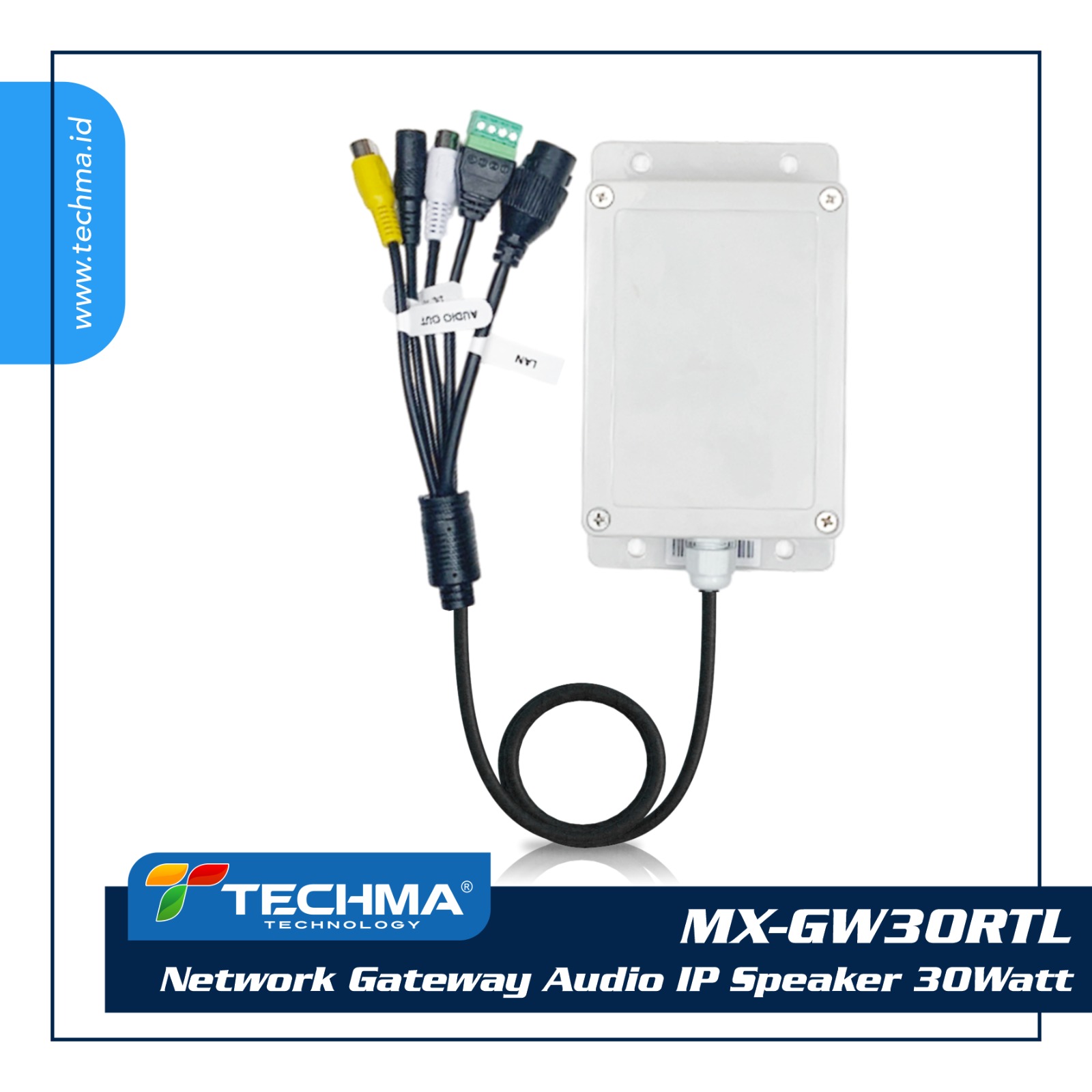

MX-GW30RTL
Network Gateway Audio IP Speaker 30Watt
Description
MX-GW30RTL is a Gateway Audio IP Speaker for analog speakers or analog Power Amplifier to Network Speakers. This can change analog old system to new Network audio system. It has a 10/100M Ethernet interface and supports G.711 audio decoding. It receives audio data from the SIP network and decodes and plays it in real time. Built in internal power Amplifier 2×15 watt can direct connect to speaker at 8 ohm impedance. Configure one line audio output, which can connect to external power amplifier, if need.
Features
- Output 2x15Watt, Digital Active Speaker
- Speaker Output 2 x 15Watt
- Input Rj45 10/100mbps
- Protocol SIP, Multicast, TCP/IP
- Paging Cloud Announcer Server
- Audio Auxiliary output for convert IP Amplifier
- Roadlink Audio Software Mx300RTL
- Power supply 12VDC / PoE (external)
Spesification
Specification:
| Model | MX-GW30RTL | ||
|---|---|---|---|
| Network | 10/100Mbps RJ45 Connector | ||
| Protocol System | TCP/IP, SIP, UDP, IGMP, Multicast | ||
| Audio codec | G.711a/u,G.722,G.729 | ||
| Audio Format | MP3, WMA, WAV | ||
| Sampling Rate | 8K~48KHz | ||
| Audio Bit Rate | 8Kbps~320Kbps | ||
| Frequency Response | 200Hz – 15KHz | ||
| Output Audio | Speaker output and aux audio output | ||
| Power | 2x15Watt of class D Power Amplifier | ||
| Channel | 2 Channel | ||
| Speaker Impedance | 4~16Ω Speaker loads | ||
| Attenuator | Local & Remote Volume control | ||
| Protection | Protections of short circuit, overload, high temperature | ||
| Power Source | DC 12 – 24V or PoE 802.3at | ||
| Power Consumption | Less than 10W | ||
| Operating Temperature | -10°C ~ 65°C | ||
| Environment | Indoor use | ||
| Gross Weight | Approx 1kg | ||
| Dimension | 100 x 66 x 26 mm Wallmounted | ||
