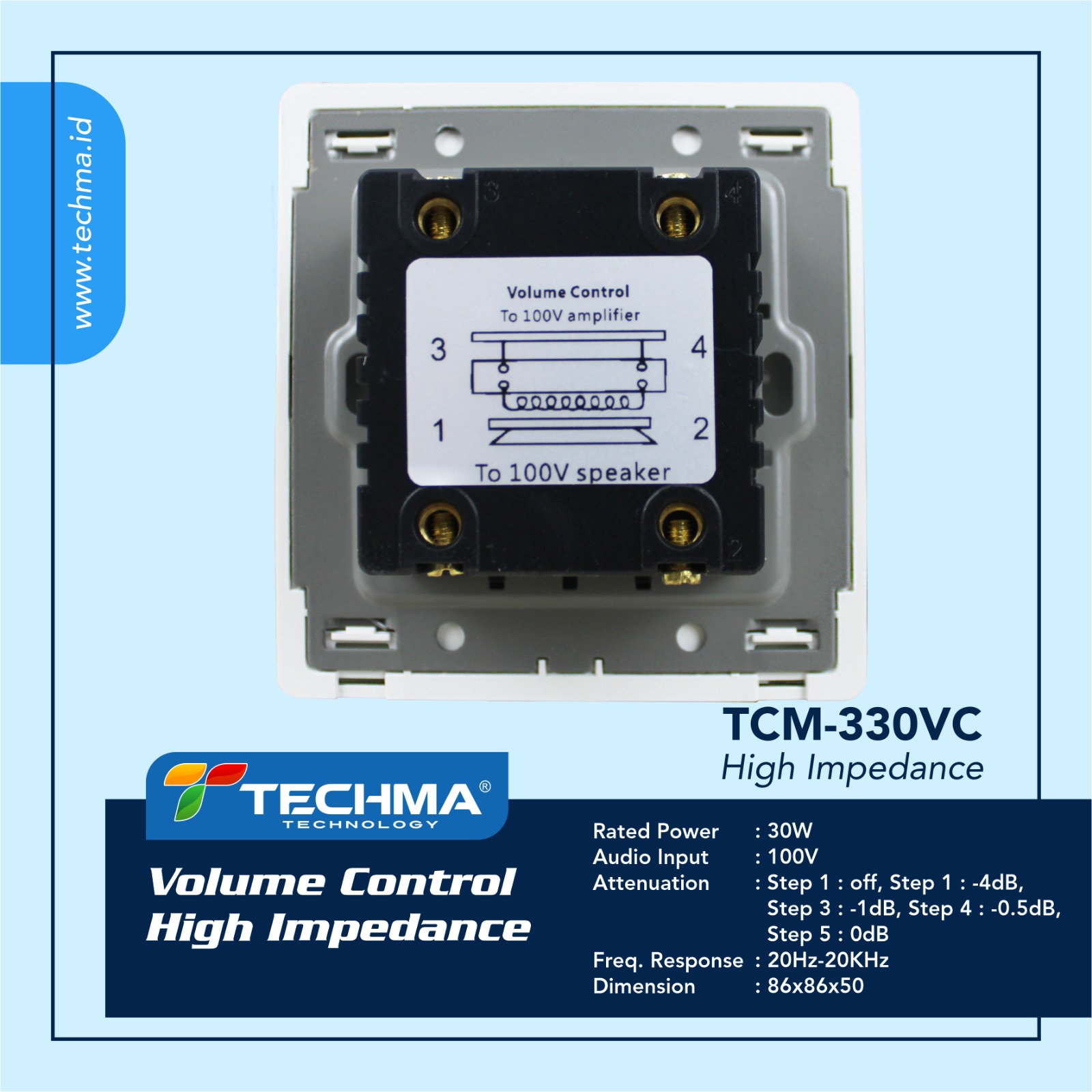

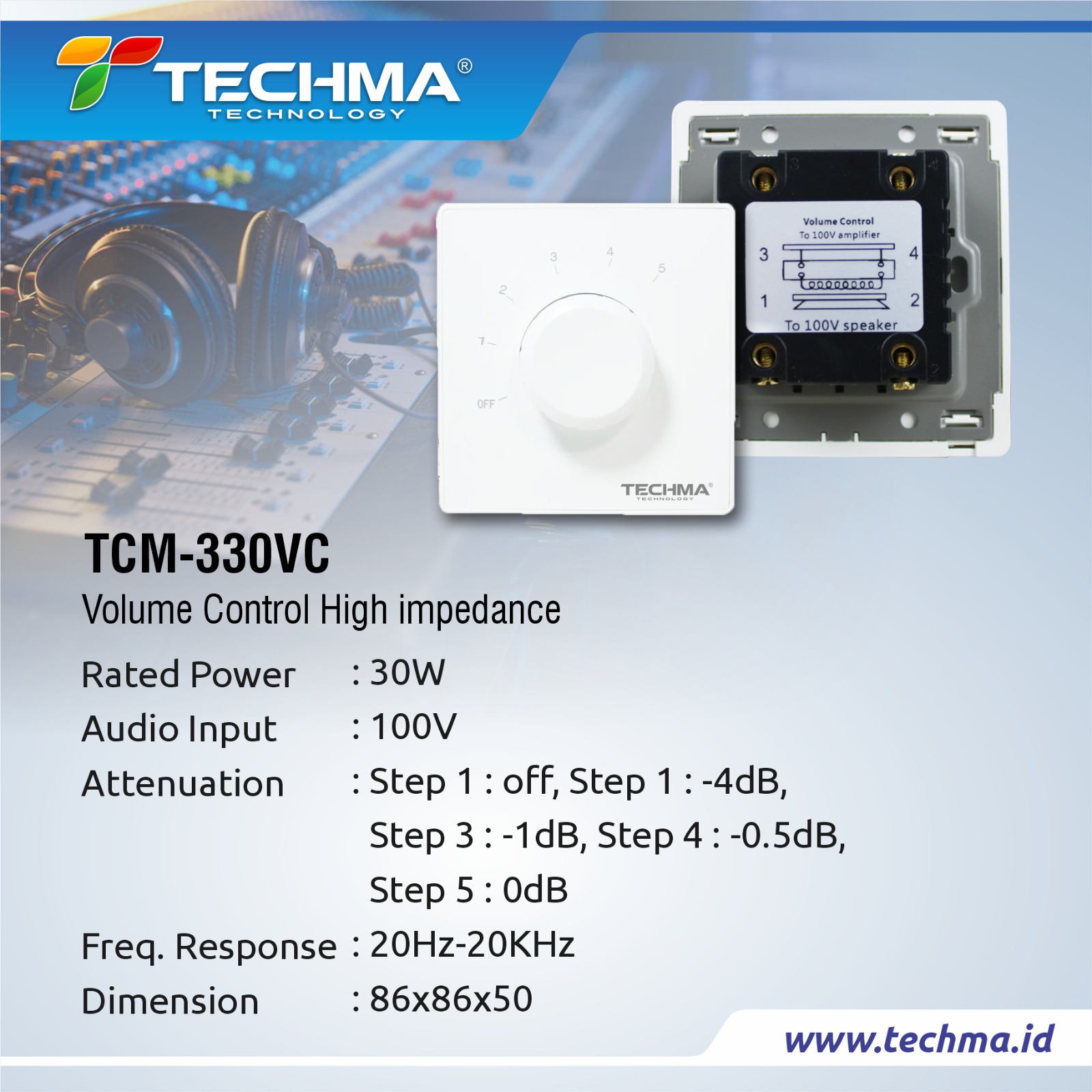

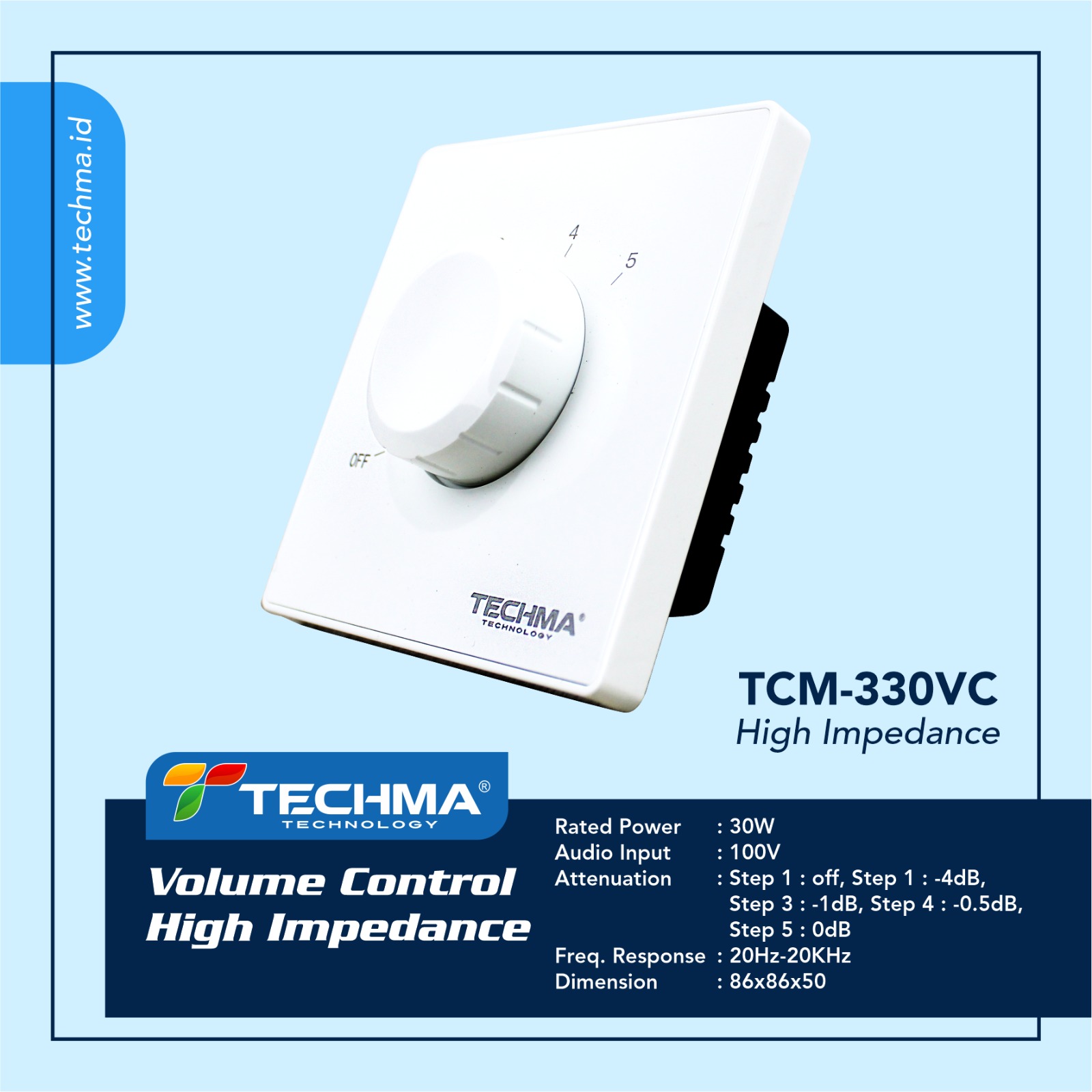

TCM-330VC
Volume Control High Impedance
Description & Feature
If you have a multi-room audio system, you can control the volume of speakers in individual rooms by installing wall-mounted volume adjusters in each zone, the volume control wires between your amplifier/receiver and the speakers, letting you adjust the speaker volume with the soft touch 5 step rotary attenuation knob.
Download PDF Price VideoSpesification
Specification:
| Model | TCM-330VC | TCM-360VC | TCM-230VC |
|---|---|---|---|
| Method | Transformer | Transformer | Electric resistance |
| Rated Power | 30 Watt | 60 Watt | 2×30 Watt (Stereo) |
| Audio Input | 100V | 100V | 4 -16 Ohm |
| Attenuation | STEP 1: off | STEP 1: off | STEP 1: off |
| STEP 2: -4dB | STEP 2: -17dB | STEP 2: -18dB | |
| STEP 3: -1dB | STEP 3: -11dB | STEP 3: -11dB | |
| STEP 4: -0.5dB | STEP 4: -4.5dB | STEP 4: -5dB | |
| STEP 5: 0dB | STEP 5: 0dB | STEP 5: 0dB | |
| Freq. Response | 20Hz ~ 20KHz | ||
| Dimension | 86x86x50 | 86x86x62 | 86x86x70 |
| Color | White | ||
| N.W | 120g | 135g | 295g |
