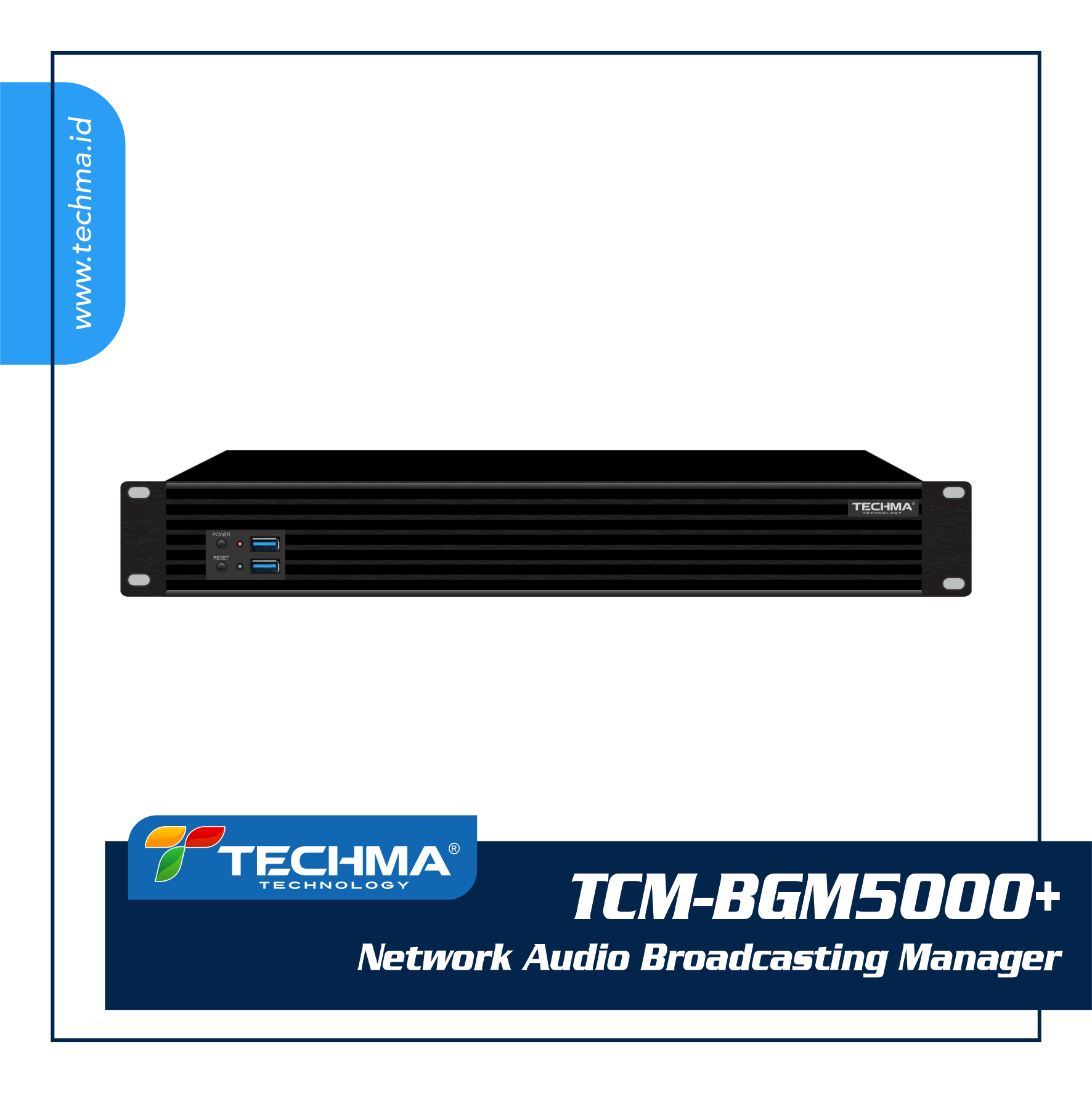

Techma TCM BGM5000+ Network Audio Broadcasting Manager
Description
Techma TCM-BGM5000+ is a network Audio Broadcast Manager to manage audio broadcasting systems to some or several IP audio devices via LAN networks. Equipped with a background music player to play and send to some or all installed IP Speakers by selecting and directing which speakers can receive. Equipped with a Multitrack Audio Player for up to 10 players used to broadcast MP3 audio to several IP Audios with different types of music. Audio Timer Schedule can be used to play audio that will be played at a specified time, date, day, month, and can be selected as a broadcast target to some or all IP audio devices. Priority emergency ,if any emergency event or calling, the audio player stopped. This feature is suitable for promotional information, work safety information, school bell information, etc. Digital Audio selector that can be used to select speaker broadcast targets. By adding an Alarm integration module, it is possible to use it for integration with other alarm devices with IP speakers such as CCTV, DVR / NVR, VMS, fence alarms, etc. This system is very suitable for audio broadcasting over LAN networks with complex audio distribution needs between buildings such as government agencies, schools, factories, commercial buildings, residential areas and hospitals, etc. This system is very economical and flexible compared to using analog audio broadcasting systems that have many limitations in features and distance and complicated wiring systems.
Feature :
- Network 1000M Tx,Rj45 Connector
- Protocol Multicast, TCP/IP, UDP, RTP
- Audio broadcasting source MP3,WMA,WAV,Analog, BT & Tuner (optional) )
- Built-in Audio Timer Scheduling Broadcast
- Emergency Priority Audio broadcast
- Built-in Digital Audio Channel selector
- Built-in Player & Multi track audio Player Broadcast
- Remote Audio Player client software e
- Multi client user management
- I/O Audio alarm management

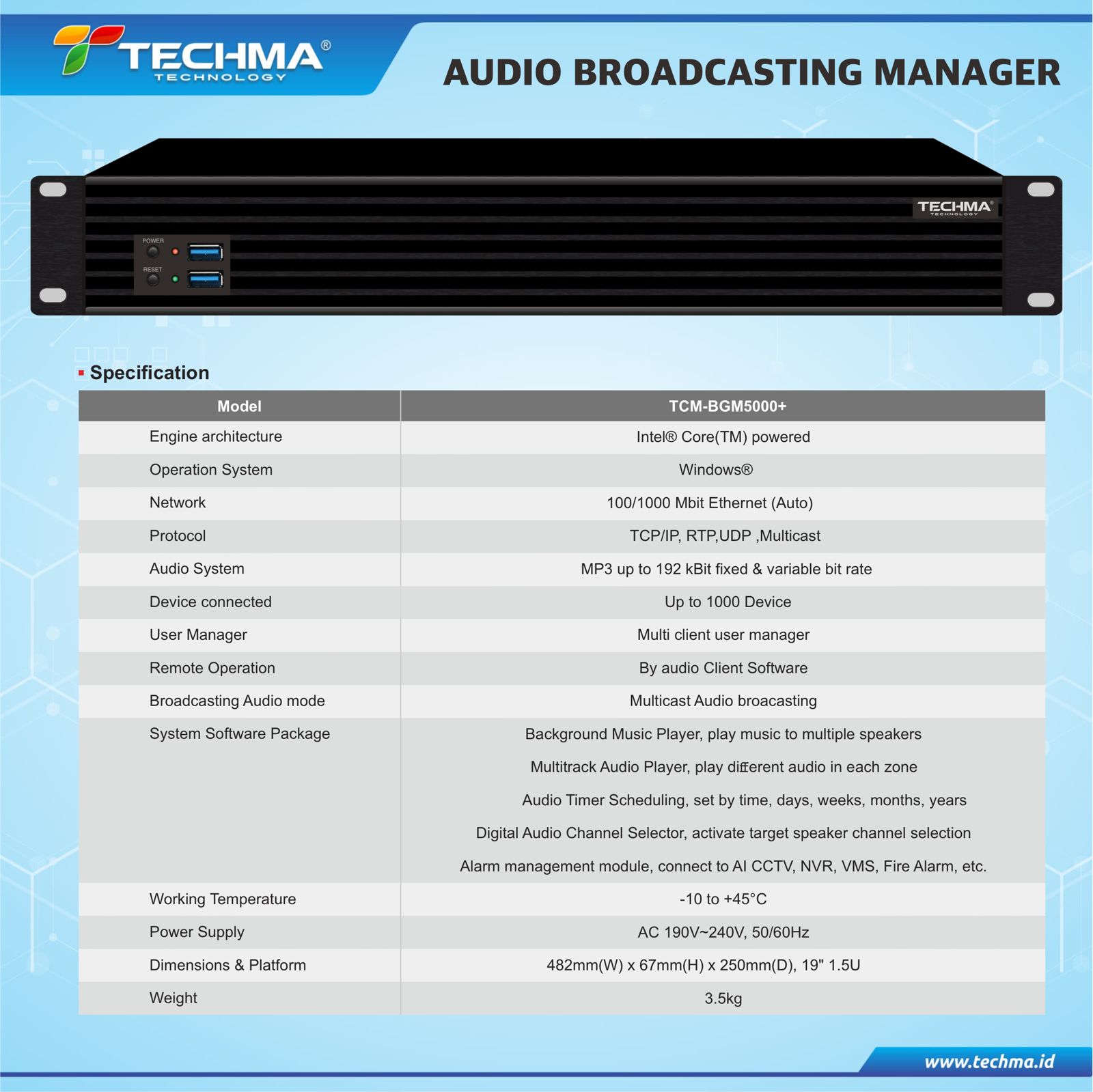

Specification:
| Model | TCM-BGM5000+ |
|---|---|
| Engine architecture | Intel® Core(TM) powered |
| Operation System | Windows® |
| Network | 100/1000 Mbit Ethernet (Auto) |
| Protocol | TCP/IP, RTP,UDP,Multicast |
| Audio System | MP3 up to 192 kBit fixed & variable bit rate |
| Device connected | Up to 1000 Device |
| User Manager | Multi client user manager |
| Remote Operation | By audio Client Software |
| Broadcasting Audio mode | Multicast Audio broacasting |
| System Software Package | Background Music Player, play music to multiple speakers Multitrack Audio Player, play different audio in each zone Audio Timer Scheduling, set by time, days, weeks, months, years Digital Audio Channel Selector, activate target speaker channel selection Alarm management module, connect to AI CCTV, NVR, VMS, Fire Alarm, etc. |
| Working Temperature | -10 to +45°C |
| Power Supply | AC 190V~240V, 50/60Hz |
| Dimensions & Platform | 482mm(W) x 67mm(H) x 250mm(D), 19” 1.5U |
| Weight | 3.5kg |
