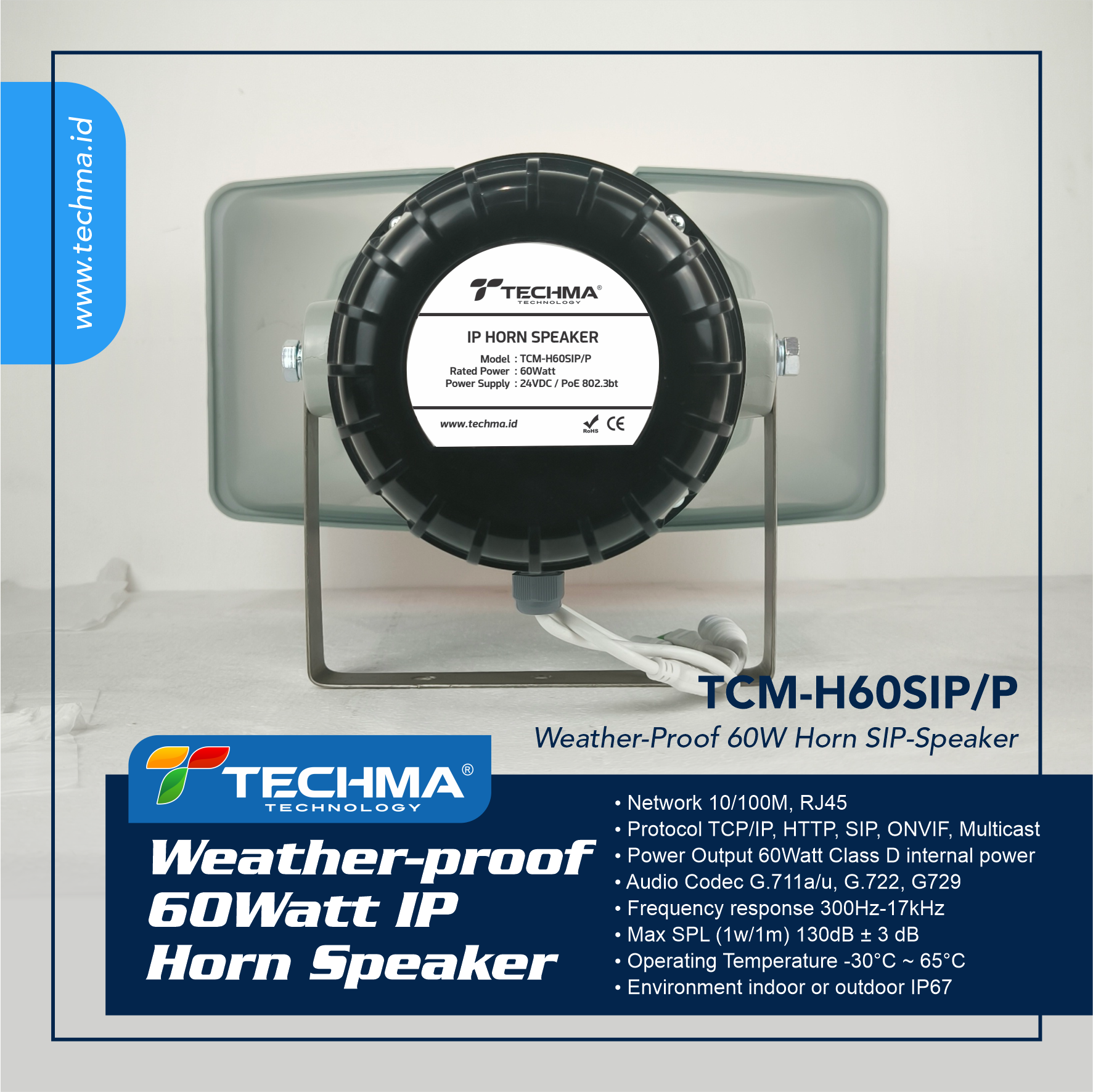

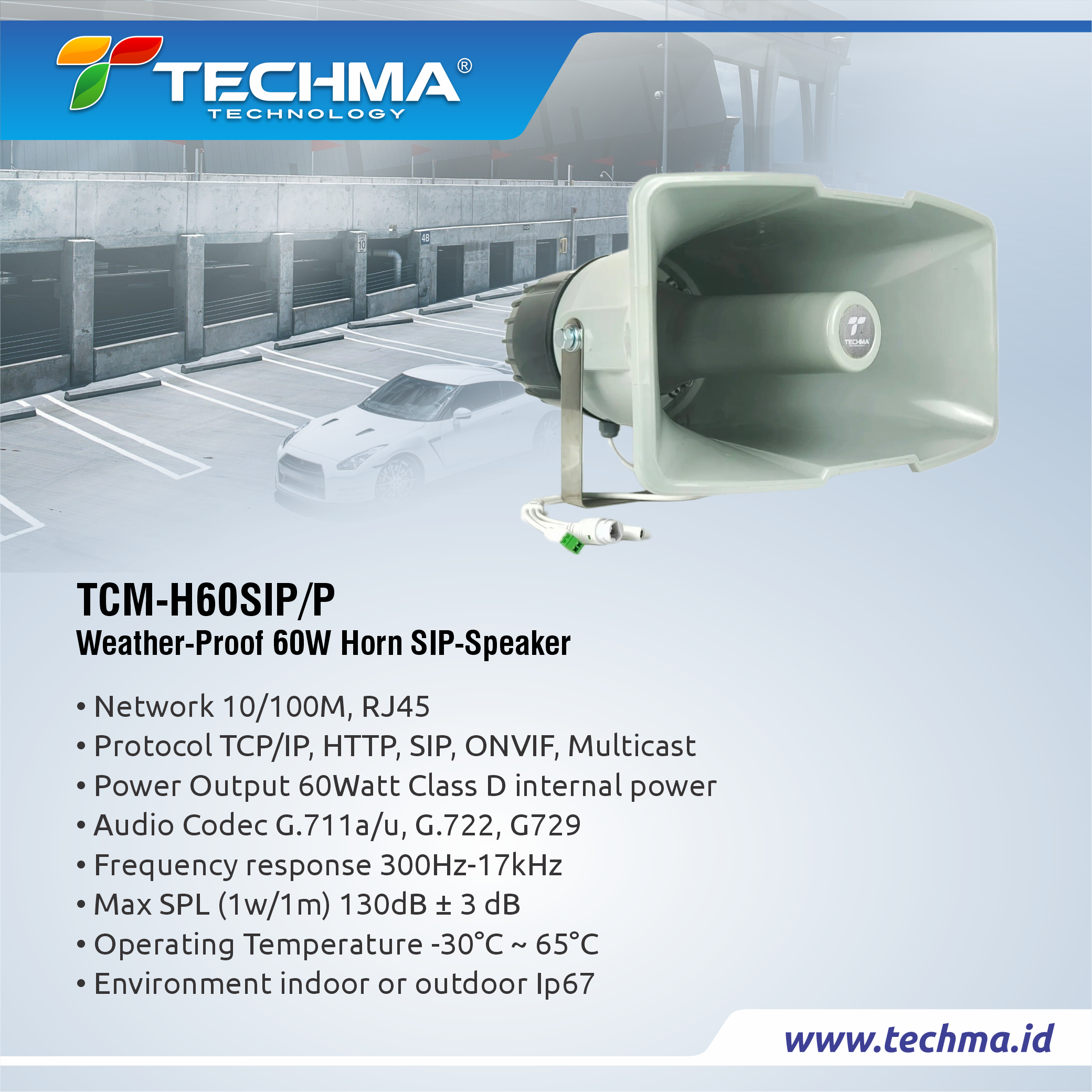

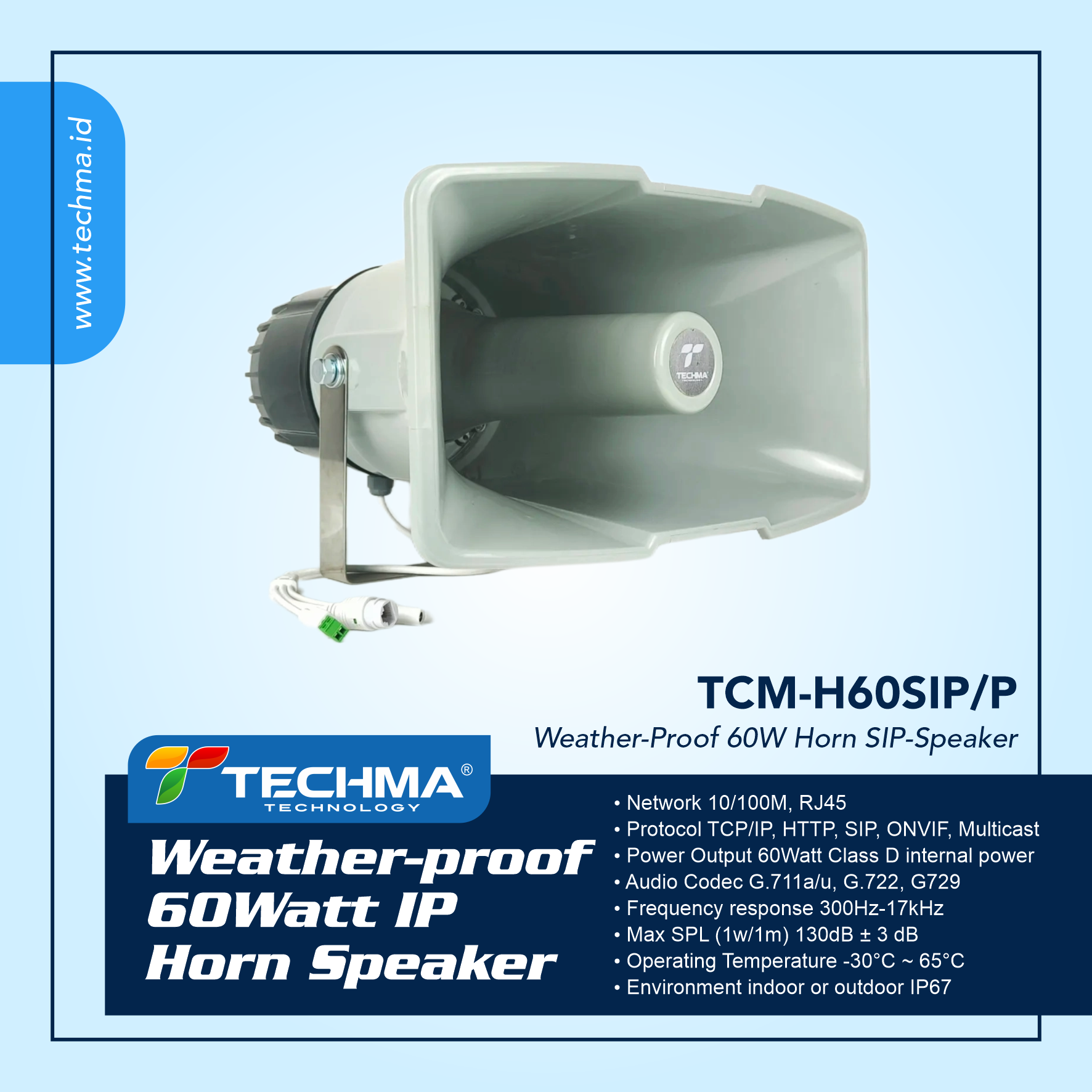

TCM-H60SIP/P
Weather-Proof 60W Horn SIP-Speaker
Description
The TCM-H60OSIP/P is an outdoor Horn IP Speaker with sufficient mechanical strength. It has high sensitivity and efficiency in terms of electricity/sound. This product is used for indoor or outdoor . It is suitable for Audio Broadcasting, Paging Announcer, and PAGA Emergency broadcasting in School, Highway ,Commercial Building, and other locations.
Features
- Network 10/100M, RJ45
- Protocol TCP/IP, UDP, HTTP, RTP, ARP, SIP, Multicast
- Power Output 60Watt Class D internal power
- Audio Codec G.711a/u, G.722, G729
- Frequency response 300Hz-17kHz
- Max SPL (1w/1m) 130dB ± 3 dB
- Operating Temperature -30°C ~ 65°C
- Power Supply 24Vdc / PoE 802.3at
- Material ABS, steel bracket
- Environment indoor or outdoor Ip67
Spesification
Specification:
| Model | TCM-H60SIP/P |
|---|---|
| Network | 10/100Mbps Tx,Rj45 Conector |
| Protocol System | TCP/IP, UDP, HTTP, RTP, ARP, SIP, Multicast |
| Audio Codec | G.711a/u, G.722, G.729 |
| Audio Format | MP3, WMA, WAV |
| Sampling rate | 8K~48KHz |
| Audio bit rate | 8Kbps~320Kbps |
| Rated Power | 60 Watt with Class D internal Power |
| Frequecy response | 300Hz-17kHz |
| Power Consumption | Idle: 1.8W / Max: 65W (Volume dependent) |
| Power Source | DC 24V or PoE++ 802.3bt |
| Max SPL (1w/1m) | 130dB ± 3 dB |
| Operation Temperature | -30°C ~ 65°C |
| Operating Humidity | 95 % RH or less (no condensation) |
| Material | ABS, steel bracket |
| Environment | Indoor or outdor use with protection IP67 |
| Gross Weight | Approx 3,9kg |
| Dimension | 440mm x 400mm x 200mm |
