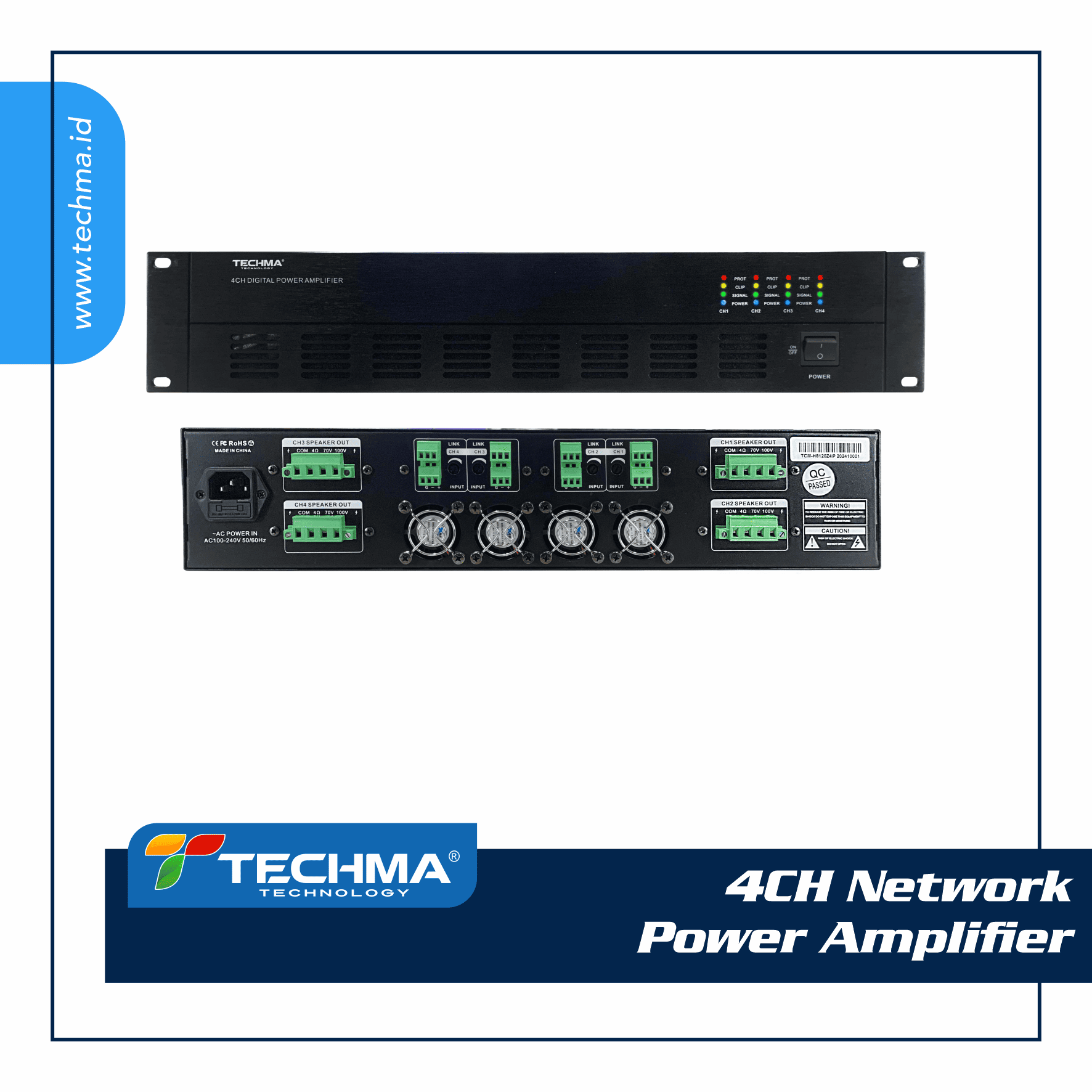

Techma 4Ch High Power IP Amplifier

TCM-H8120Z4
TCM-H8120Z4
previous arrow
next arrow
TCM-H8120Z4
TCM-H8120Z4
previous arrow
next arrow

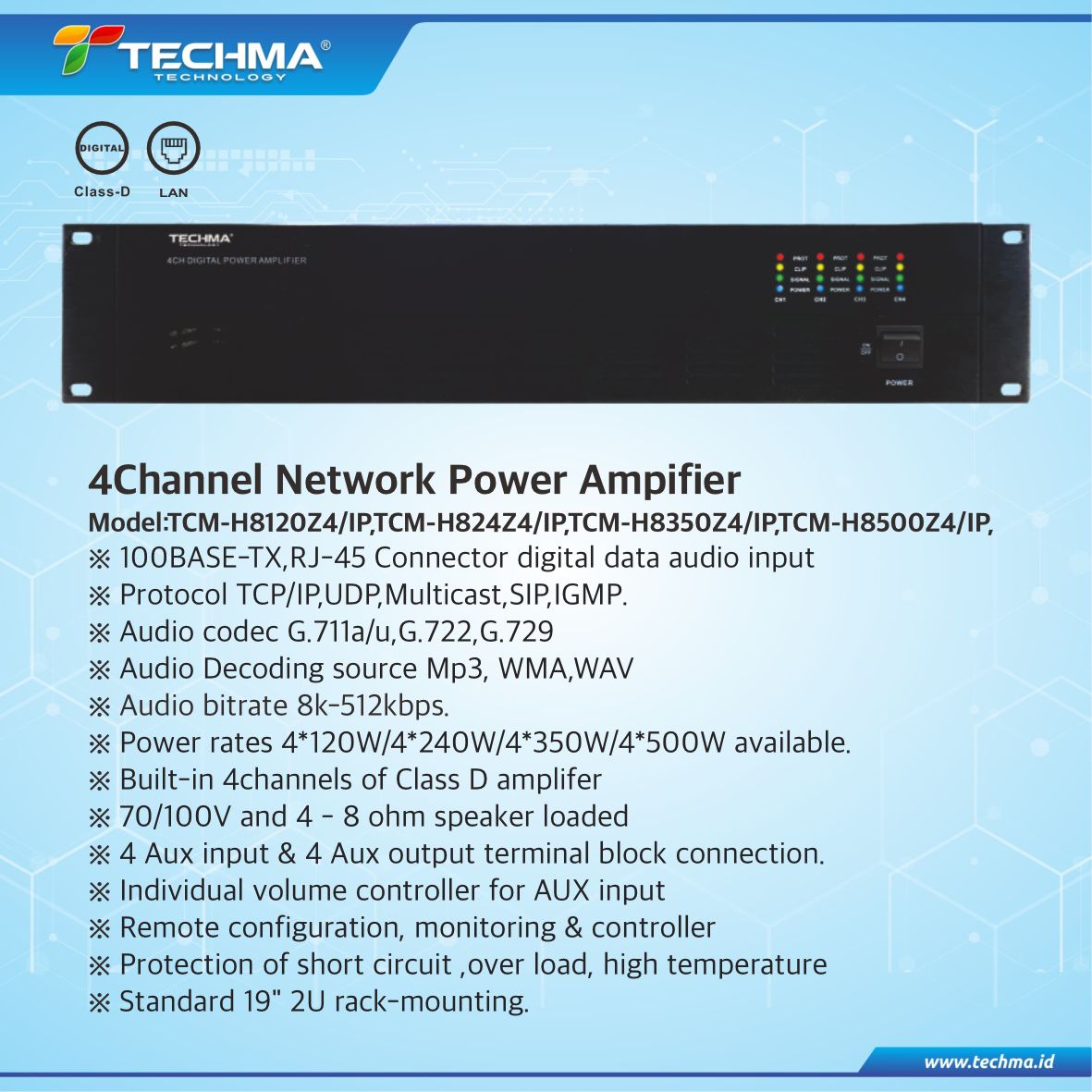

4Channel IP Power Amplifier 120W/240W/350W/500W

Description

These
Mp3

Network
 IP
 Amplifier built-in
 DSP
 controller
 design

for
 background
 music,
 paging
 announcer,
 PAGA
 Alarm
 and
 Public
 Address
 system
 installations, these
 unit
 is
 expetional
 values, loaded
 with
 features,
 and
 are
 easy
 to
 instal
 in
 variety
 of
 system
 designs. Easy
Remote
configuration, operation
 &
montitoring.

Features

  • 100BASE‑TX, RJ‑45
Connector
digital
data
audio
 input
  • Power
 rates
 120W/240W/350W/500W
 available
 each
4channel
  • Standard
19″
2U
rack‑mounting
housing
  • Built‑in
 4
channels of
Class
D
amplifier
  • a
channels
of
 70/100V
 and
4
‑
16
ohm
 speaker
loaded
  • 4

AUX
 audio inputs, 4
LINE
output
  • Protection
 of
 short
circuit, over
load ,high
temperature
Download PDF Video Solution
Spesification

Specification:

ModelTCM-H8120Z4/IPTCM-H8240Z4/IPTCM-H8350Z4/IPTCM-H8500Z4/IP
Rated Power4x120W4x240W4x350W4x500W
Network100BASE-TX,Auto MDI/MDI-X, RJ-45 connector
Network ProtocolTCP/IP,SIP,Multicast, IGMP,UDP
Audio CodecPCMU (G.711u), PCMA, (G.711a), G.722
Audio DecodingMP3,WMA,WAV
Audio Bit RateMP3 file: 32/44.1/48 kHz sampling frequency, 64-320 kbps
Output ModeLine voltage 70V/100V, Low impedance 4 – 8Ω
Aux Audio InputLAN ,Analog Phoenix terminal
Aux Audio OutputAnalog Phoenix terminal
Aux Audio Output0.775V (0 dBV)
Frequency Response100Hz~18kHz ±3dB
THD<0.3% at 1 kHz, 1/3 rated power
S/N≥85 dB
CoolingDC24V FAN
IndicatorsPOWER, SIGNAL, CLIP, PROT
AC FuseT5AT10AT15AT20A
Controls4 Volume control, 1 Power on/off
Power InputAC100V~240V, 50/60Hz
Consumption576W1152W1680W2400W
Dimension89(H) × 483(W) × 366(D) mm
Net Weight11.5Kg14.5Kg15.5Kg16.5Kg
