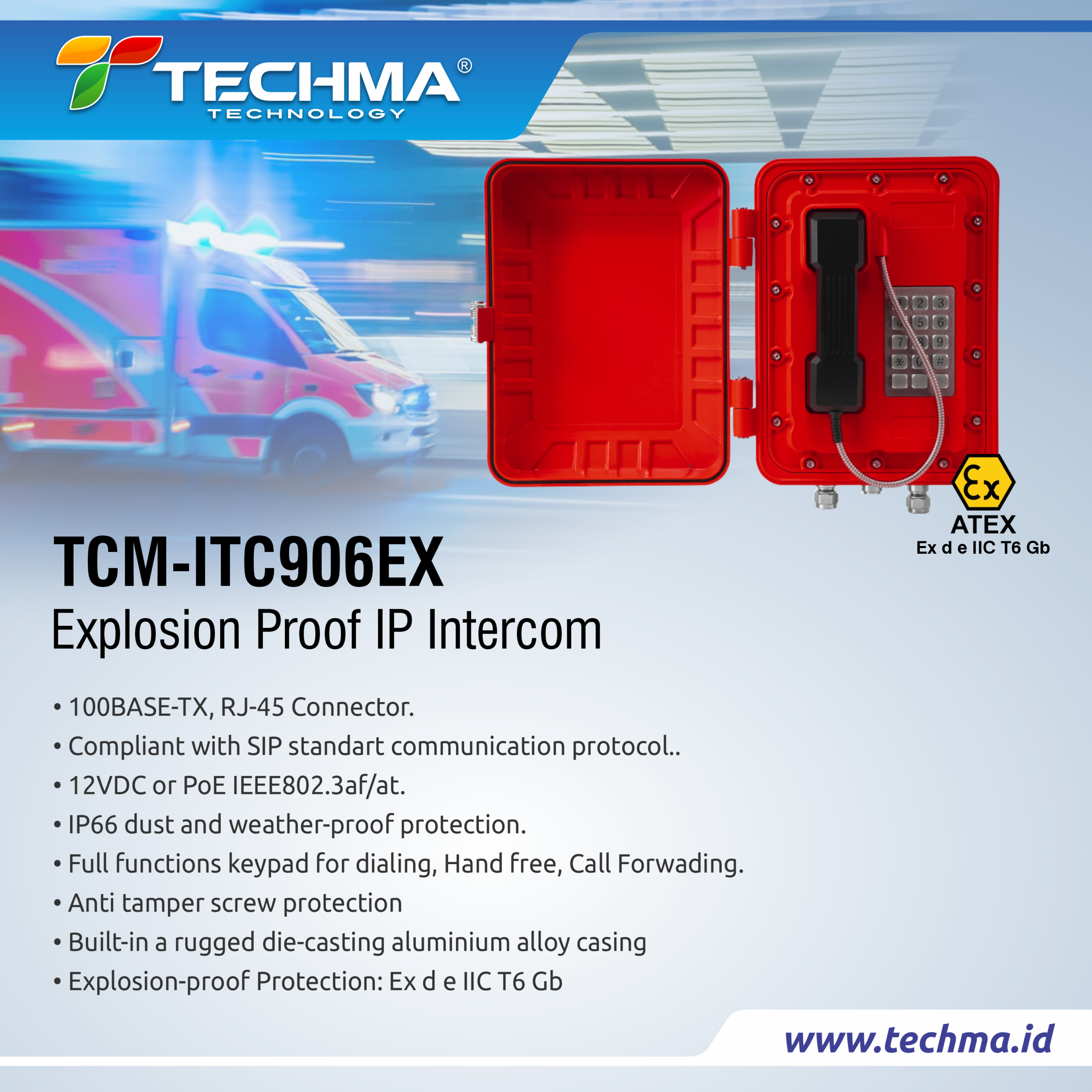

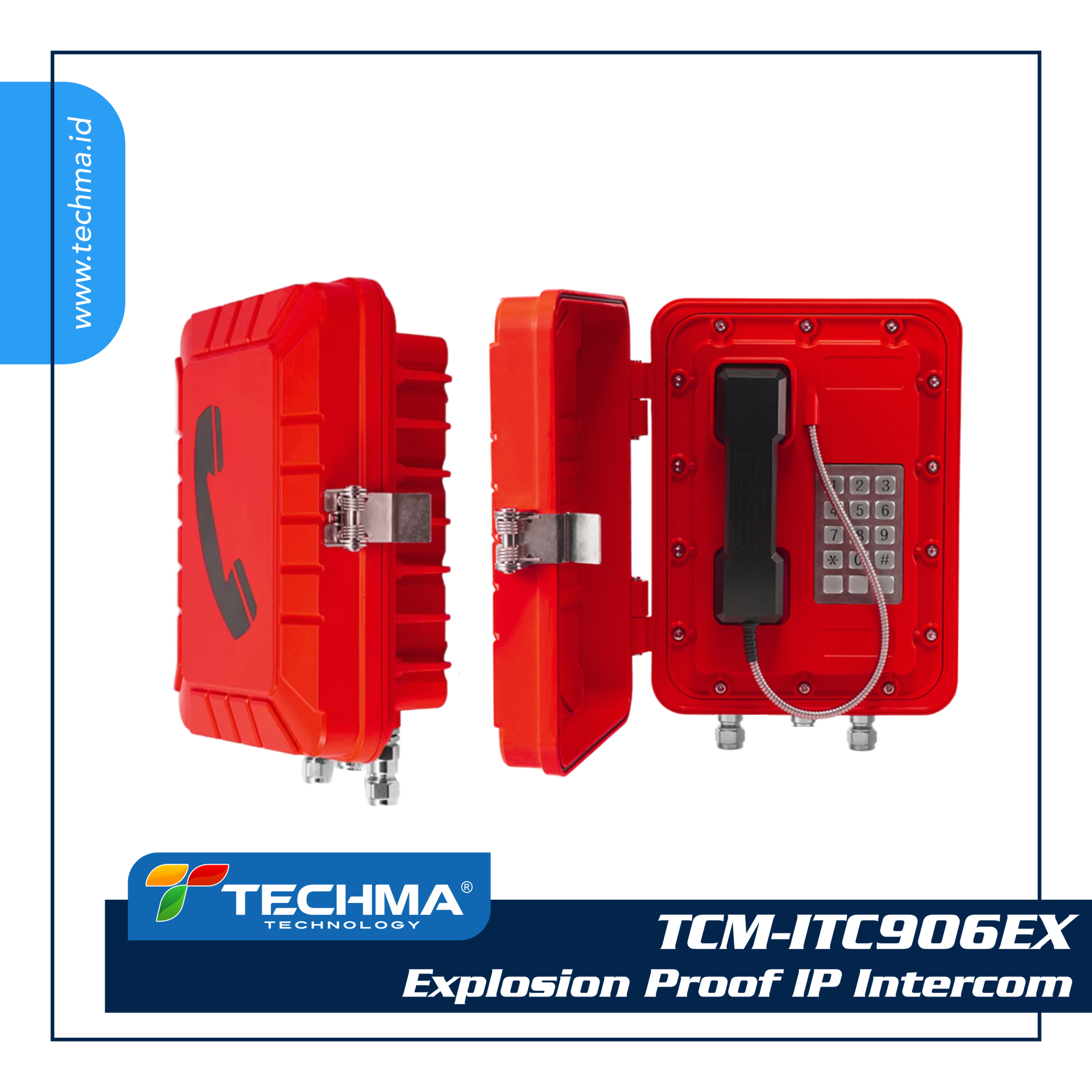

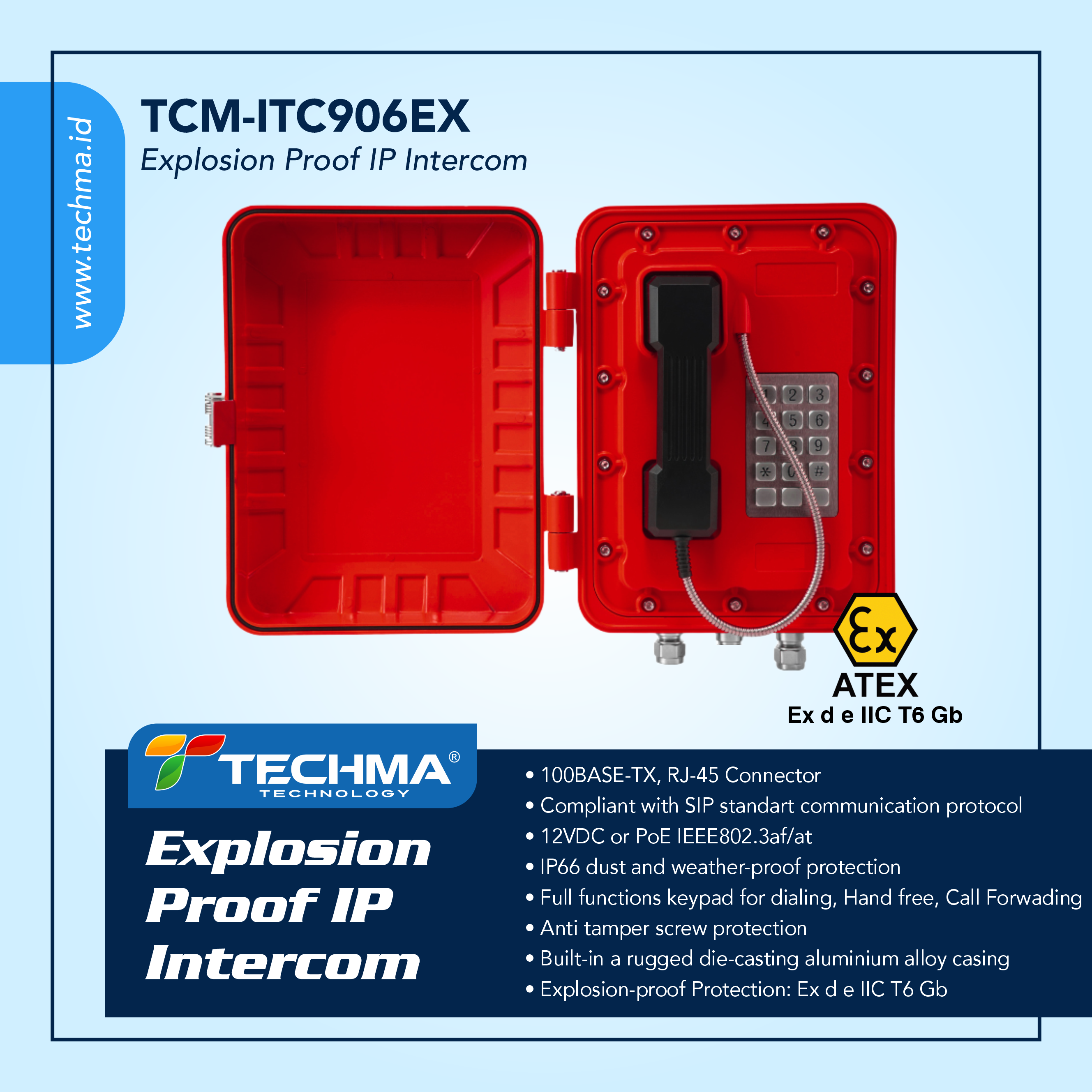

TCM-ITC906EX
Explosion Proof IP Intercom
Description :
The TCM-ITC906EX series adopts a corrosion-resistant, vandal-proof, die-cast aluminium waterproof casing, equipped with a magnetic door cover, which completely prevents dust and moisture from entering. This extends theli fi cycle and moisture from entering. This extends the product’s life cycle and enchanges its reliabality and stability. The phone is suitable high speed rail, subways, tunnels, port, docks, airport, minning, oil and gas industri and others
Features :
- 100BASE-TX, RJ-45 Connector.
- Compliant with SIP standart communication protocol..
- 12VDC or PoE IEEE802.3af/at.
- IP66 dust and weather-proof protection.
- Full functions keypad for dialing.
- Anti tamper screw protection
- Built-in a rugged die-casting aluminium alloy casing
- Explosion-proof Protection: Ex d e IIC T6 Gb
Spesification
Specification:
| Model | TCM-ITC906EX |
|---|---|
| Network | WAN 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector |
| Network Protocol | TCP/IP, UDP, Multicast, SIP, RTP, RTCP, ARP, ICMP, IGMP |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722 |
| Operation | Full functions keypad for dialing with autodial memory button |
| Audio | Condenser mic & speaker |
| Speaker | 1,5 watt 8 ohm |
| Ringer SPL | 90~95dB(A) at a distance of 1 mtr |
| Frequency Response | 20Hz~20KHz (±3dB) |
| Material | die-casting aluminium alloy casing with magnetic door |
| Protection Level | IP66 dust and weather-proof protection |
| ATEX Exposion-proof | Ex de IIC T6 Gb |
| Operating Temperature | -25°C to +70°C |
| Working Humidity | 10% ~ 95% |
| Power Supply | PoE IEEE802.3af/at / 12VDC |
| Power consumption | Idle:1.5W, Active:1.8W |
| MTBF | more than 50.0000 hours |
| Unit size | 204*334*126mm (H*W*D) |
| Net Weight | 7Kg |
