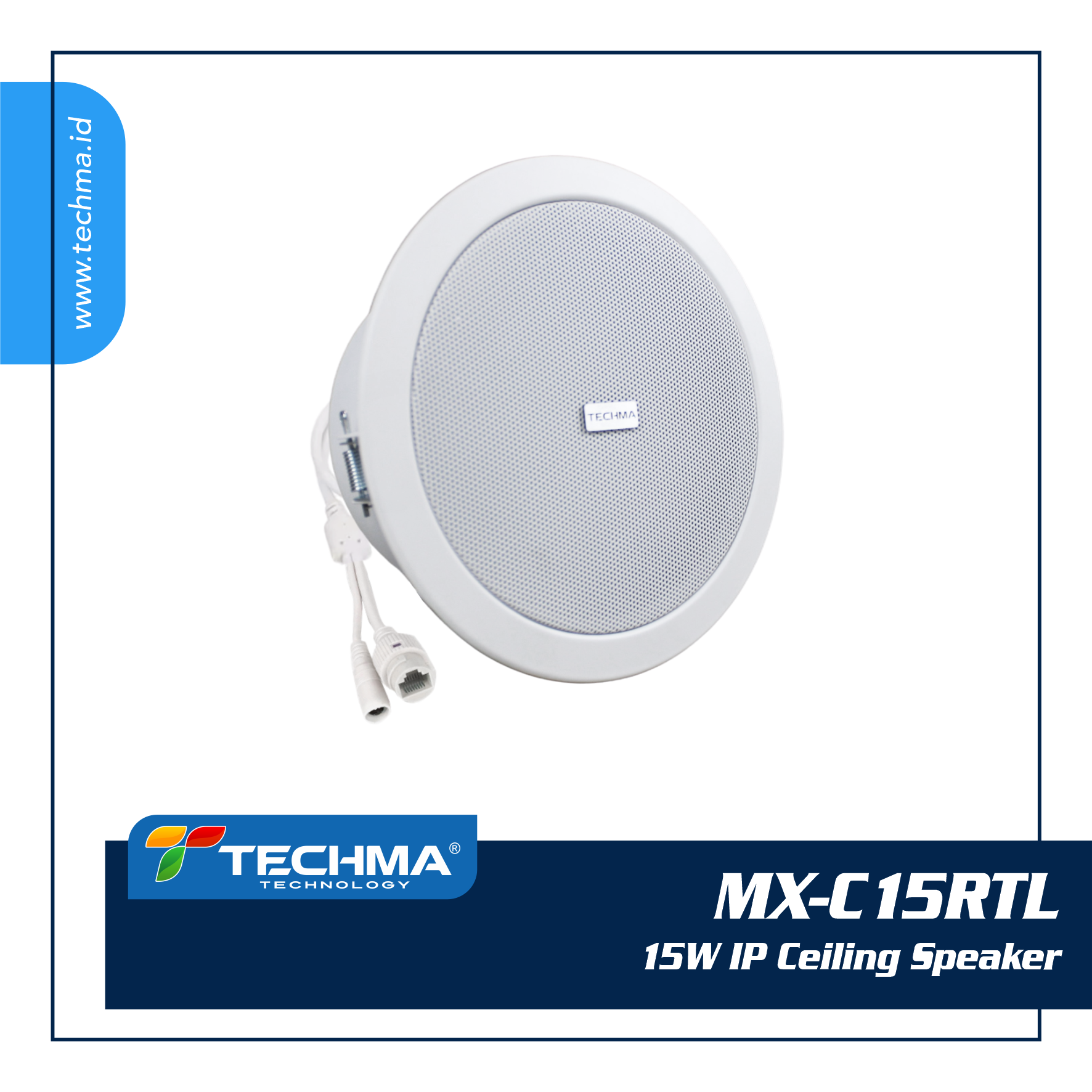

MX-C15RTL
15W IP Ceiling Speaker
Description
The Network PA Ceiling Speakers can be deliver incredible stereo sound to any room or commercial applications, from
speaker you can barely see by being installed directly overhead, without having to sacrifice any wall, floor, or shelf space. This speaker is an active speaker, inside it is installed a class D power amplifier, the RJ45 input connector is equipped with PoE so that it does not require pulling the power cable again. Easy to instal, requiring only that you cut a hole, feed the wire through, and simply drop the speaker by letting the spring clamps seize the ceiling with no extra assembly or mess. These speakers are ideally suited for installation in area for sound reproduction of reading announcement, declaring states of emergency, and playing background music such as shopping malls, restaurant, metro station, hotels, coffee bars, room schools etc. This IP Ceiling speaker has an analog slave speaker terminal that can
be added with a maximum of 3 analog speakers with an impedance of 8 ohms (Ω).
Features
- Network 100BASE-TX,RJ-45 Connector
- Protocol TCP/IP,Multicast,SIP,RTP,IGMP
- Audio codec G.711a/u,G.722,G.729
- Built-in of Class D amplifier 15W
- 8Ω Analog Slave terminal speaker output (3pcs max speaker added)
- Power DC 24V or PoE+ (IEEE802.3at/bt)
Specification:
| Model | MX-C15RTL | ||
|---|---|---|---|
| Rated Power | 15Watt | ||
| Network | 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector | ||
| Network Protocol | TCP/IP, UDP, Multicast, SIP, RTP, RTCP, ARP, ICMP, IGMP | ||
| Audio Codec | G.711u,G.711a, G.722 | ||
| Audio Format | MP3,WMA,WAV | ||
| Audio bit rate | 8 ~ 320Kbps | ||
| Speaker Slave | Max 3pcs 8Ω (Low Impedance) | ||
| Audio Input | Data RJ45 | ||
| Frequency Response | 110 ~ 15KHz | ||
| Sensitivity | 93±3dB | ||
| Dimension | Ø 180x190mm | ||
| Cutting Hole | Ø 170mm | ||
| Installation | In-Ceiling mounting with spring clamps | ||
| Material | Metal | ||
| Finish | White | ||
| Net Weight | 1.00Kg | ||
| Speaker Driver | 6″x1 | ||
