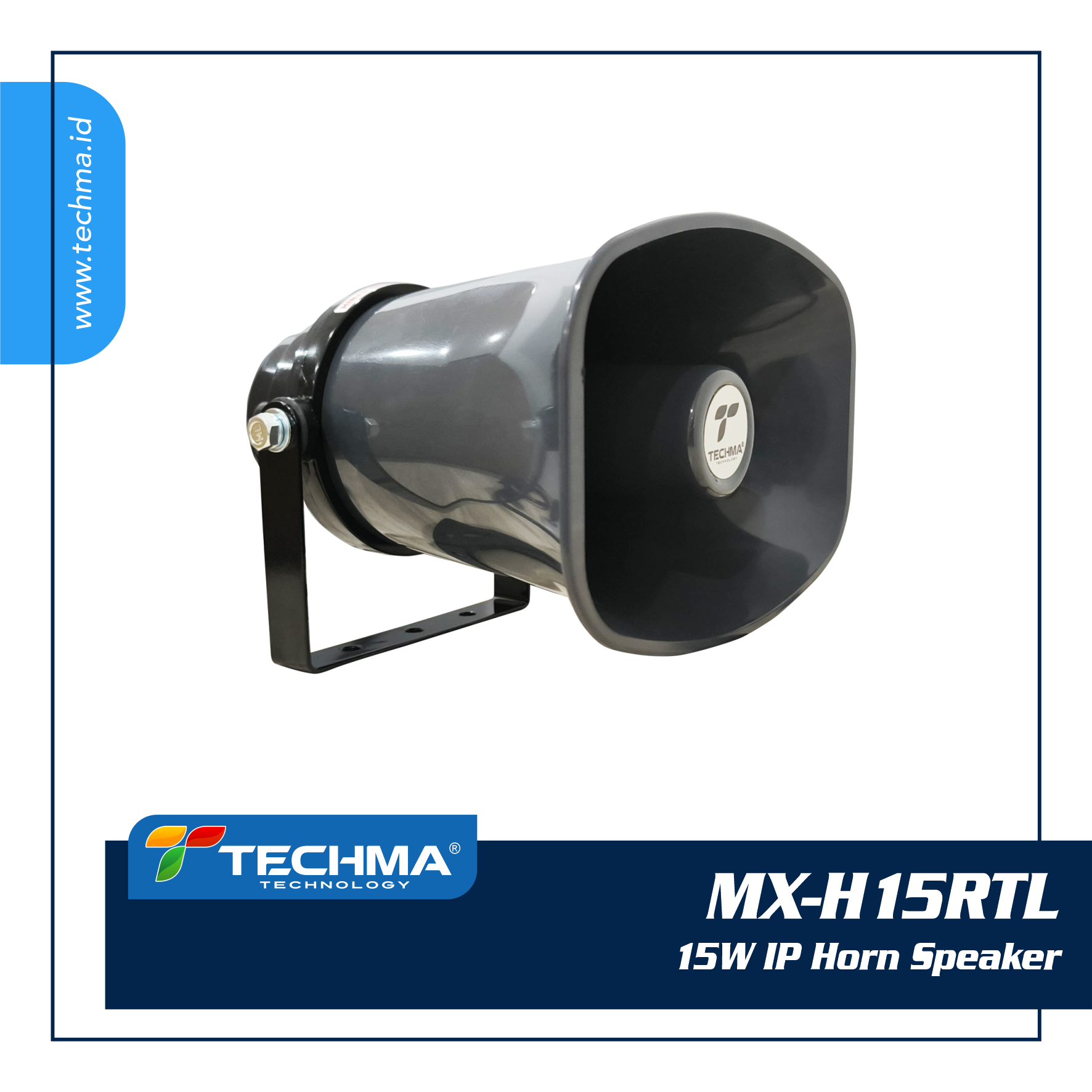

MX-H15RTL
15W IP Horn Speaker
Description
The Network PA Horn Speakers are made of robust, virtualy indestructible ABS or Aluminium ally material offering maximum protection againtst shock and weather making them ideal for mounting in extreme condition with IP65 rated,wheather on vehicle,boats or exposed outdoor installation,all are fitted with asturdy,adjustable mounting bracket. This speaker is an active speaker, inside it is a class D power amplifier installed.
Features
- Network 100BASE-TX,RJ-45 Connector
- Protocol TCP/IP,Multicast,SIP,RTP,IGMP
- Audio codec G.711a/u,G.722,G.729
- RJ-45 Connector digital data audio input
- Built-in of Class D amplifier
- Speaker output 15W/30W/50W
- Power DC 24V or PoE+ (IEEE802.3at/bt
- Installation for indoor or Outdoor
Spesification
Specification:
| Model | MX-H15RTL | ||
|---|---|---|---|
| Rated Power | 15W | ||
| Network | 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector | ||
| Network Protocol | TCP/IP, UDP, Multicast, SIP, RTP, RTCP, ARP, ICMP, IGMP | ||
| Audio Codec | G.711u,G.711a, G.722 | ||
| Audio Format | MP3,WMA,WAV | ||
| Audio bit rate | 8 ~ 320Kbps | ||
| Frequency Respone | 300Hz~17KHz (±3dB) | ||
| Max. Sound Pressure Level | 120dB ±3dB | ||
| Amplifier Rated Output | 15W Class D | ||
| Power Source | 24VDC / PoE 30W | ||
| Broadcasting Mode | Multicast & SIP Broadcasting Mode | ||
| Dispersion angle | H:110°,V:90° | ||
| Dust/Water Protection | IP66 | ||
| Operating Temperature | -30 °C to +65 °C | ||
| Operating Humidity | 90 % RH or less (no condensation) | ||
| Models | Oval | ||
| Finish | ABS & steel bracket | ||
| Color | Black / White | ||
| Dimensions | 220x165x230mm | ||
| Weight | 1.3KG | ||
| Option | Bracket, PoE 30W | ||
