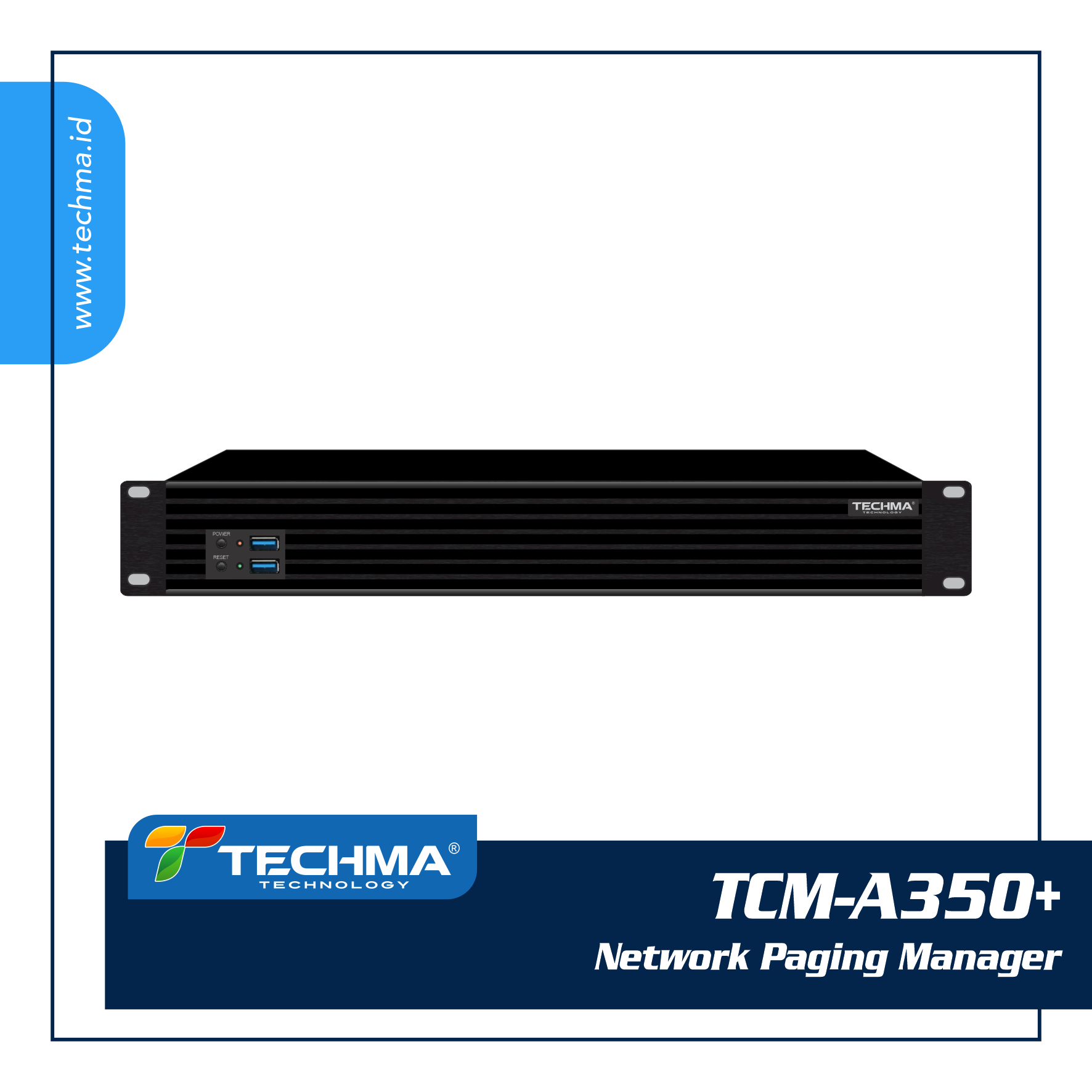

TCM-A350+ PAGA Network Paging Manager
Description
Techma TCM-A350 is a network PAGA manager integrated with IP speaker system, alarm and other IP Audio devices, can manage up to 500 IP Audio devices. It is a cost-effective solution to build an IP Speaker network system or IP Audio Emergency PAGA. Powered by innovative VoIP technology, it provides seamless connectivity to the IP Speaker terminal system. It provides IP Speaker connection from 100 – 500 IP speaker connections or IP Audio terminals. TCM-A350 is capable of broadcasting simultaneously to all IP speaker terminals, as well as according to the configured groups. Web client to monitor the status of which IP Speaker Suitable for PAGA system with complex distribution and scheduling needs between buildings such as government agencies, schools, factories, commercial buildings, residential areas and hospitals, etc.devices are in use, on or off, making it easy for technicians to troubleshoot. Equipped with voice call recording software. Equipped with electronic map to find out the location of active devices. Have audio override priority that can be set or adjusted according to needs such as emergency alarms or other needs..When the primary server fails, the secondary server will automatically transfer all system control to the secondary server.
Features
- Network 1000M Tx, Rj45 Connector
- Protocol Multicast, TCP/IP, UDP, SIP, RTP
- Connected up 500 end point device with perpetual licence
- Multi client user management
- Device status Monitoring dashboard
- E-Map device Location Monitoring dashboard
- Audio Video Intercom, CCTV Camera Linked, Alarm I/O Linked, Fire Gas Detector System linked (FGDS)
- Built-in Audio Timer Scheduling Broadcast
Specification:
| Model | TCM-A350/100 | TCM-A350/200 | TCM-A350/500 |
|---|---|---|---|
| Engine architecture & Storage | Intel Core(TM) powered, 256Gb Storage | ||
| Network | 1000BASE-TX, Auto MDI/MDI-X, RJ-45 connector | ||
| Protocol | TCP/IP, UDP, Multicast, SIP, IGMP | ||
| Audio Codec | G.711u,G.711a, G.722, G.729,Opus | ||
| Operating System | Linux | ||
| Perpetual Licence Device conected | 100 device | 200 device | 500 device |
| User Manager | Multi client user manager | ||
| Remote Operastion | Web Base GUI browser | ||
| Broadcasting call mode | Direct call, by Group/zona, Multicast call, SIP Call, Audio scheduling, Audio Alarm | ||
| PAGA Audio Alarm System | Audio Alarm Message Broadcast, Remote alarm, Manual Call Point Alarm Button CCTV, VMS Linked, I/O controller, SIP, url, third party alarm device | ||
| Monitoring location | Device status dashboard, E-Map, Google Map device location | ||
| Back up system | Auto failover system ( need main & slave device server) | ||
| Working Temperature | -10°C ~ 60°C | ||
| Power Supply | AC 190~240V, 50/60Hz | ||
| Dimentions & Platform | 482mm(W) x 67mm(H) x 250mm(D), 19″ 1.5U | ||
| Weight | 3.5kg | ||
