6.5″ Metal Ceilling Speaker with Dome

Feature

These Ceiling Speakers can deliver incredible stereo sound to any room or commercial applications, from speakers you can barely see by being installed directly overhead, without having to sacrifice any wall, floor, or shelf space. Built-in step-down transformer to simplify impedance calculations and to minimize power loss over the speaker cables, are most appropriate for high-voltage audio distribution systems. Output power can be selected 3W/6W on the rear terminal for 70V/100V input. Easy to install, requiring only that you cut a hole, feed the wires through, and simply drop the speaker by letting the spring clamps seize the ceiling with no extra assembly or mess. These speakers are ideally suited for installation in areas for the sound reproduction of reading announcements, declaring states of emergency, and playing background music such as shopping malls, restaurants, metro stations, hotels, coffee bars etc..

Download PDF Price Video Solution
Spesification

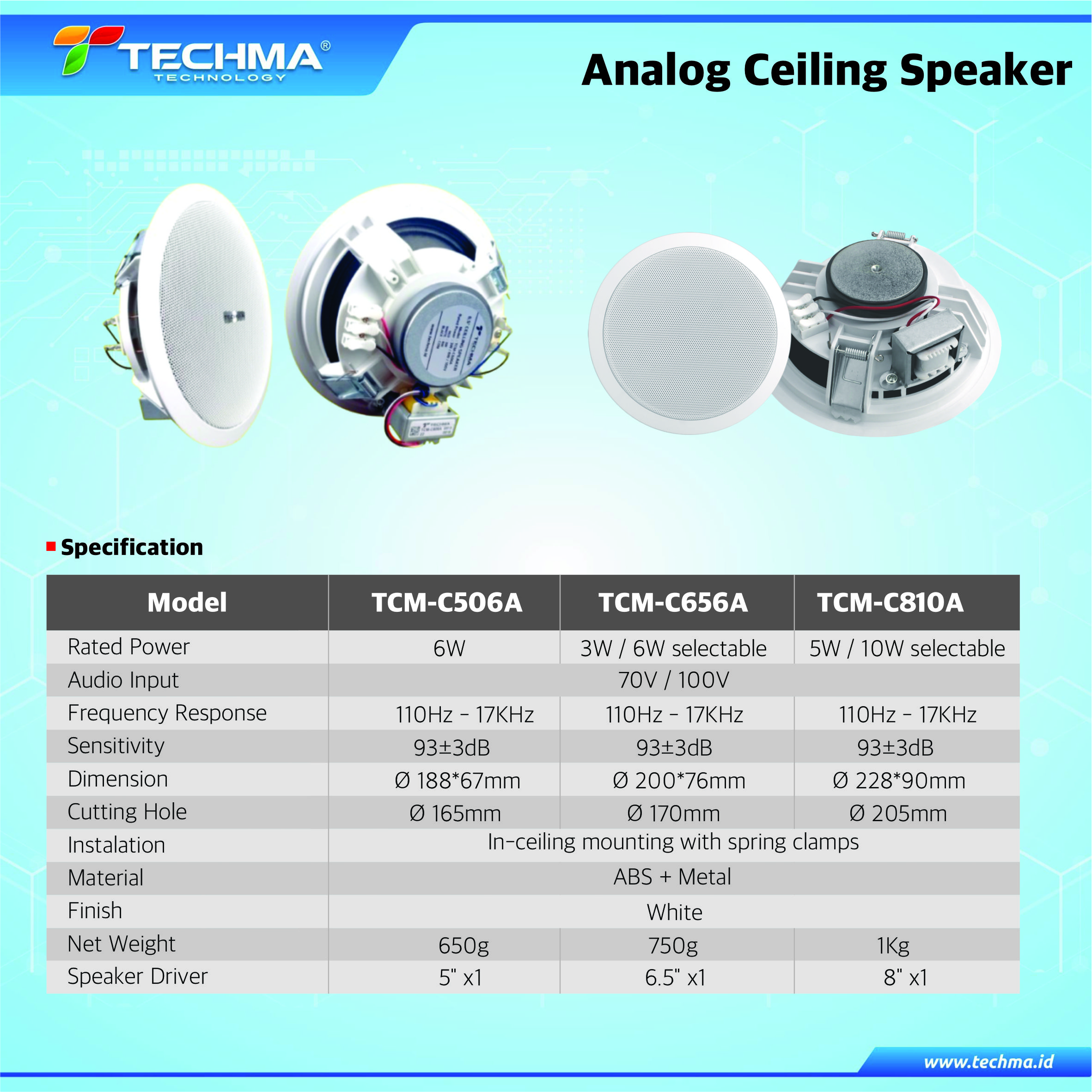

Specification:

ModelTCM-C656A
Rated Power3W / 6W selectable
Audio Input70V / 100V
Frequency Response110Hz – 17KHz
Sensitivity93±3dB
DimensionØ 200*76mm
Cutting HoleØ 170mm
InstallationIn-ceiling mounting with spring clamps
MaterialABS + Metal
FinishWhite
Net Weight750g
Speaker Driver6.5″ x1
