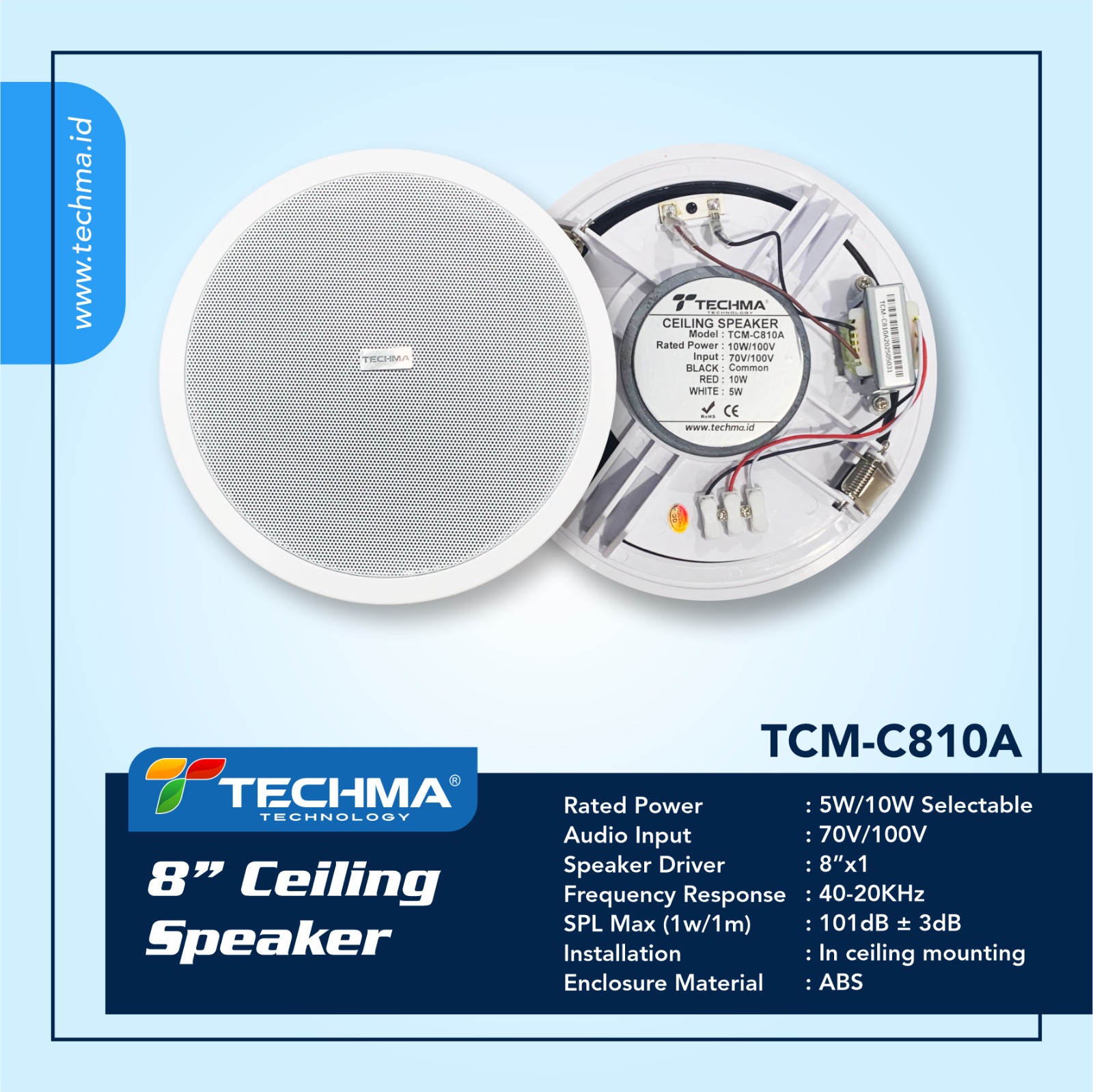

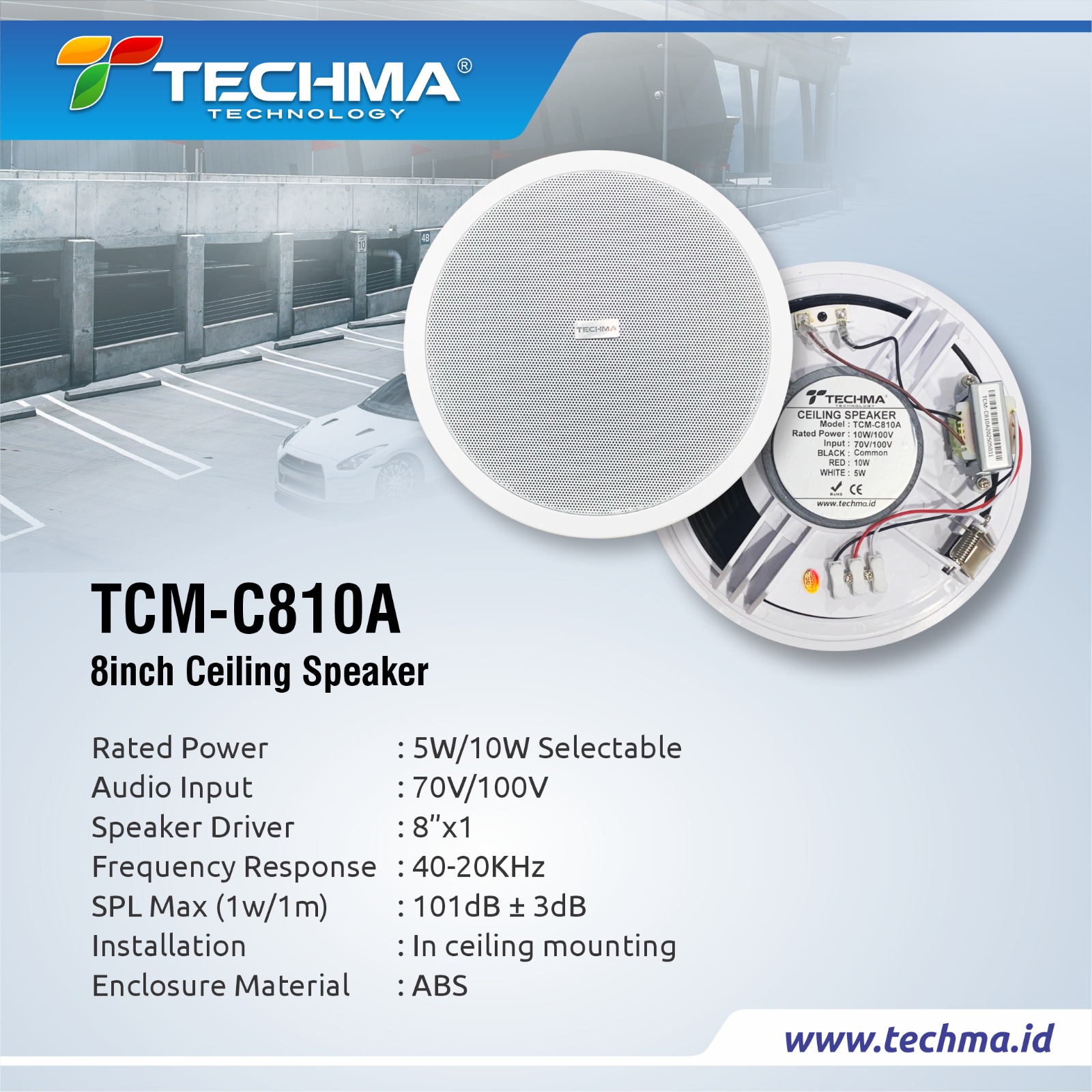

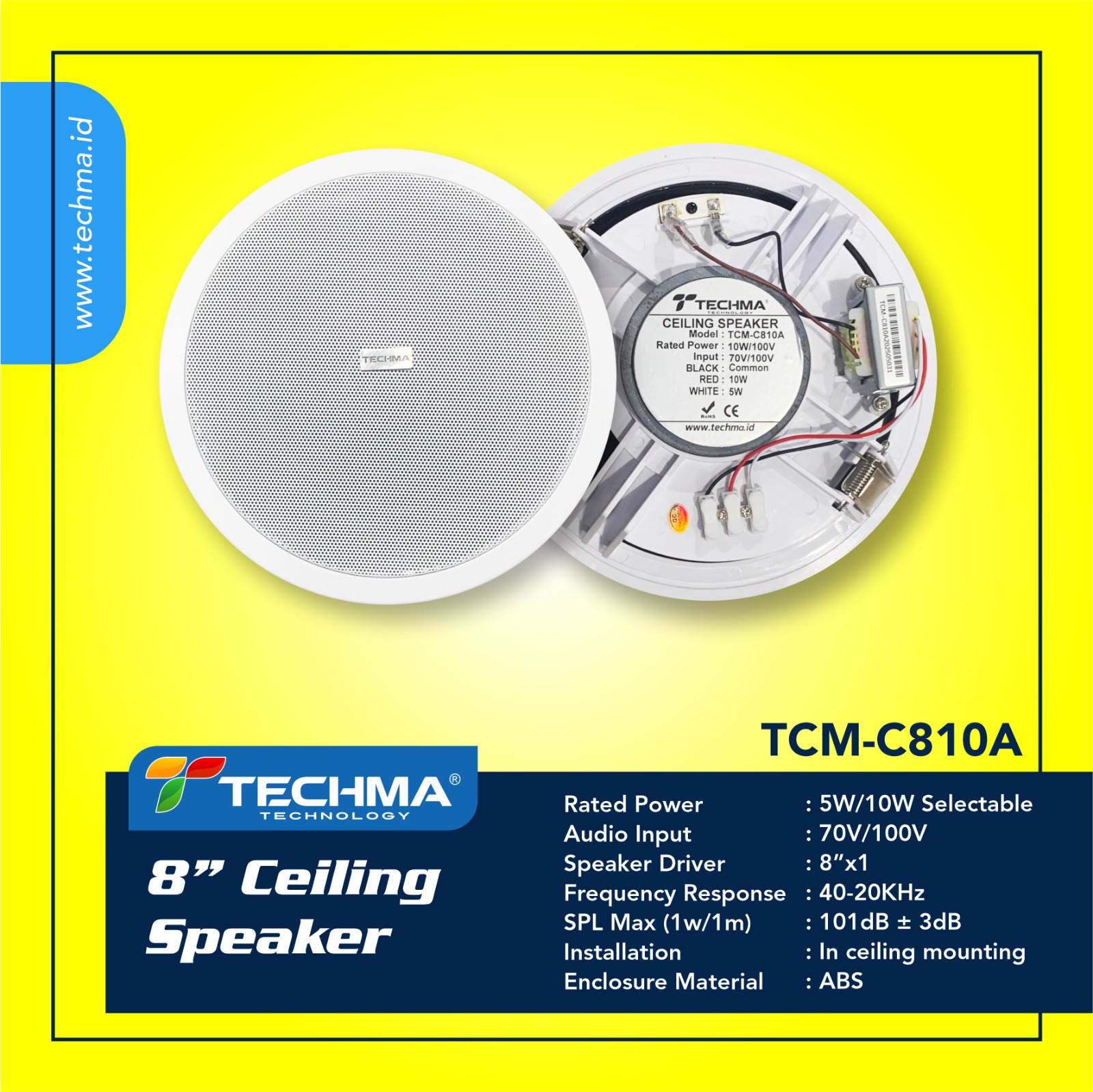

8″ Metal Ceilling Speaker

Feature

These Ceiling Speakers can deliver incredible stereo sound to any room or commercial applications, from speakers you can barely see by being installed directly overhead, without having to sacrifice any wall, floor, or shelf space. Built-in step-down transformer to simplify impedance calculations and to minimize power loss over the speaker cables, are most appropriate for high-voltage audio distribution systems. Output power can be selected 3W/6W on the rear terminal for 70V/100V input. Easy to install, requiring only that you cut a hole, feed the wires through, and simply drop the speaker by letting the spring clamps seize the ceiling with no extra assembly or mess. These speakers are ideally suited for installation in areas for the sound reproduction of reading announcements, declaring states of emergency, and playing background music such as shopping malls, restaurants, metro stations, hotels, coffee bars etc..

Download PDF Price Video Solution
Spesification

Specification:

ModelTCM-C810A
Rated Power5W / 10W selectable
Audio Input70V / 100V
Frequency Response40Hz – 20KHz
Sensitivity101±3dB
DimensionØ 280*92mm
Cutting HoleØ 250mm
InstallationIn-ceiling mounting with spring clamps
MaterialABS + Metal
FinishWhite
Net Weight750g
Speaker Driver8″ x1
