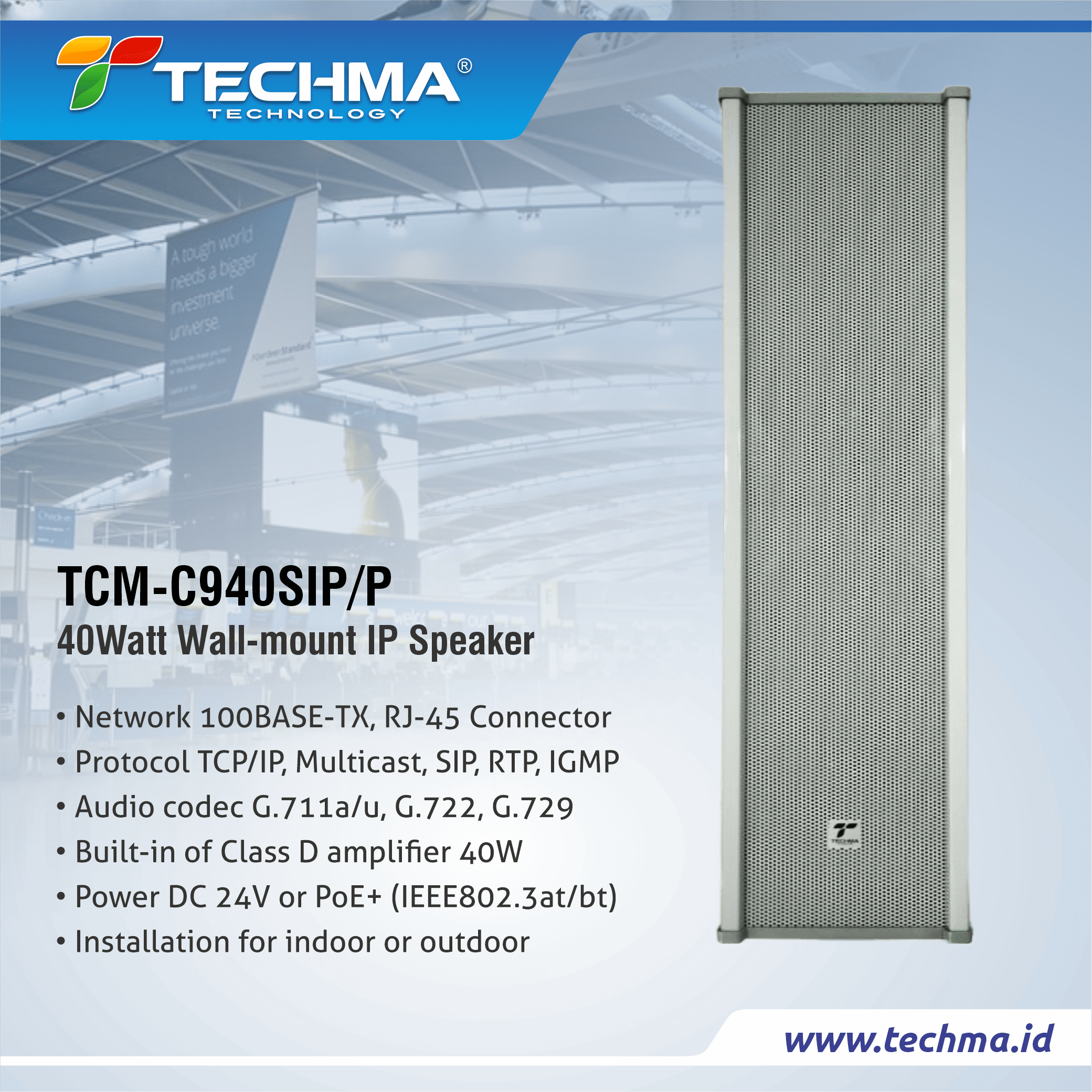

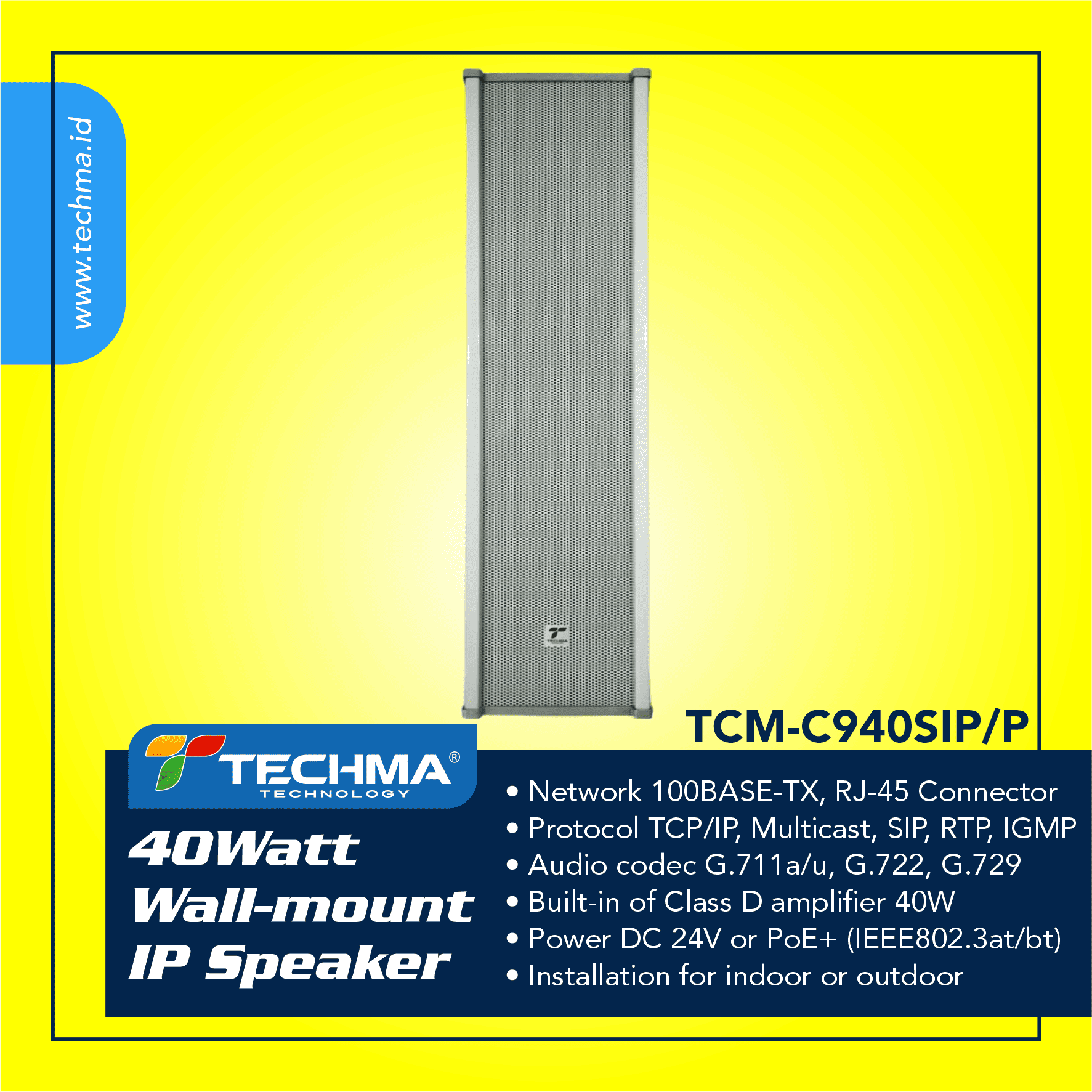

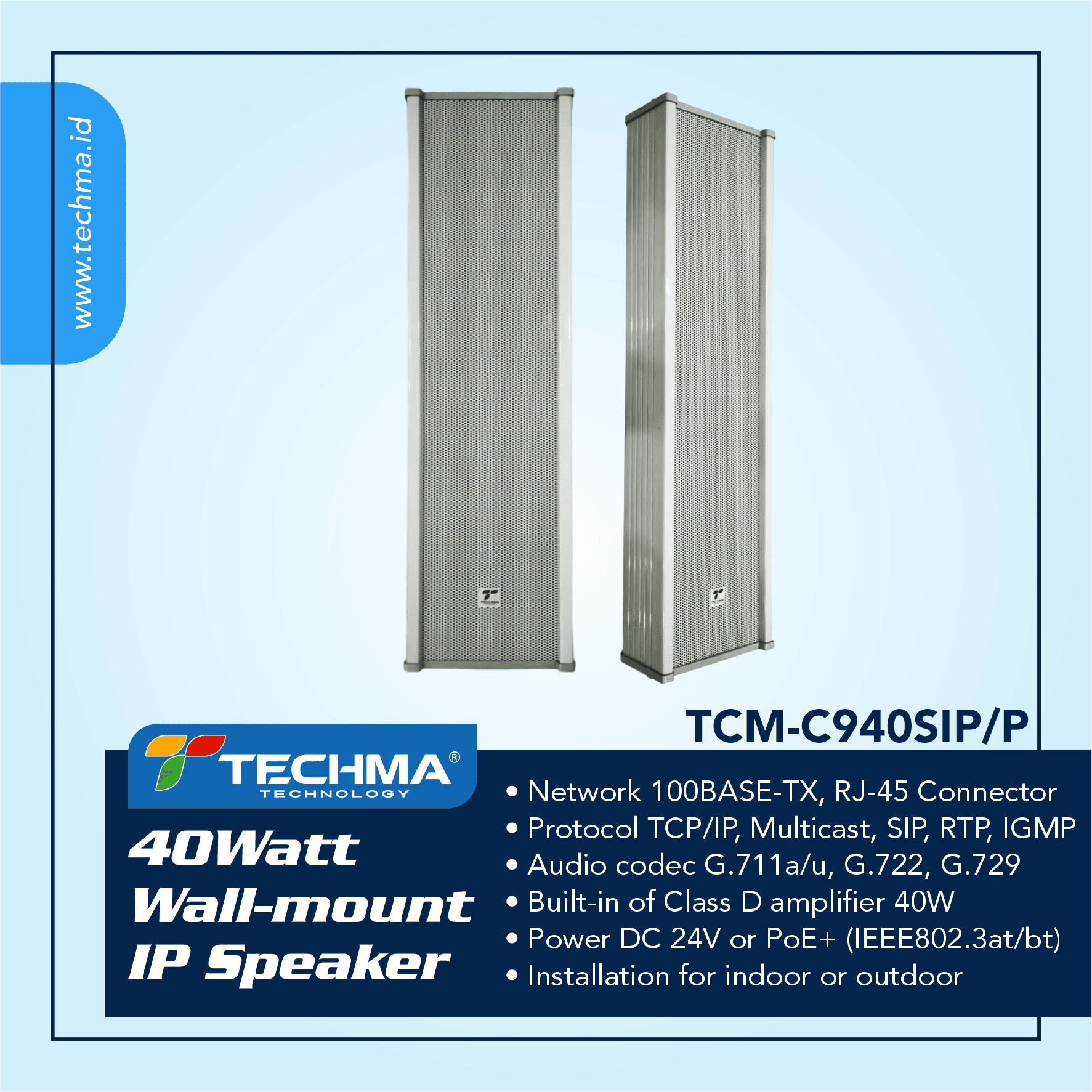

TCM-C940SIP/P
40Watt Wall-mount IP Speaker
Description
The Network PA Column Speakers are made of robust,virtualy indestructible ABS or Aluminium ally material offering maximum protection againtst shock and weather making them ideal for mounting in extreme condition with Ip66 rated,wheather on vehicle,boats or exposed outdoor installation,all are fitted with asturdy,adjustable mounting bracket.This speaker is an active speaker, inside it is a class D power amplifier installed.
Feature :
- Network 100BASE-TX,RJ-45 Connector
- Protocol TCP/IP,Multicast,SIP,RTP,IGMP
- Audio codec G.711a/u, G.722, G.729
- Built-in of Class D amplifier 40W
- Power DC 24V or PoE+ (IEEE802.3at/bt)
- Installation for indoor or Outdoor
Spesification
Specification:
| Model | TCM-C940SIP/P |
|---|---|
| Rated Power | 40W |
| Network | 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector |
| Network Protocol | TCP/IP, UDP, Multicast, SIP, RTP, RTCP, ARP, ICMP, IGMP |
| Audio Codec | G.711u,G.711a, G.722 |
| Audio Format | MP3,WMA,WAV |
| Audio Bit Rate | 8 ~ 320Kbps |
| Frequency Response | 100Hz-15KHz(±3dB) |
| Max. SPL | 92dB ±3dB |
| Amplifier Rated Output | 40W Class D |
| Power Source | 24VDC / PoE |
| Broadcasting Mode | Multicast & SIP Broadcasting Mode |
| Speaker Drive | 4″*4 |
| Instalation & Protection | IP66 |
| Operating Temperature | -30 °C to +65 °C |
| Operating Humidity | 90 % RH or less (no condensation) |
| Material | Aluminium alloy |
| Color | Gray ,Black Frame |
| Dimensions | 613x152x100mm |
| Weight | 3.9Kg |
