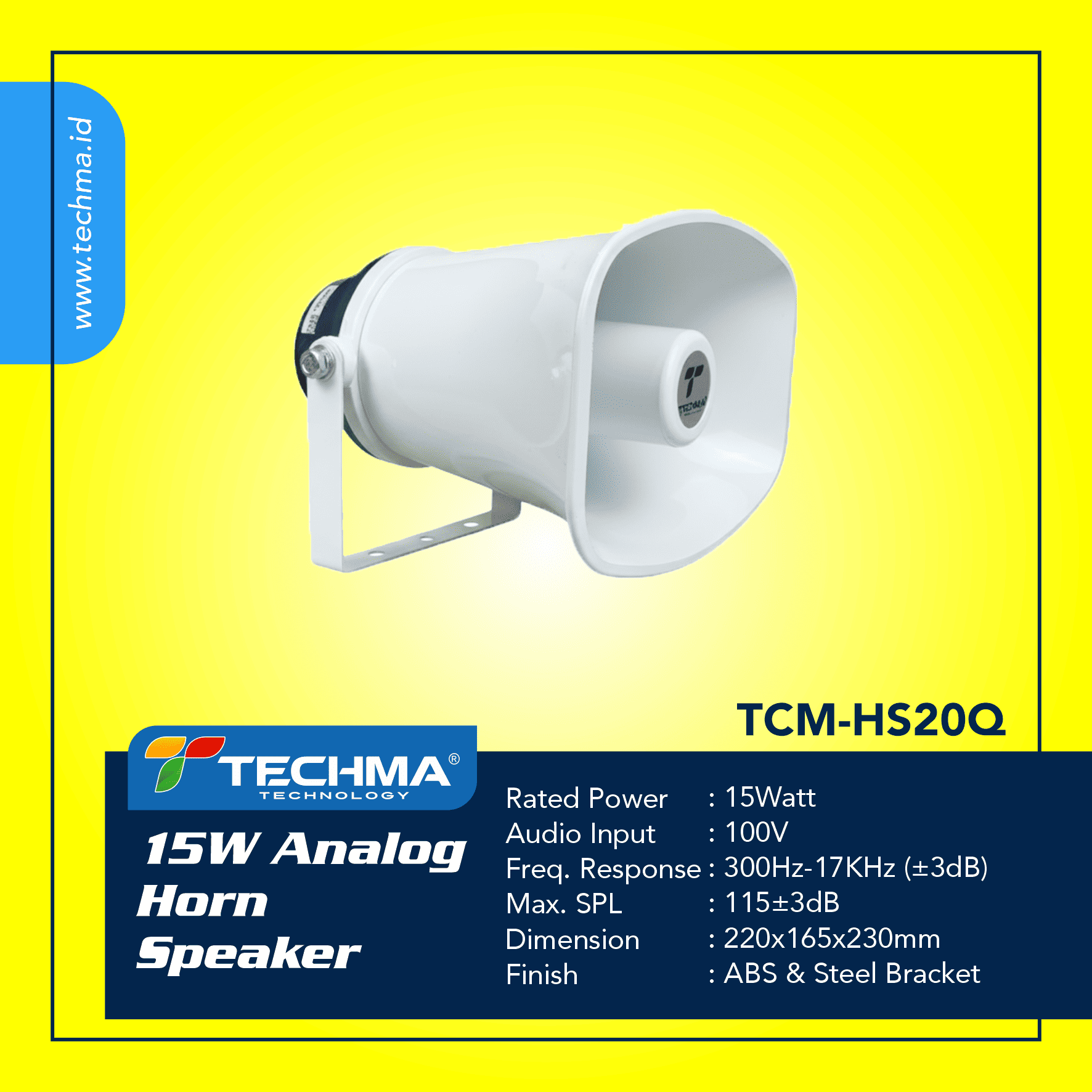

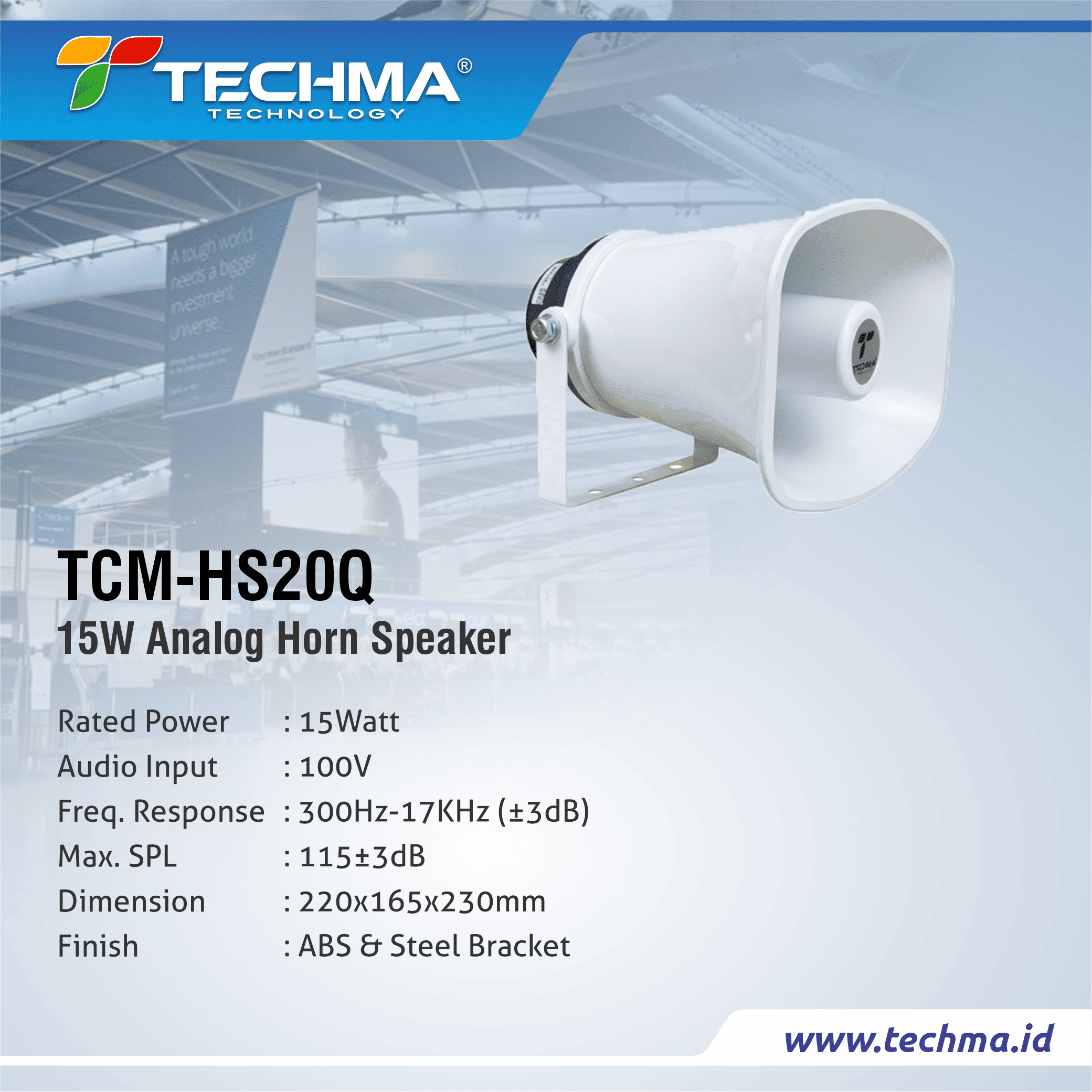

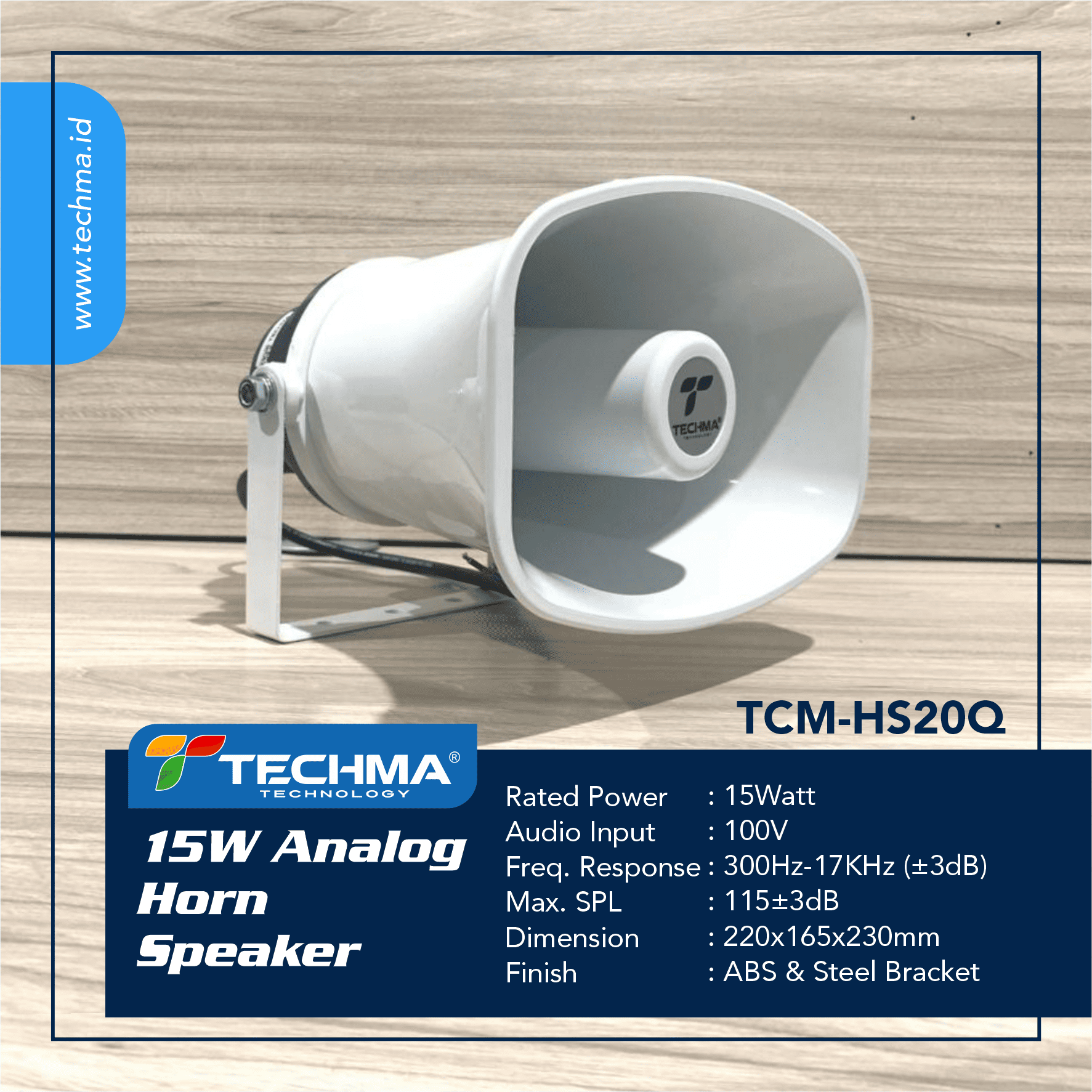

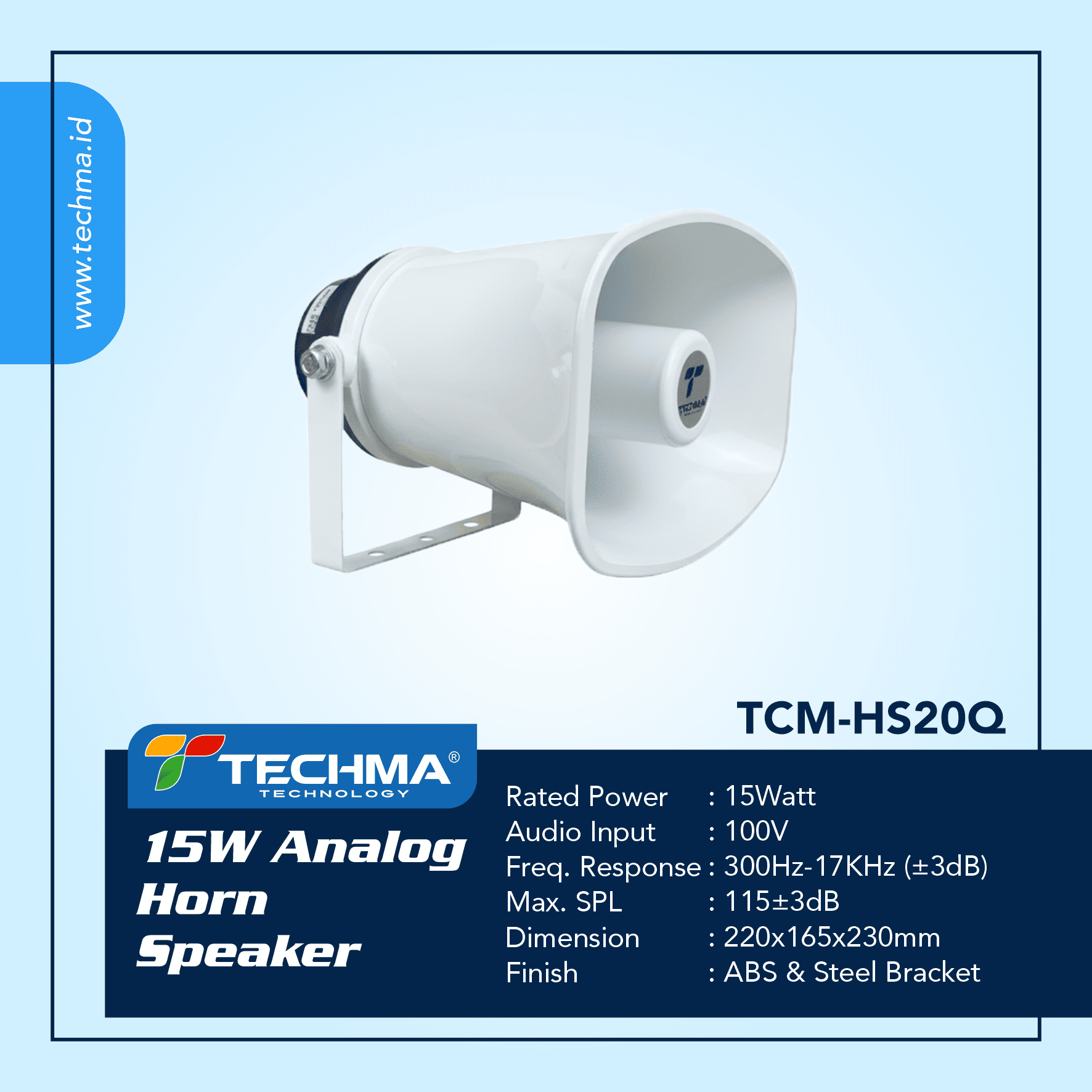

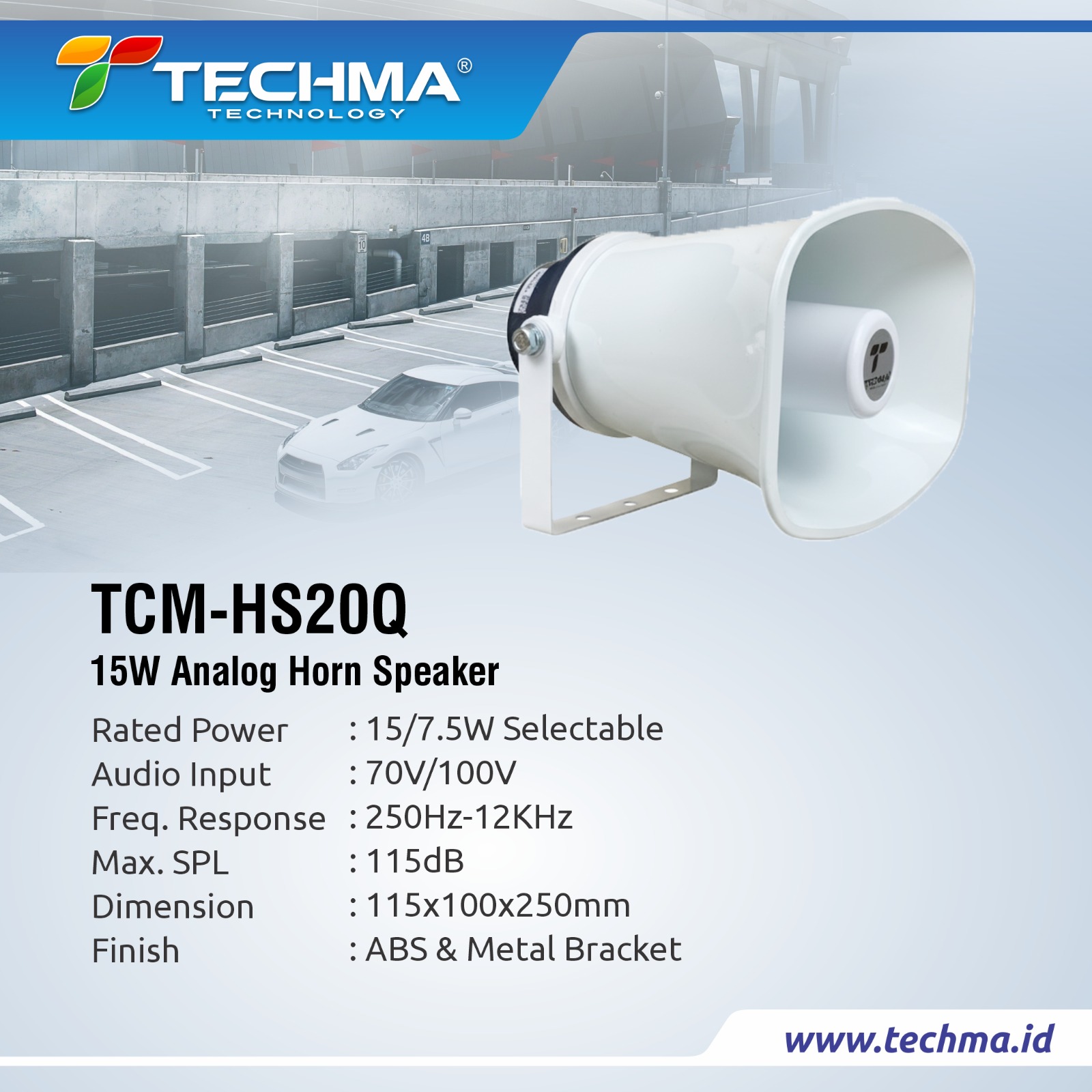

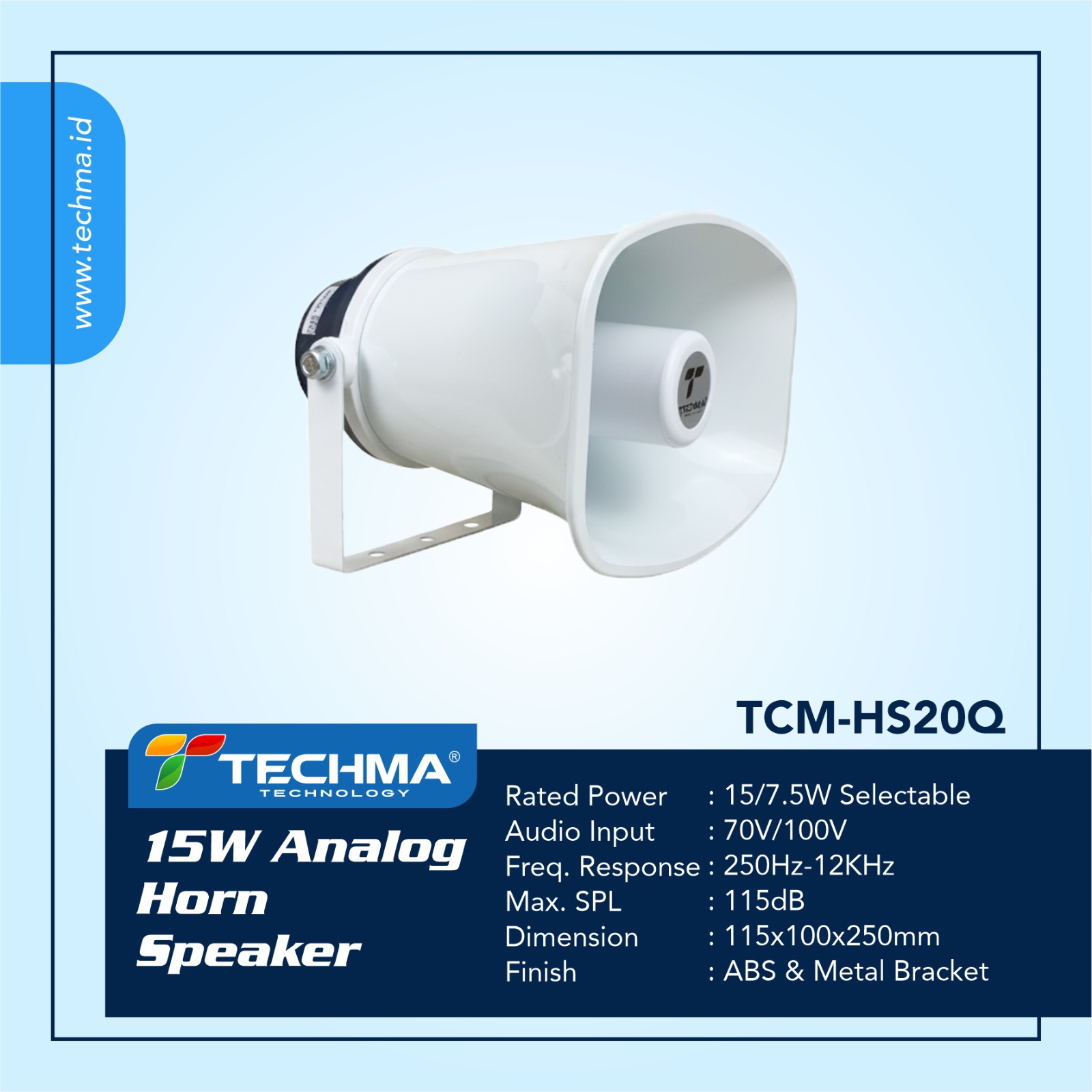

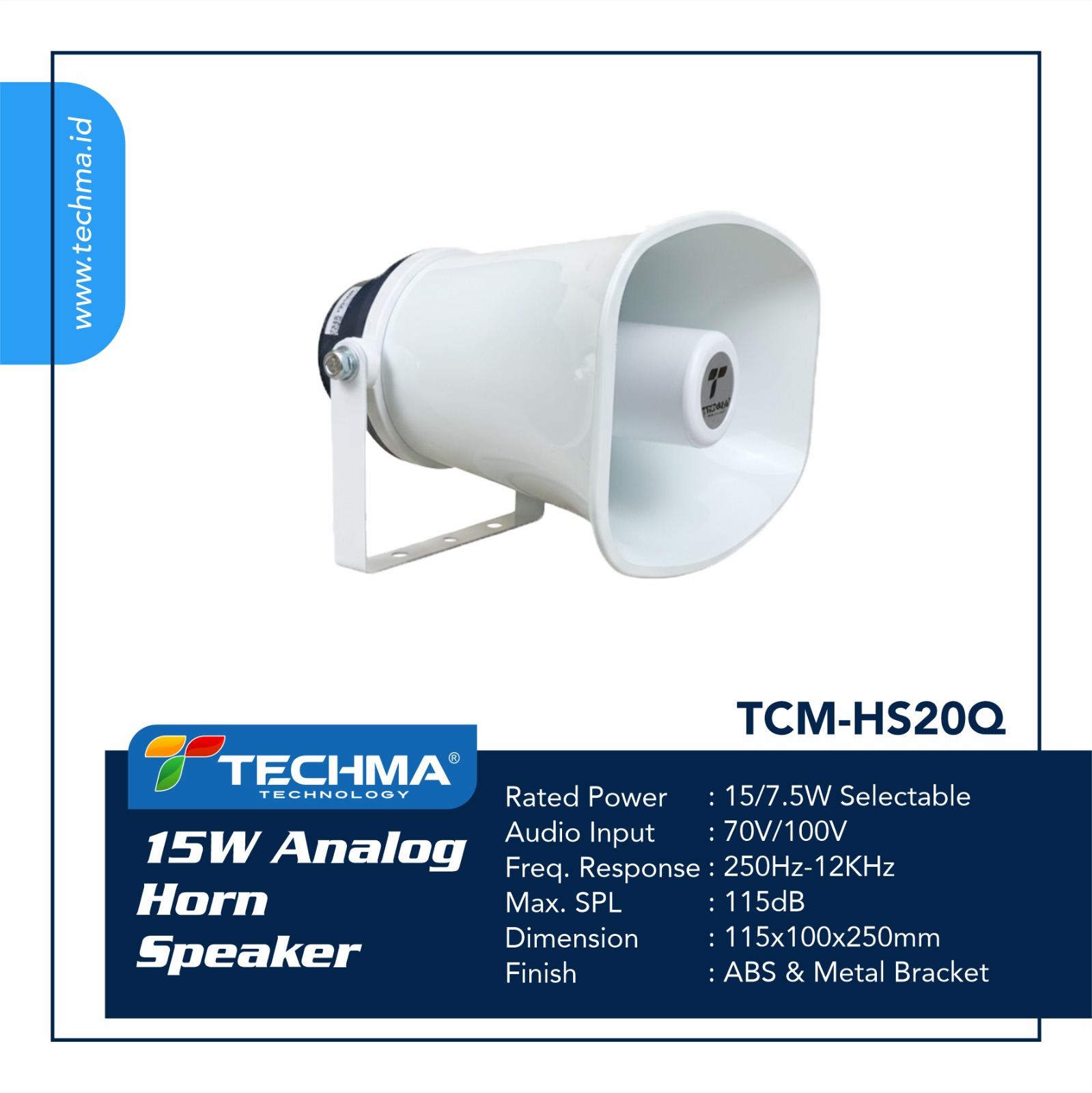

TCM-HS20Q
15W Analog Horn Speaker
Description & Feature
Techma Analog Horn Speaker is an analog speaker designed to deliver sound with wide coverage and optimal clarity. Operating without the need for digital or network connections, this device is fully compatible with conventional audio systems. Known for its ability to project sound across large areas, it is ideal for use in announcement systems, emergency alerts, and various applications in industrial, commercial, and public environments. Built from durable materials with a robust construction, the Techma Analog Horn Speaker is suitable for both indoor and outdoor use under various weather conditions.
Feature :
- Weather-resistant analog horn speaker for outdoor use
- Exceptional sound and vocal clarity
- Easy and quick installation to reduce labor costs — suitable for both indoor and outdoor mounting
- Compatible with public address systems
- High sensitivity for efficient sound projection
- Rust-resistant bracket for strong and long-lasting installation
- ATEX Explosion-proof
Certification: Ex d e IIC T6 Gb (Models: TCM-EX15A, TCM-EX30A)
Spesification
Specification:
| Model | TCM-HS20Q |
|---|---|
| Rated Power | 15W |
| Audio Input | 300Hz~7,5KHz |
| Frequency Response | 350Hz-7KHz(±3dB) |
| Max. SPL | 115±3dB |
| Dust/Water Protection | IP66 |
| Operating Temp. | -30°C ~ 65°C |
| Explosion-proof Protection | N/A |
| Operating Humidity | 90% RH or less (no condensation) |
| Models | Oval |
| Finish | ABS & Steel bracket |
| Color | Black/White |
| Dimension | 220x165x230mm |
| Weight | 1,3Kg |
