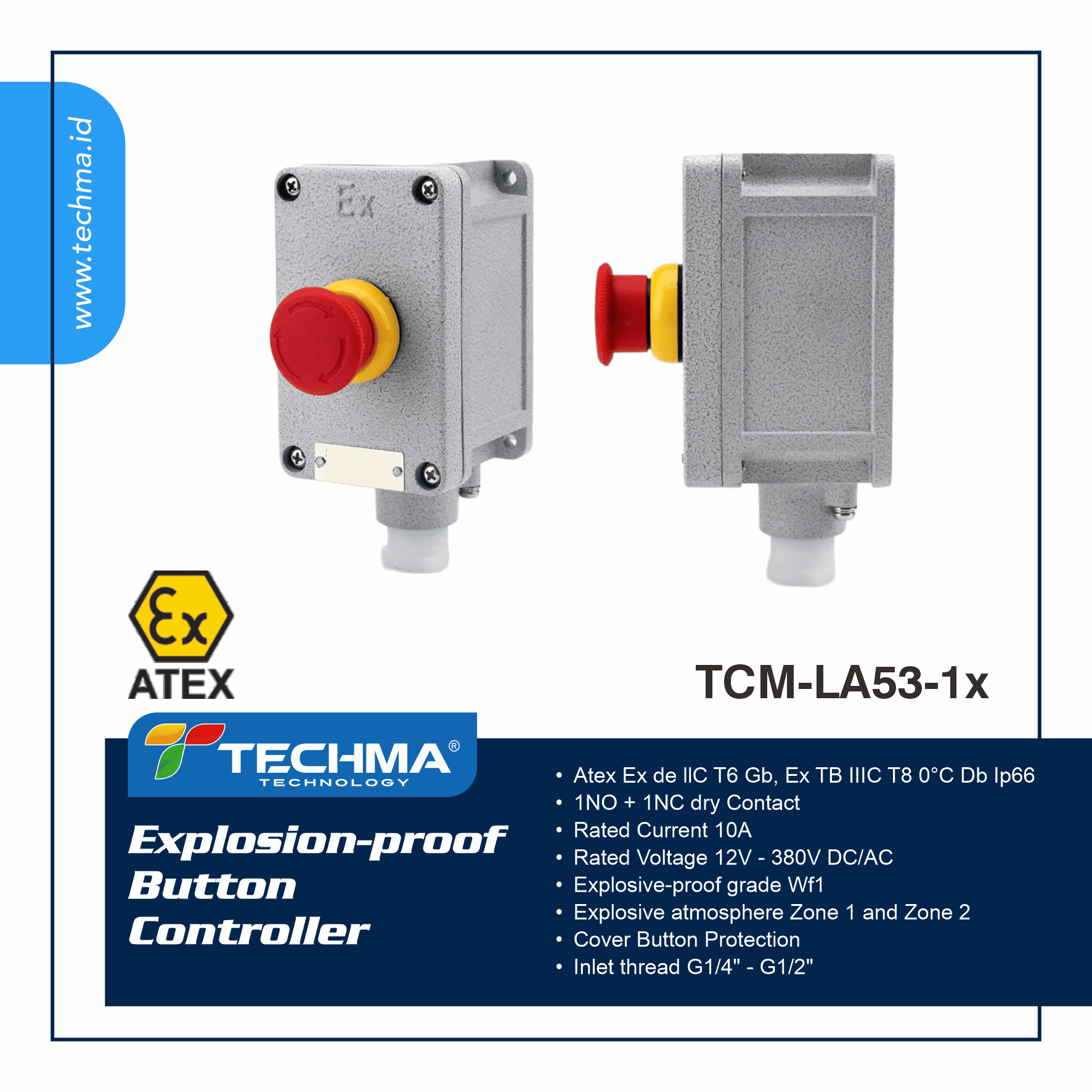

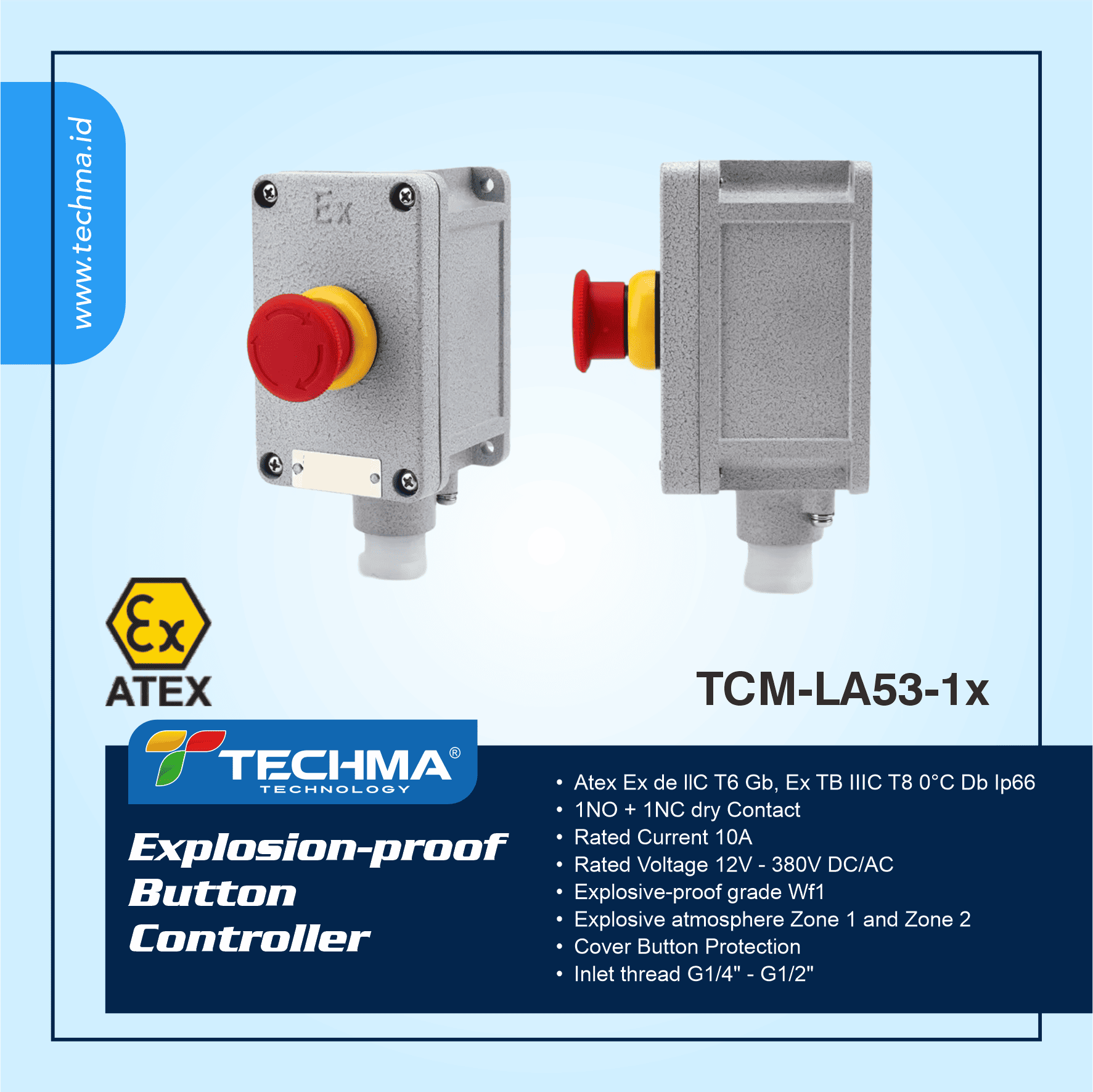

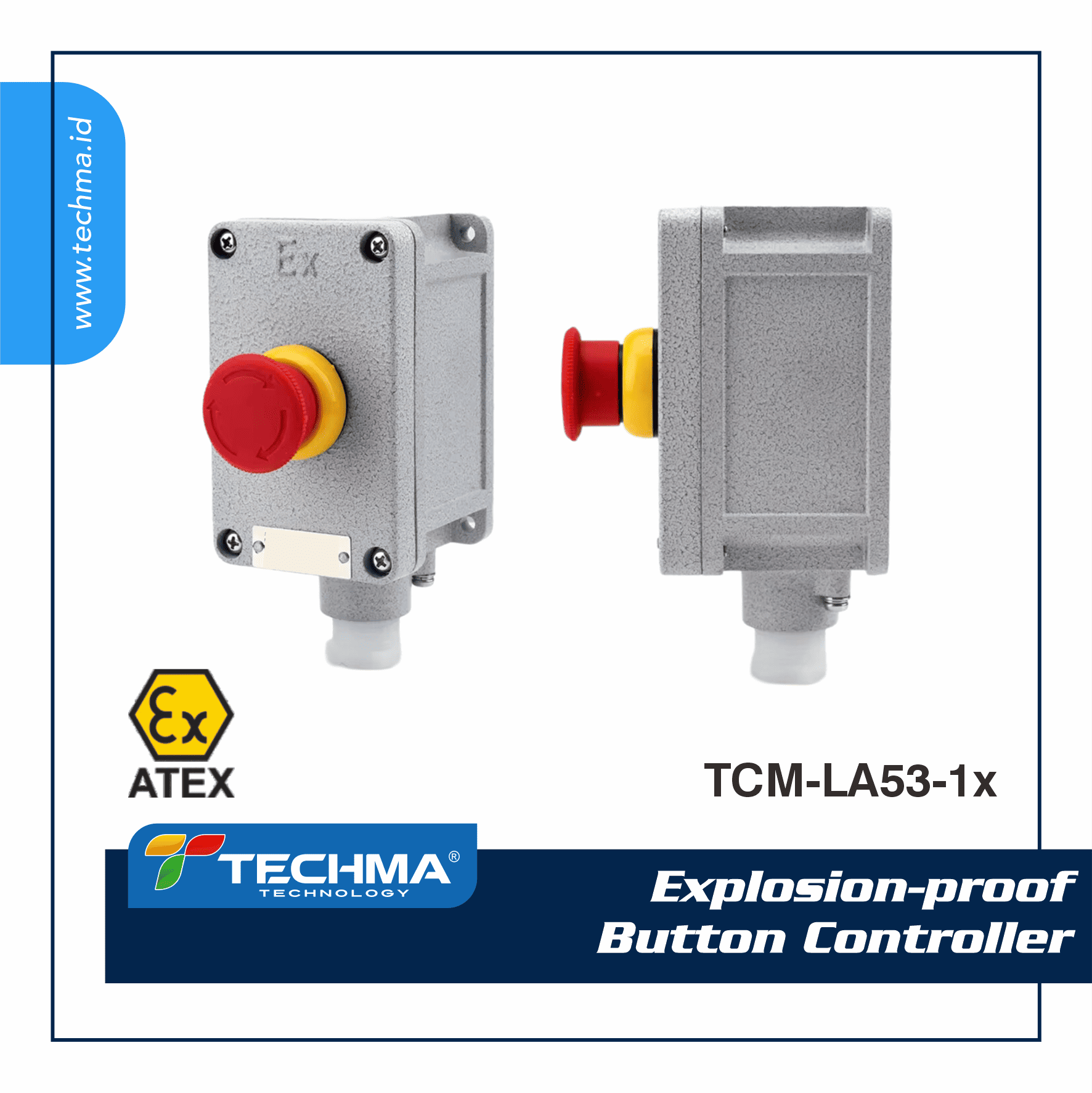

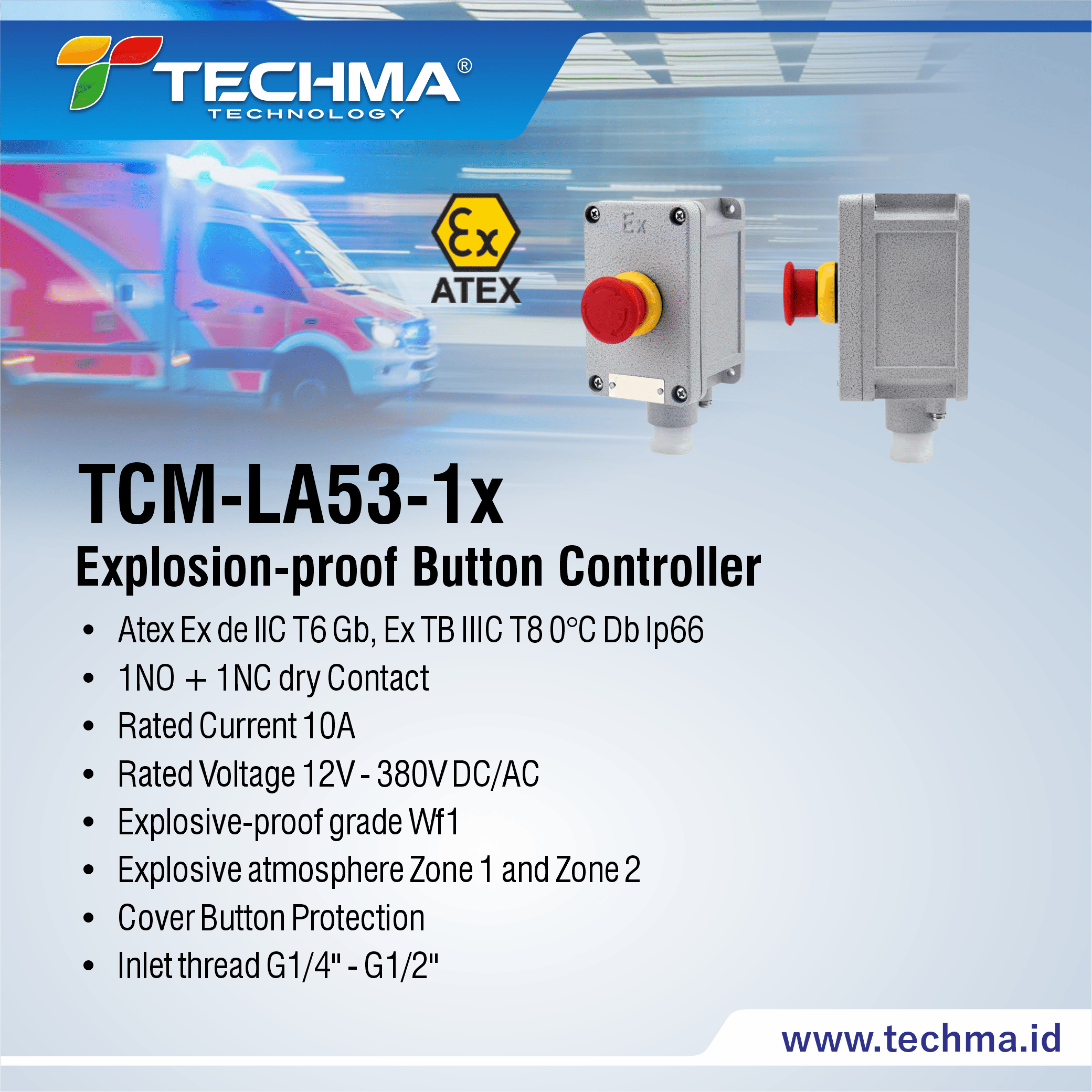

Explosion-proof Button Controller
Feature :
- Enclosure is die casted aluminum alloy with high voltage electrostatic powder coated surface after shot blasted,
- Built‑in flameproof button and increased safety.
- Button with Cover protection for safety.
- Wiring with steel tube or cable
- Mounting Screw for bracket instalation.
Application :
- Designed for Explosive atmosphere Zone 1 and Zone 2
- Designed for Groups IIA,IIB, IIC
- Designed for Combustible dust Zone20, Zone21, Zone22
- Designed for Temperature classes T1‑T6 Designed for sites with explosive atmosphere such as petroleum exploitation, refinery, chemistry, medicine, textile, printing, military and military etc
Spesification
Specification:
| Technical Parameter | |
|---|---|
| Meet a criterion | GB3836.1, GB3836.2, GB3836.3, GB12476,1, IEC60079‑0, IEC60079‑1, IEC60079‑7, IEC61241‑1, EN60079‑0,EN60079‑1, EN60079‑7, EN61241‑1 |
| Explosion-proof mark | Atex Ex de llC T6 Gb, Ex TB IIIC T80°C Db IP66 |
| Rated voltage | 12V – 380V DC/AC |
| Contact / Current | 1NO+1NC /10A |
| Button Protection | With Cover Button |
| Explosion-proof grade | Wf1 |
| Inlet thread | G1/4″-G1/2″ |
| Cable outer diameter | 9mm – 14mm |
