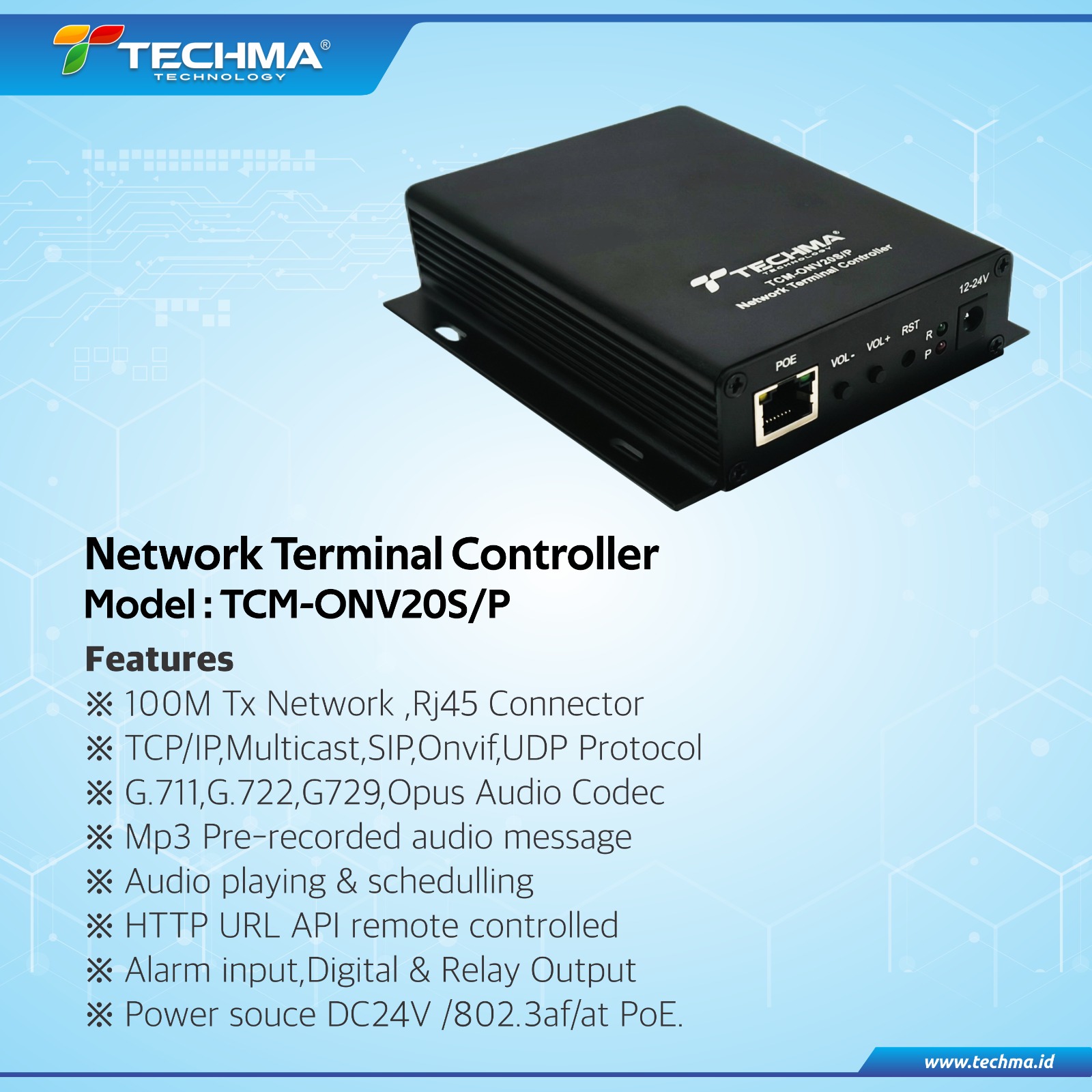

TCM-ONV20S/P Network Terminal Controller
Description
TCM-ONV20S/P is Network Terminal Controller a IP based PAGA adapter that can convert analog to IP solution. It’s small and portable design with black outlook. The various input interfaces make it possible for quickly configure intercom,paging, digital alarm solution. It’s compatible with SIP & ONVIF protocol that can be used in VoIP and security audio alarm field. It supports two-way intercom communication. Flexible Alarm in and out solutions can controlled by input,, HTTP URL, and relay out.MP3pre-recorded message can play any time and schedulling.
Features
- 100M Tx Network, Rj45 Connector
- TCP/IP, Multicast, SIP, Onvif, UDP Protocol
- G.711,G.722,G729, Opus Audio Codec
- Mp3 Pre-recorded audio message
- Audio playing & schedulling
- HTTP URL API remote controlled
- Alarm input, Digital & Relay Output
- Power souce DC24V/802.3af/at PoE.
Spesification
Specification:
| Model | TCM-ONV20SIP |
|---|---|
| Network | 10BASE-T/100BASE-TX (RJ45) |
| Protocol | TCP/IP,Multicast,SIP,Onvif,UDP |
| Audio Codec | G.711,G.722,G729,Opus |
| Audio input | 1x terminal block line/mic |
| Audio output | 2x Audio line output & Speaker Output |
| Power Amp | Built-in 20W Class D Power Amplifier |
| Audio File | Mp3 Pre-recorded audio message |
| Audio playing & schedulling | |
| Alarm input | 2x terminal block no-voltage alarm input |
| HTTP URL API remote controlled | |
| Alarm output | 1x Digital Output |
| 1x Relay Output (Normally Open) | |
| Power Source | DC24V / 802.3af/at PoE |
| Operating temperature | -10 °C to +50 °C |
| Finish | Steel plate, black |
| Dimensions | 105 x 44 x 112 mm (W x H x D) |
| Weight | 750g |
