Network Emergency Audio Router
Descriptions
TCM-RT112E is an audio router that functions to change and transmit analog audio sources into audio data via a LAN network. The audio router can be integrated with other devices such as audio interfaces, mixers, and other audio devices. The audio router is able to select the target IP audio device according to your choice.
Features
- 10BASE-T/100BASE-TX (RJ45)
- TCP/IP, Multicast, SIP, UDP Protocol
- G.711,G.722,G729 Audio Codec

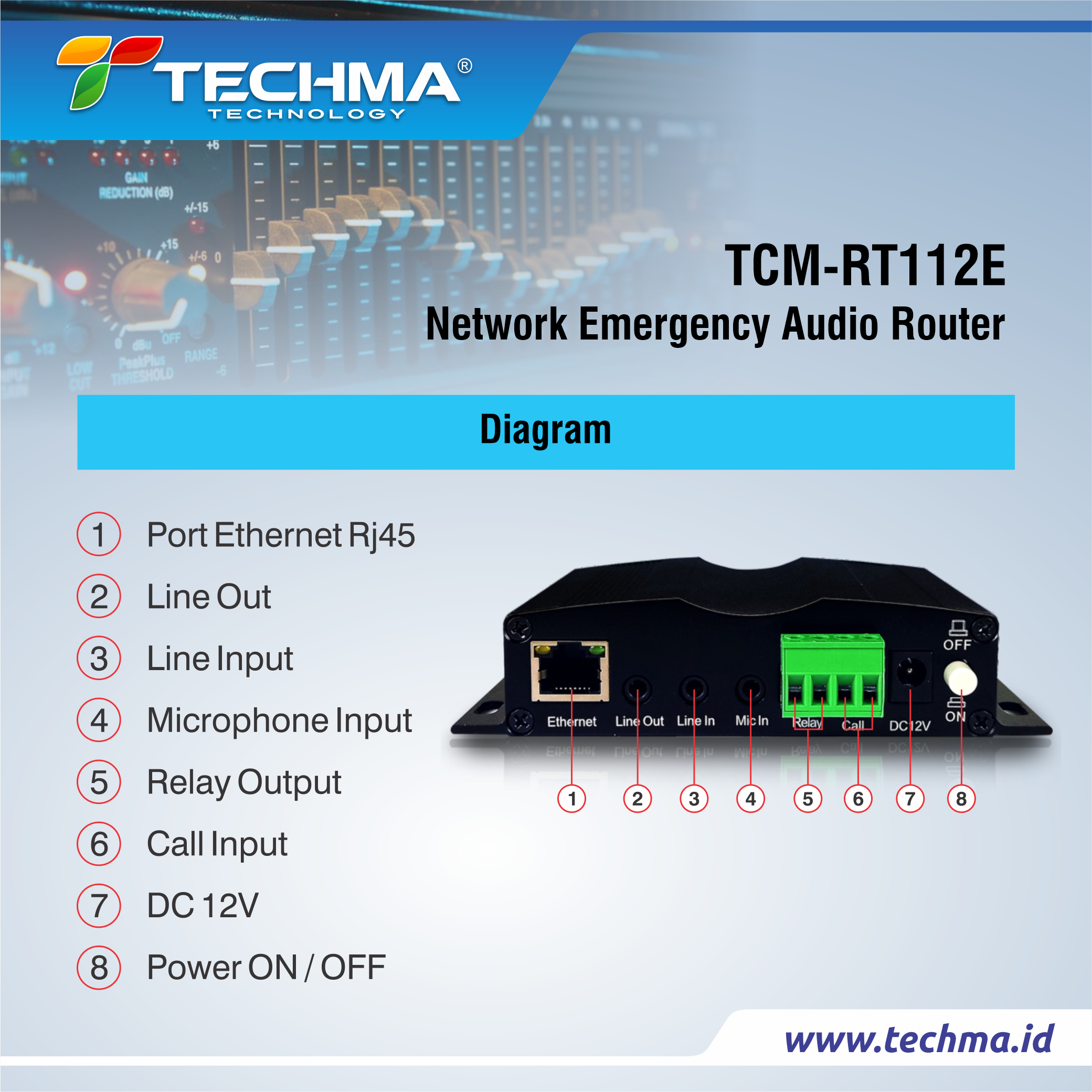

- 1x Audio input, 1x Audio Output
- 1x Microphone input
- 1ch trigger input
- 12VDC Alarm out
- Power souce DC 12V-24V

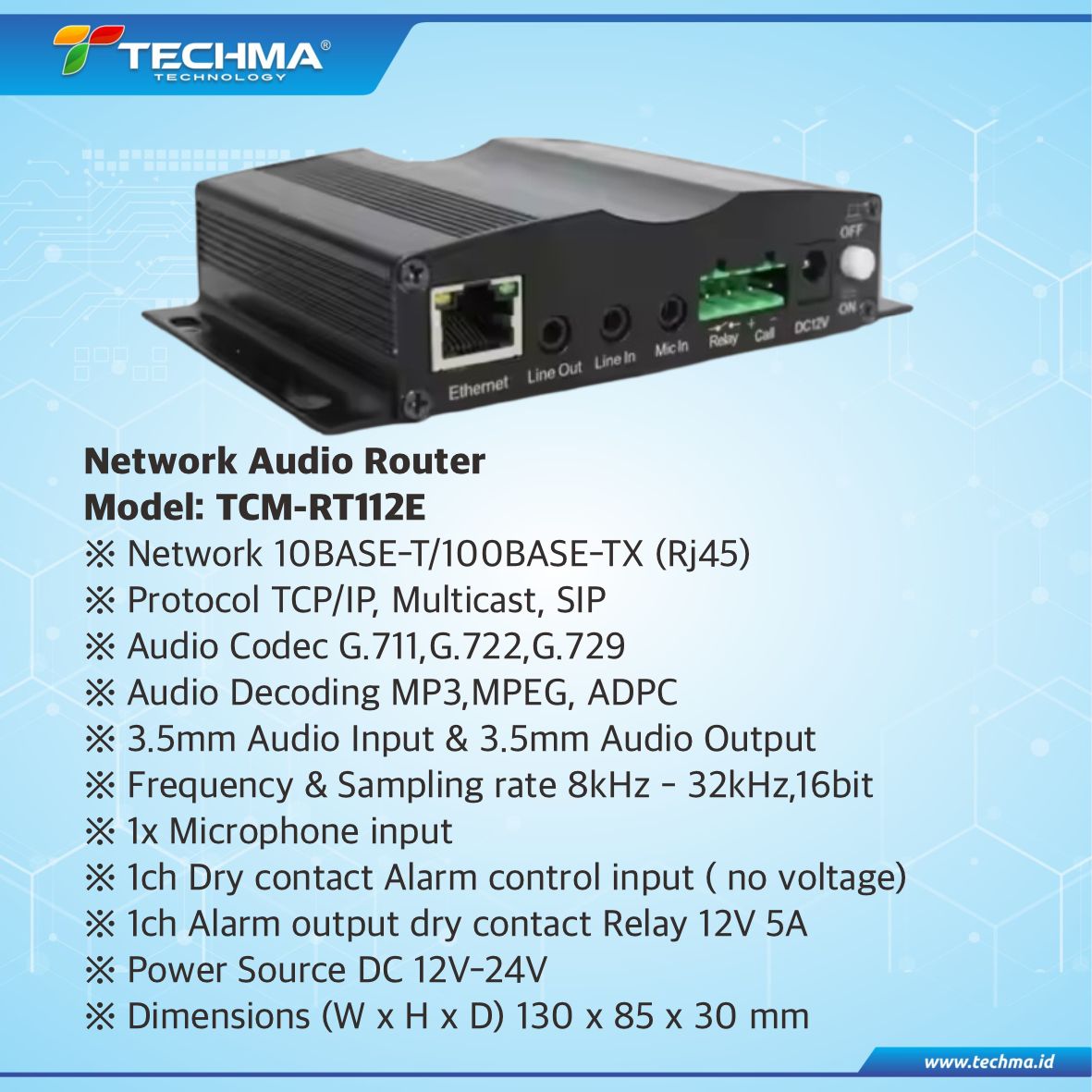

Spesification
Specification:
| Model | TCM-RT112E |
|---|---|
| Network | 10BASE-T/100BASE-TX (RJ45) |
| Protocol | TCP/IP,Multicast,SIP |
| Audio Codec | G.711,G.722,G.729 |
| Audio Decoding | MP3,MPEG,ADPC |
| Audio Input / Output | 1x 3.5mm input, 1x 3.5mm Output |
| Frequency & Sampling rate | 8kHz – 32kHz,16bit |
| Microphone & Frequency | 1x Mic input & 12.5Hz – 32kHz |
| Alarm output | 1x dry contact Relay 12V 5A |
| Power Source | DC 12V -24V |
| Operating temperature | -10 °C to +65 °C |
| Form Factor & Finish | Wall-mount, stell Black color |
| Dimensions (W x H x D) | 130 x 85 x 30 mm |
| Weight | 0.75kg |
