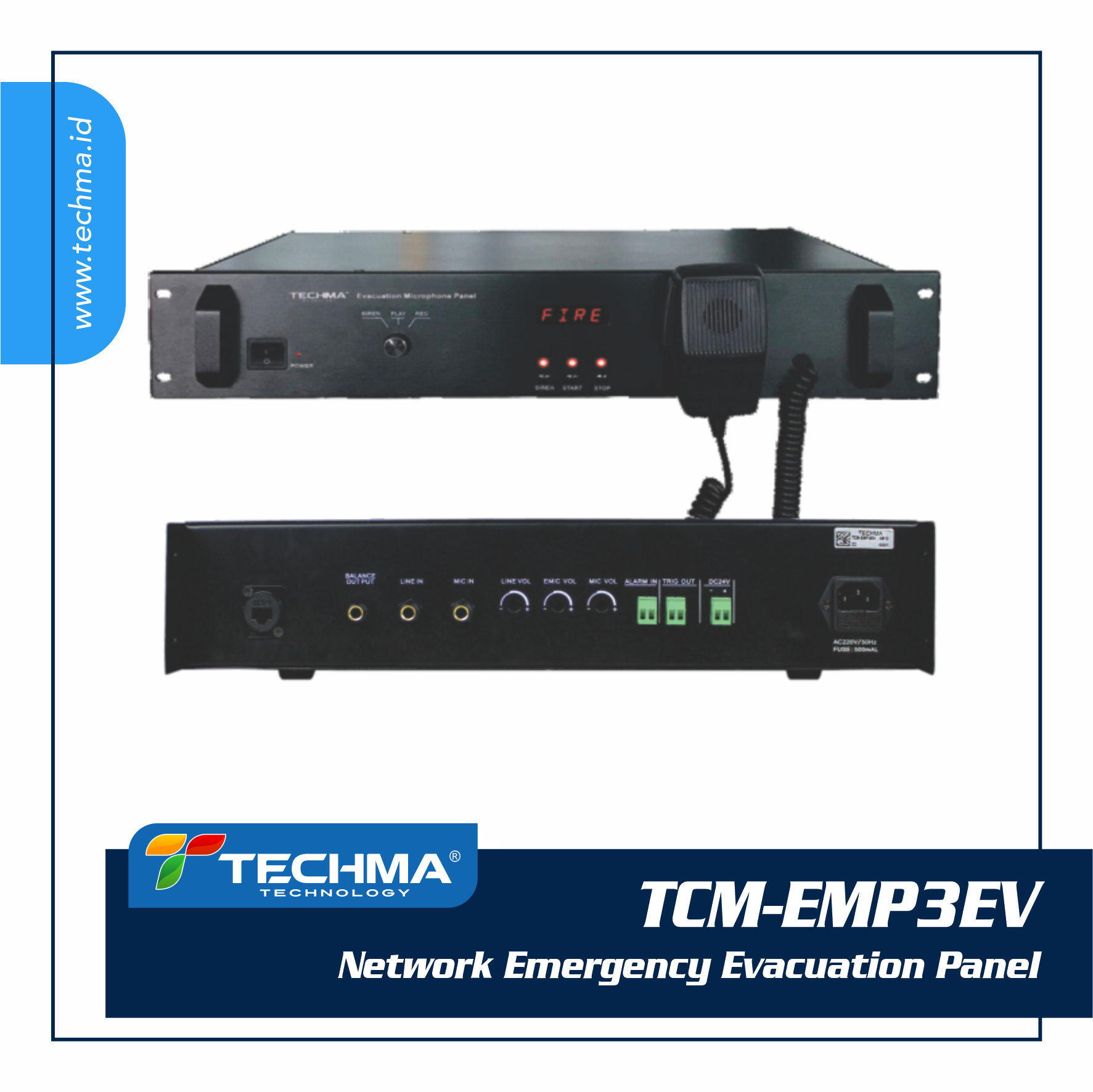

Network Emergency Evacuation Panel
Description
Techma TCM-EMP3EV is a network alarm device that will send an audio broadcast message to an audio device via a LAN network when a fire alarm is active. This device receives a trigger command from the fire alarm panel or other alarm devices. There are default voice messages and voice messages that can be recorded by yourself. How this device works is, when the MCFA panel is active, it will send an alarm trigger to the TCM-EMP3EV and will broadcast an audio voice message to some or all of the installed audio speakers according to the target that has been set. Equipped with PPT Mic to make annoucer, namely when an alarm occurs, officers can provide voice information by pressing PTT. This PTT Mic gets top priority for evacuation, when an alarm is active, by pressing PTT nature will stop and officers can convey information clearly. This device is very good for use for fire systems in buildings or other alarm needs.Compatible with almost all brands of fire alarms
Features
- 100M Tx Network, Rj45 Connector
- Multicast Protocol, TCP/IP, UDP, RTP
- Unlimited audio alarm broadcasting devices target
- Default alarm (siren), & customize audio recording
- Compatible with almost all brands of fire alarms
- 2U rackmount standard
Specification:
| Model | TCM-EMP3EV |
|---|---|
| Network | 100BASE-T, RJ-45 connector |
| Protocol | TCP/IP, UDP, Multicast |
| Alarm Activation Mode | Manual Operation/Alarm Signal |
| Alarm Input | Short Circuit Signal Activation Output |
| Trigger Output | Short Circuit Signal Input from Fire alarm panel |
| Audio Output | SIREN/Play/EMIC2 ≥8mV, Unbalanced |
| Record Input | MIC = 8mV Unbalanced,Line ≥300mV Unbalanced |
| Display | LED Indicator |
| Power Requirement | <10W |
| Power Consumption | AC 220 -240V / DC 24VDC/500MA |
| Working Temperature | -10 to +55°C |
| Built-in Dimensions | 2U Rack 19-inch |
| Dimensions | 89mm x 483mm x 366mm |
| Weight | 3.5kg |
