Network Matrik Alarm Panel
Description

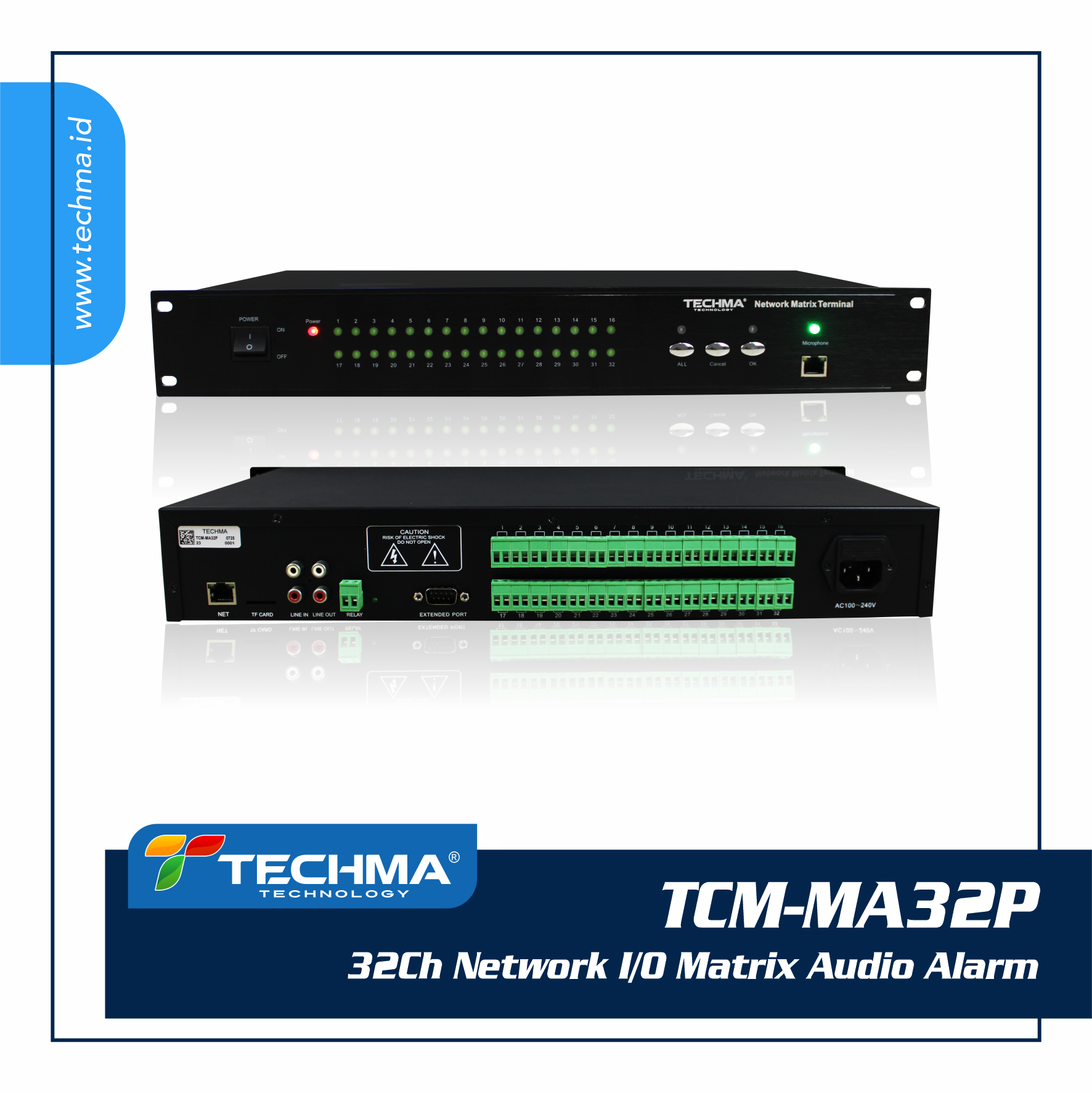

Techma TCM‑MA32 is a digital alarm terminal matrix device as a bridge between external alarms such as CCTV, fire alarm panic button, etc. There are 32 alarm inputs that can be triggered by VMS CCTV software, DVR, DVR, Fire alarm, etc. Each alarm input can be filled with different audio, and can be sent to some or several speakers according to the target via the LAN network.The TCM‑MA32 audio source is via the TCM‑BGM5000 broadcast audio server, where the audio will be uploaded and broadcast according to the target speaker.This system is very suitable for the implementation of AI CCTV, which can detect not wearing a mask, not wearing PPE, not wearing a helmet, prohibited areas, or other areas that require alarm integration to the speaker audio
Features
- Tx 100M Network, Rj45 Connector
- Multicast Protocol, TCP/IP, UDP, RTP
- 32 short circuit alarm inputs, with 32 different audio
- 1 short circuit alarm output
- VMS CCTV software, DVR, NVR, Audio fire alarm trigger by I/O
- Audio alarm broadcast via LAN network

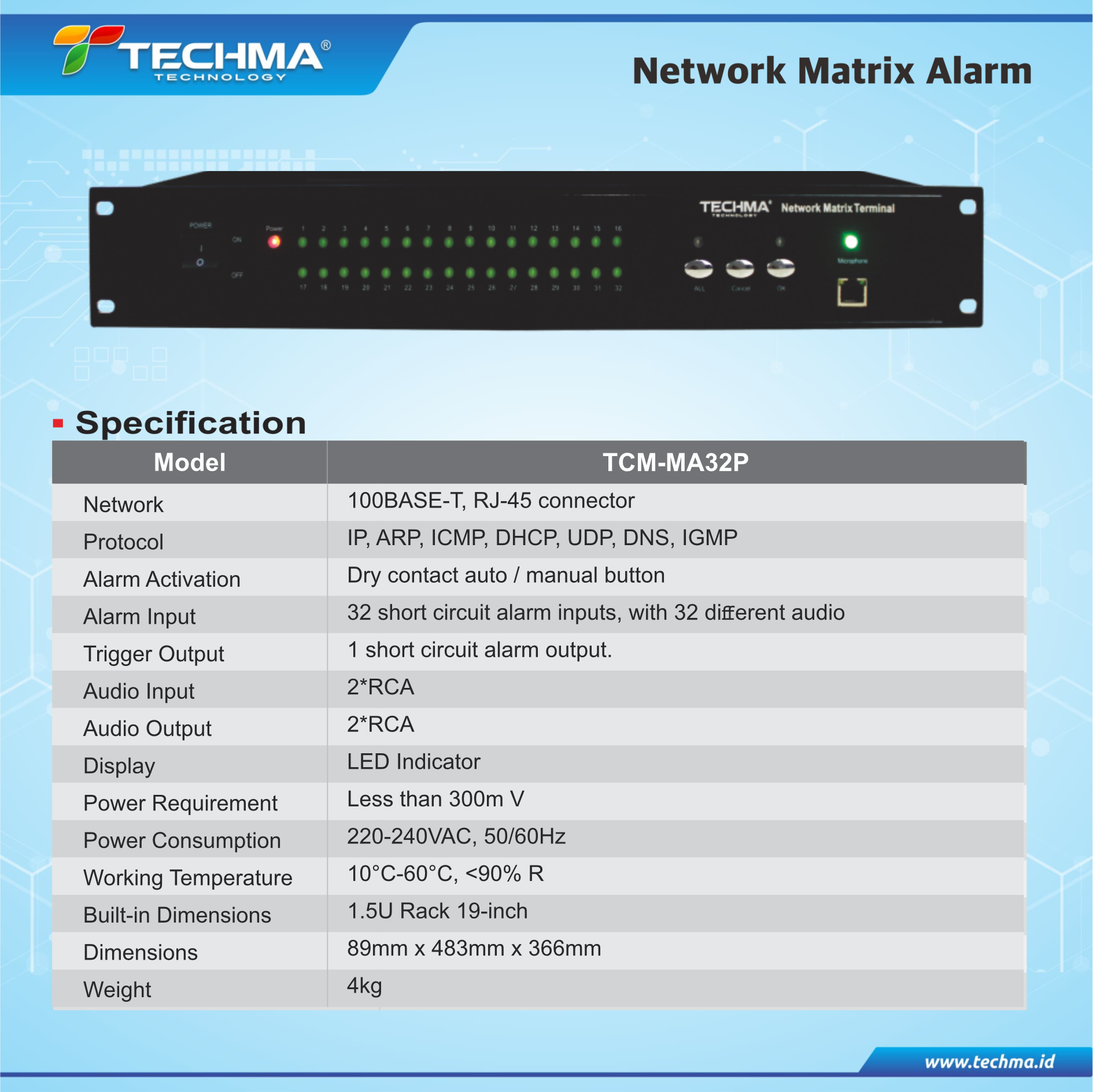

Specification:
| Model | TCM-MA32P |
|---|---|
| Network | 100BASE-T, RJ-45 connector |
| Protocol | IP, ARP, ICMP, DHCP, UDP, DNS, IGMP |
| Alarm Activation | Dry contact auto / manual button |
| Alarm Input | 32 short circuit alarm inputs, with 32 different audio |
| Trigger Output | 1 short circuit alarm output. |
| Audio Input | 2*RCA |
| Audio Output | 2*RCA |
| Display | LED Indicator |
| Power Requirement | Less than 300m V |
| Power Consumption | 220-240VAC, 50/60Hz |
| Working Temperature | 10°C-60°C, <90% R |
| Built-in Dimensions | 1.5U Rack 19-inch |
| Dimensions | 89mm x 483mm x 366mm |
| Weight | 4kg |
