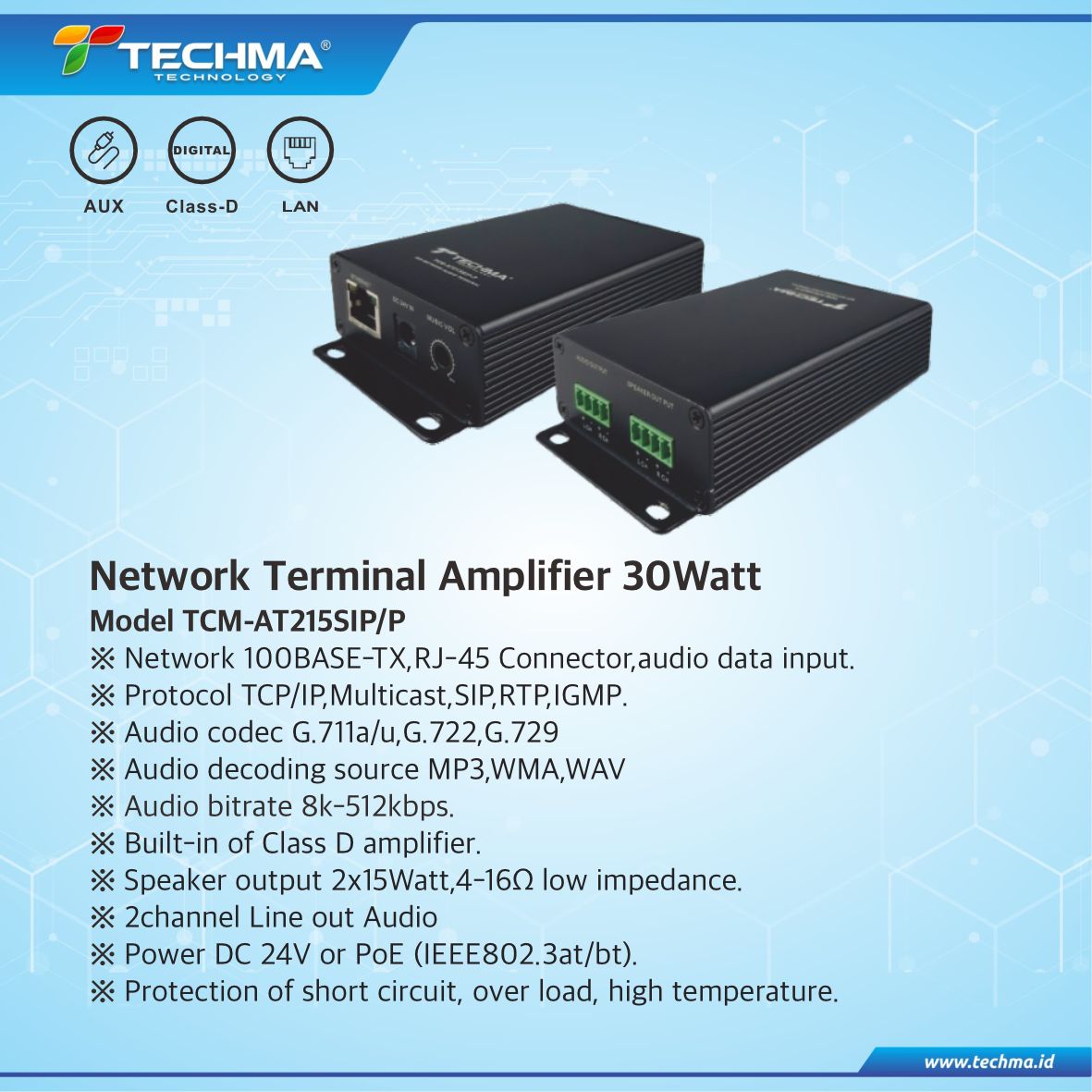

Network Terminal Amplifier 30W
Description
The TCM‑AT215SIP/P is an IP Power Amplifier designed for background music, paging announcers, PAGA Alarms, and public address system installations. It is an exceptional value, loaded with features, and easy to install in a variety of system designs. The TCM-AT215SIP/P can also be used to convert from analog audio to IP audio systems. Easy Remote configuration, operation & monitoring.
Features
- Network 100BASE-TX,RJ-45 Connector.
- Protocol TCP/IP,Multicast,SIP,RTP, IGMP
- Audio codec G.711a/u, G.722,G.729
- RJ-45 Connector digital data audio input.
- Built-in of Class D amplifier max.4 Speaker
- 2 Channel Speaker output 2x15Watt, 4-16Ω low impedance
- 2 Channel Audio output total 4 speaker
- Local & Remote Individual volume controller
- Protection of short circuit, over load, high temperature
Spesification
Specification:
| Model | TCM-AT215SIP/P |
|---|---|
| Rated Power | 2 x 15Watt |
| Network | 100BASE-TX, Auto MDI/MDI-X, RJ-45 connector |
| Network Protocol | TCP/IP, UDP, Multicast, SIP, RTP, RTCP, ARP, ICMP, IGMP |
| Audio Codec | PCMU (G.711u), PCMA (G.711a), G.722, G.729 |
| Audio Input | RJ-45 connector,RS232 Optional |
| Speaker Output Mode | Low impedance 4~16ohm, 2 Channel Phoenix terminal |
| Auxiliary Output | 0.775V (0dB) , 2 channel Phoenix terminal |
| Frequency Response | 60Hz~20KHz (±3dB) |
| Audio Decoding Source | MP3,WMA,WAV |
| Audio bit rate | 8Kbps ~ 320Kbps |
| Output Attenuator | Local & Remote volume control |
| Output Adjustment | <3dB |
| Power Supply | DC24V or PoE 802.3bt (60watt) |
| Operating Temperature | -10°C ~ 65°C |
| Power Consumption | 45Watt |
| Dimension & Form Factor | 100x66x26 mm, Wall Mounted |
| Net Weight | Approx 1kg |
